Installation Procedure

  1. Install the front seat memory switch assembly to the front trim panel by pressing into place until fully seated.
  2. Connect the electrical connector to the front seat memory switch assembly.
  3. Install the front trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR REPAIR INSTRUCTIONS in Doors.

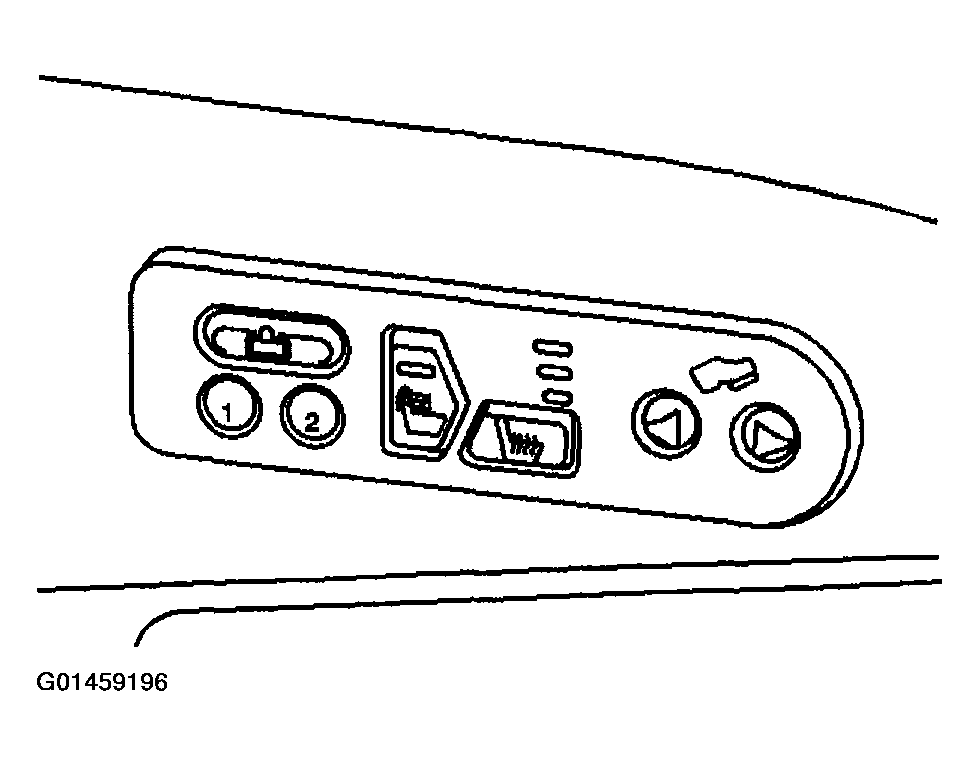

    Fig 1: Installing Front Seat Memory Switch Assembly
    G01459196Courtesy of GENERAL MOTORS CORP.
