ABS Component Views

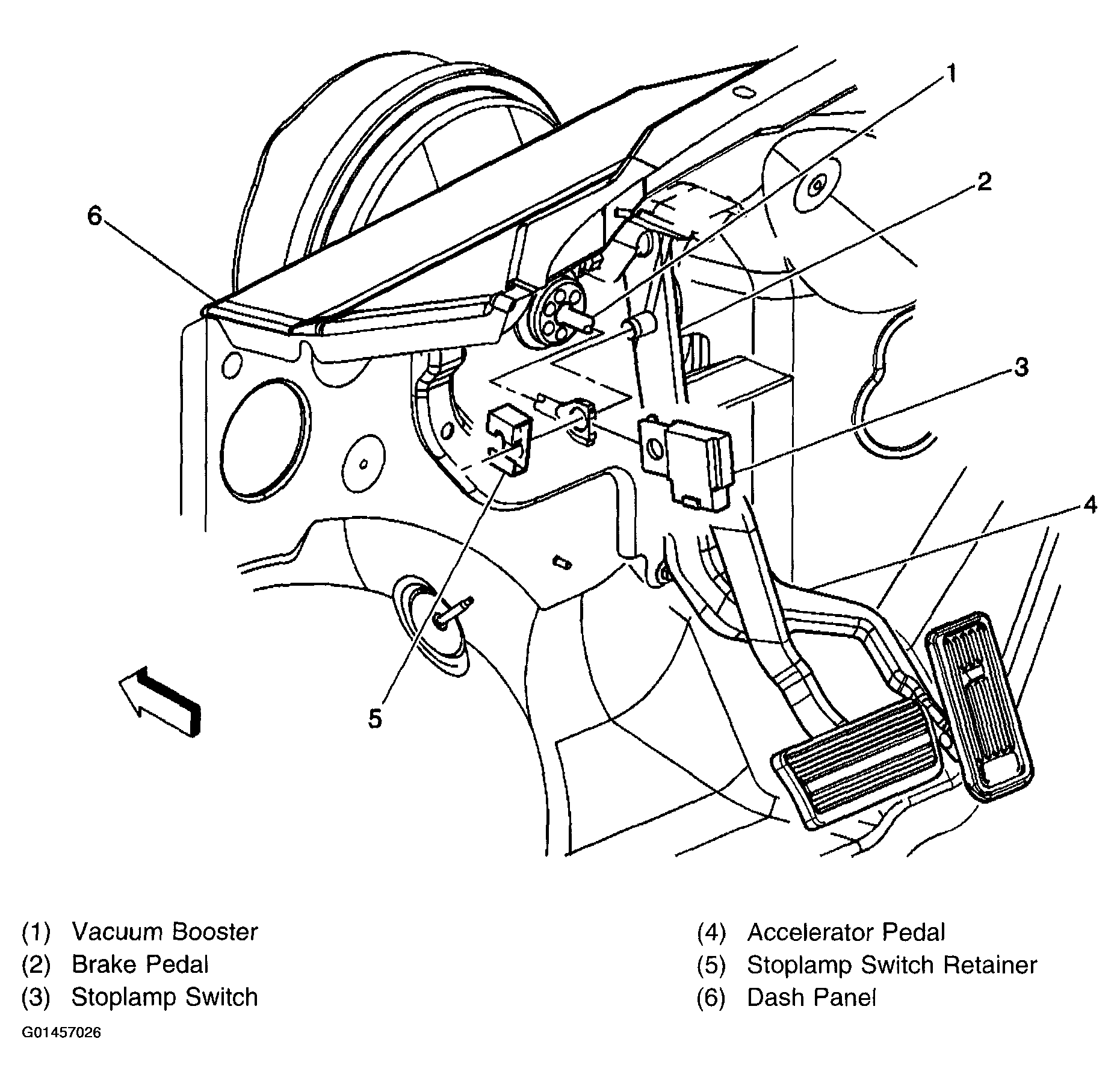

Fig 1: ABS Component Views - Brake Pedal Components

Courtesy of GENERAL MOTORS CORP.

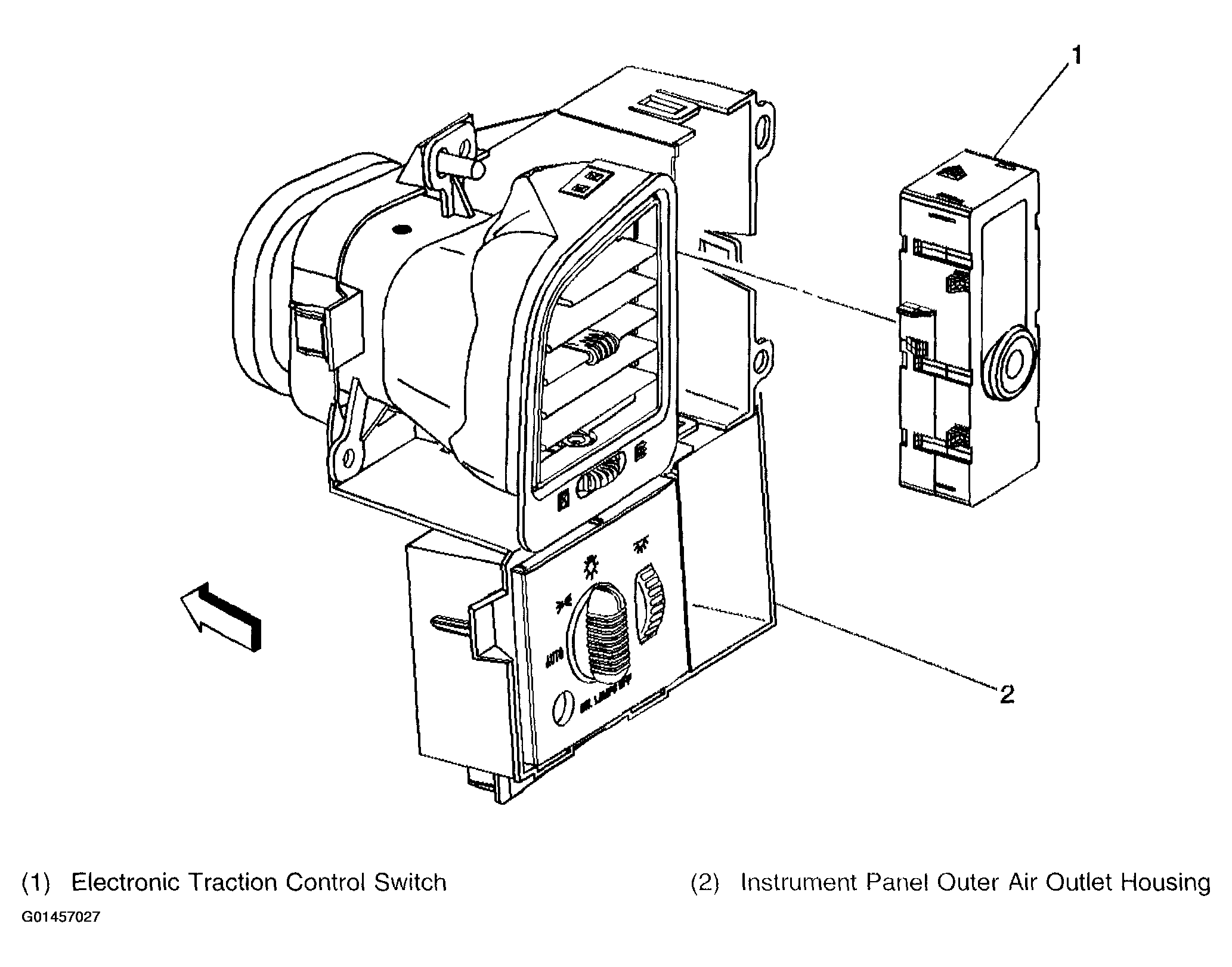

Fig 2: ABS Component Views - Electronic Transaction Control Switch

Courtesy of GENERAL MOTORS CORP.

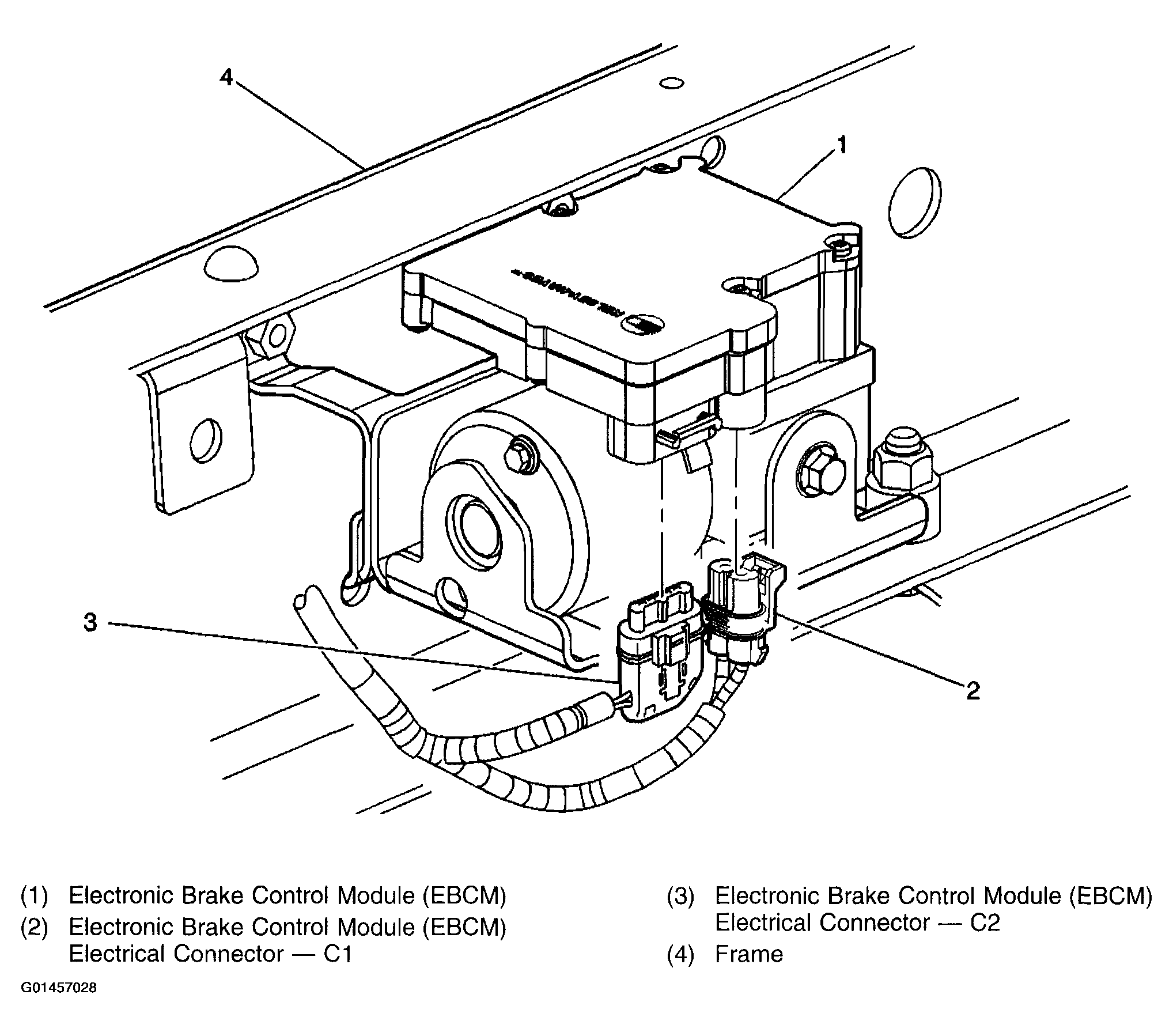

Fig 3: ABS Component Views - Left Side Frame Rail - EBCM

Courtesy of GENERAL MOTORS CORP.

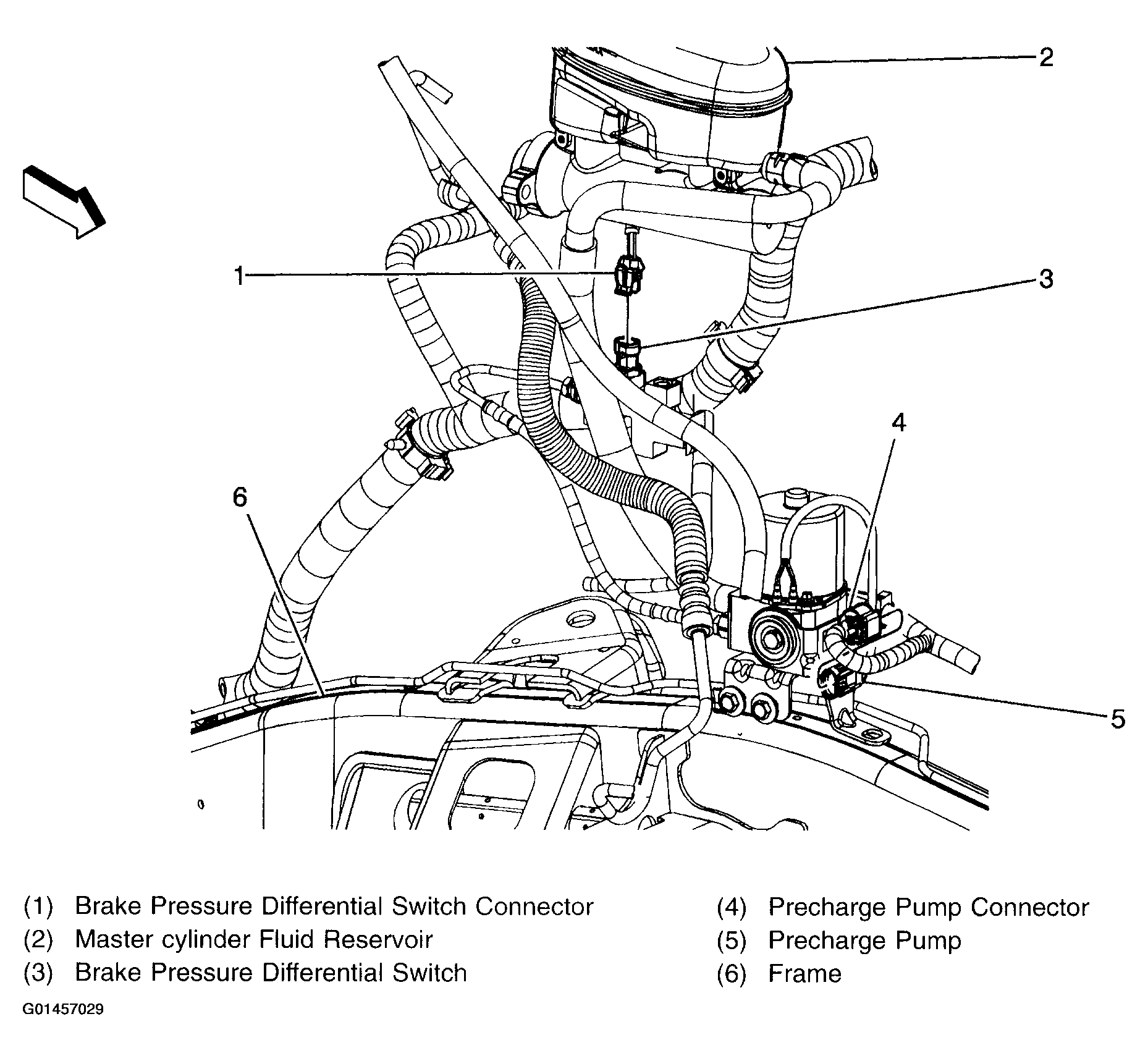

Fig 4: ABS Component Views - Precharge Pump (JL4)

Courtesy of GENERAL MOTORS CORP.

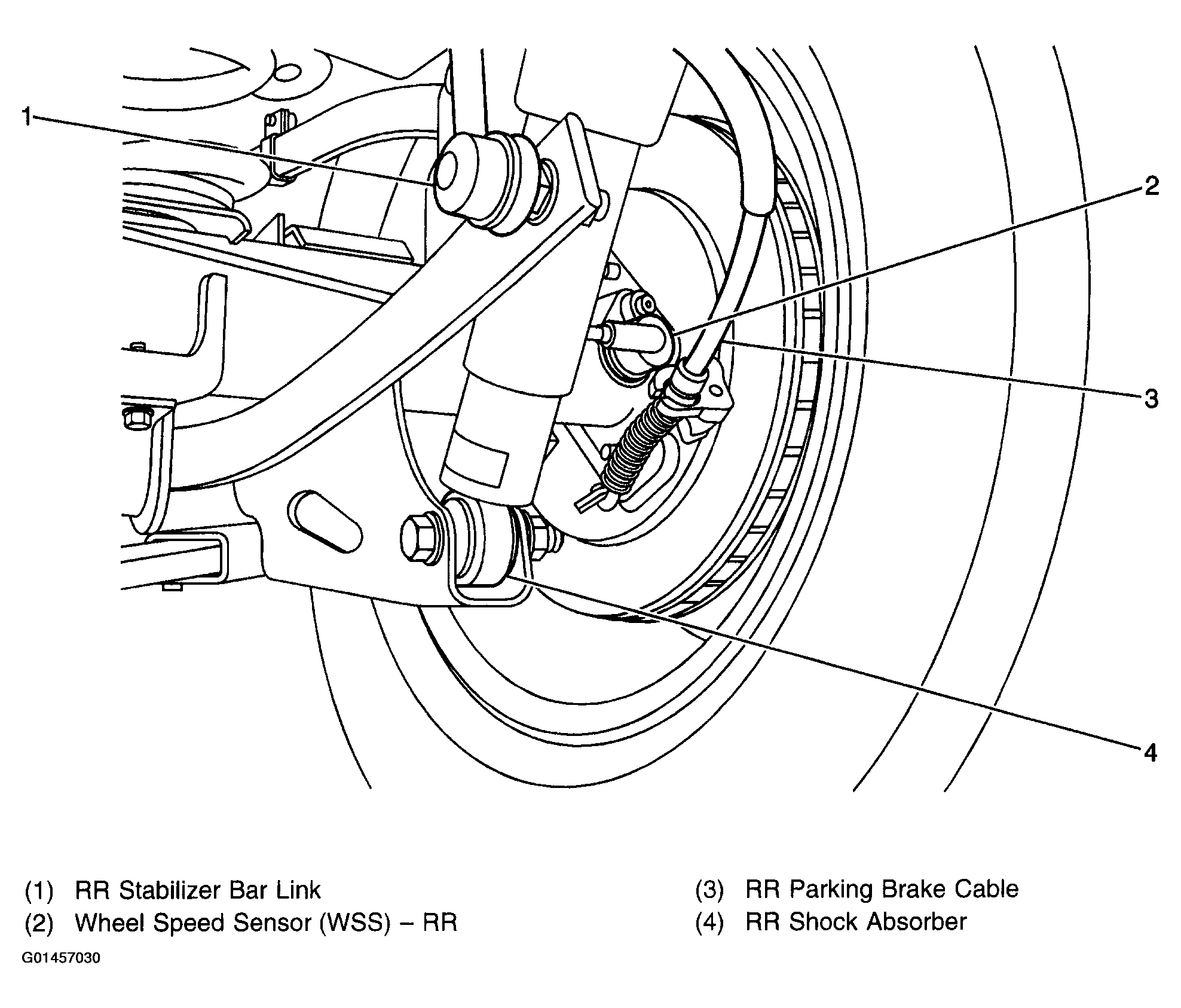

Fig 5: ABS Component Views - RR Suspension

Courtesy of GENERAL MOTORS CORP.

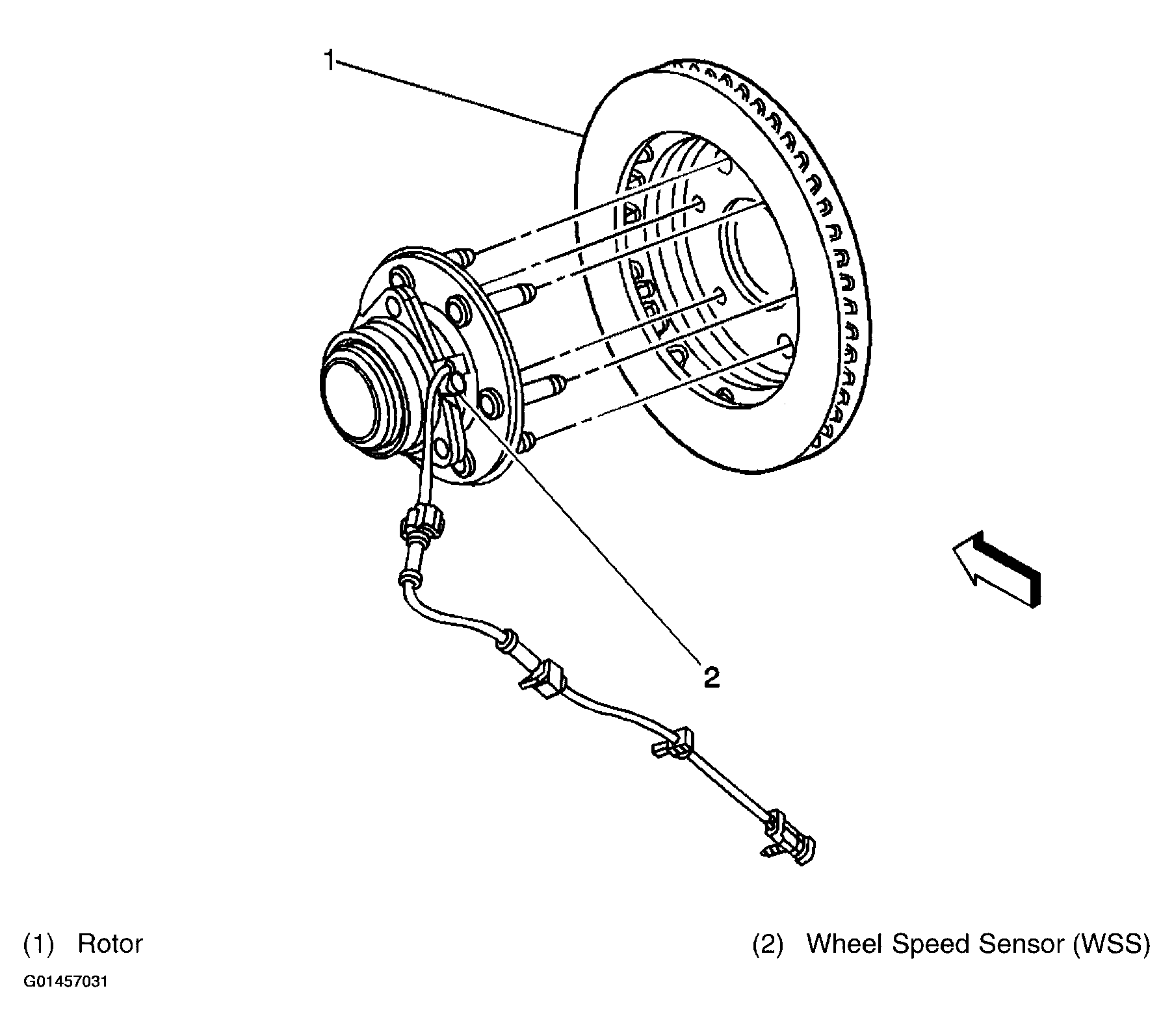

Fig 6: ABS Component Views - Wheel Speed Sensor - RF (2WD)

Courtesy of GENERAL MOTORS CORP.

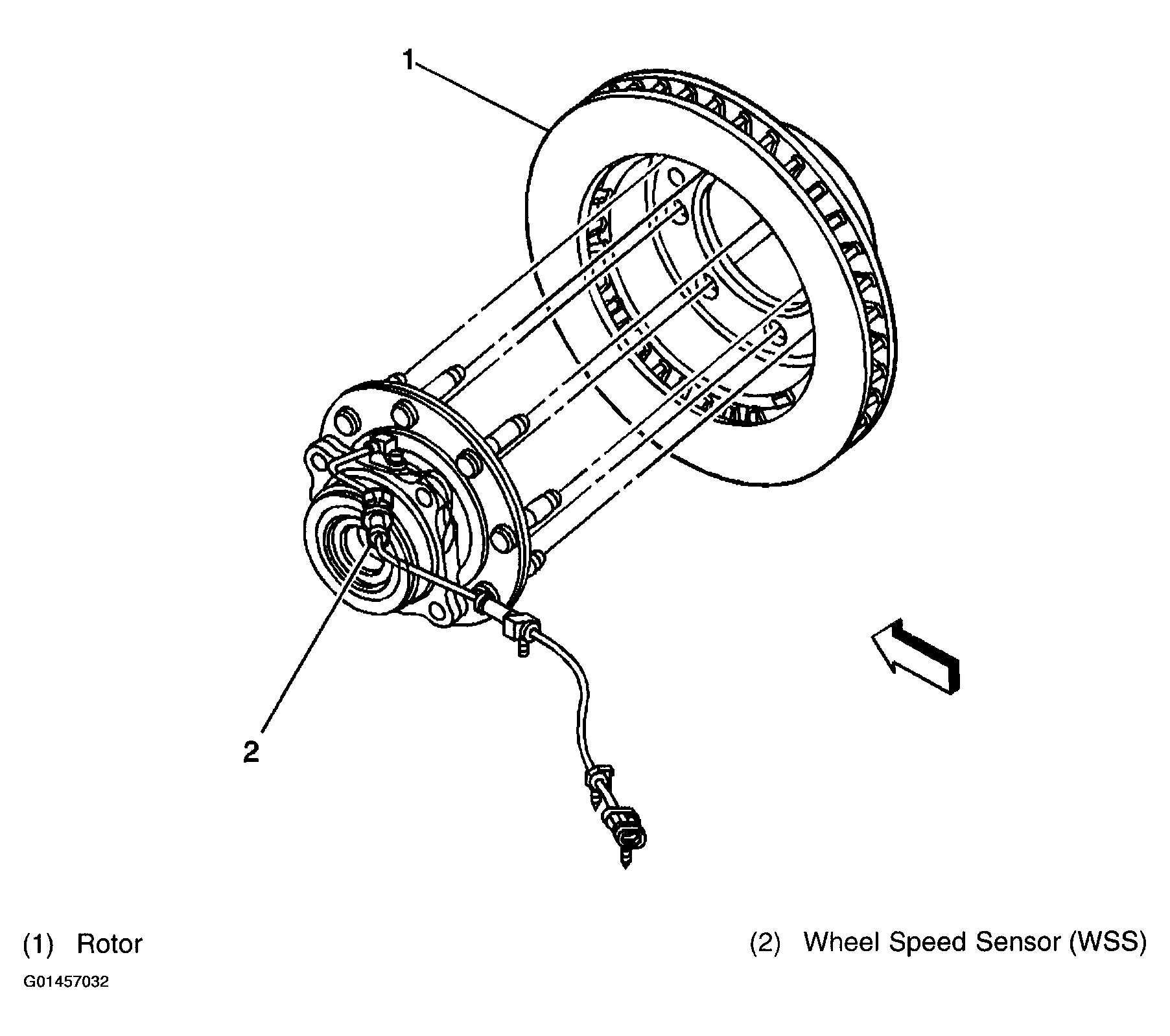

Fig 7: ABS Component Views - Wheel Speed Sensor - RF (4WD)

Courtesy of GENERAL MOTORS CORP.

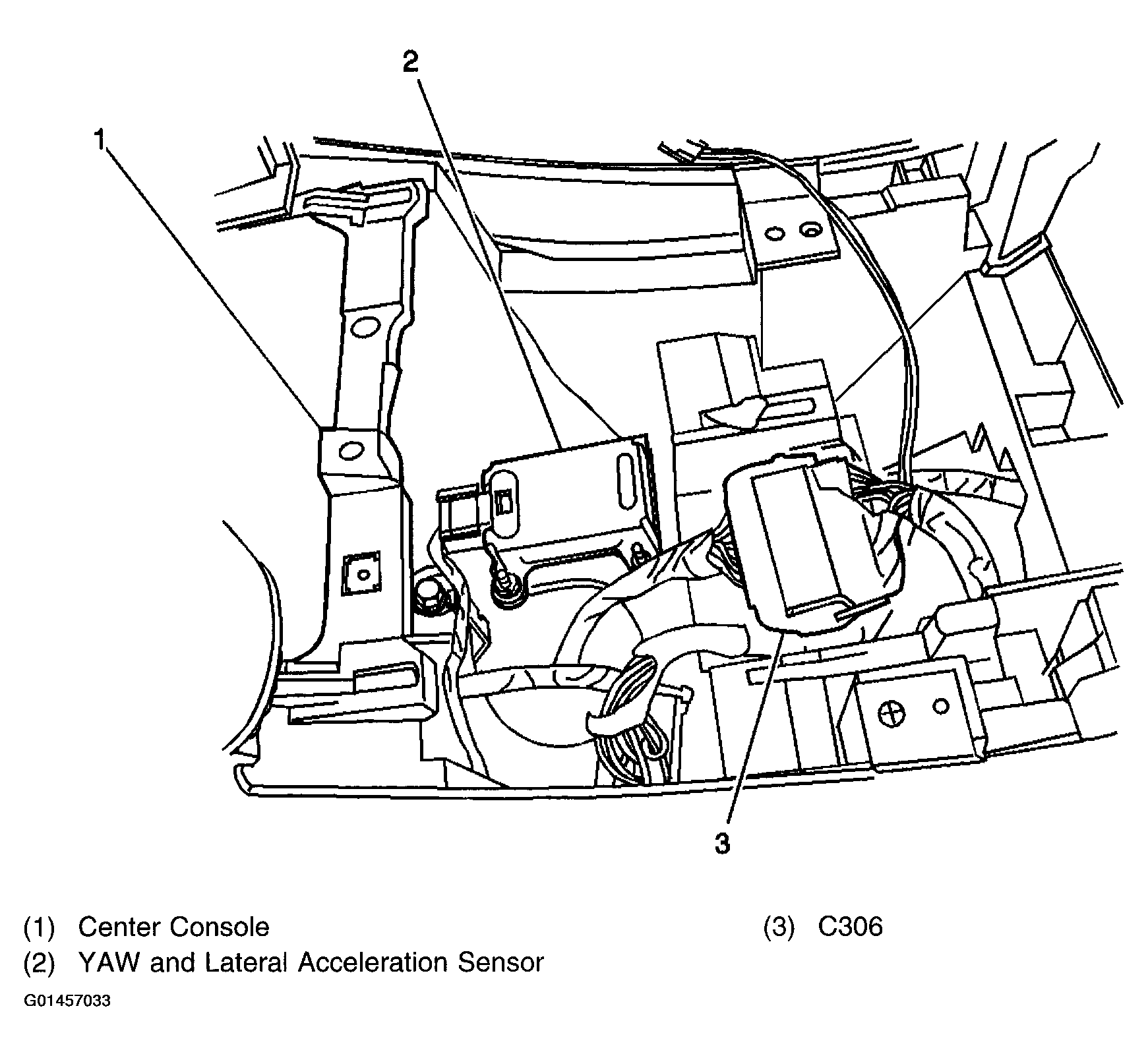

Fig 8: ABS Component Views - YAW And Lateral Acceleration Sensor (Escalade)

Courtesy of GENERAL MOTORS CORP.

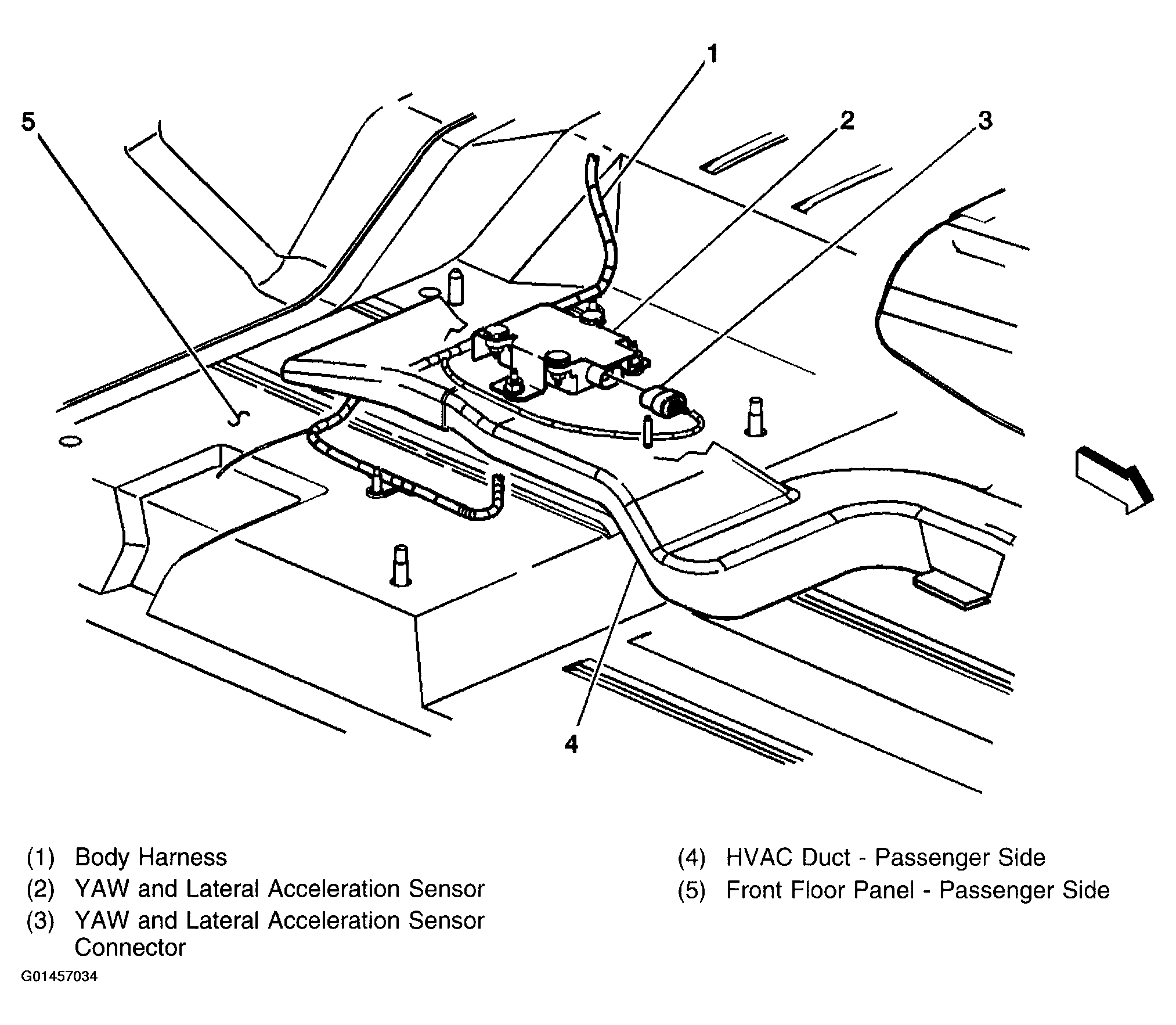

Fig 9: ABS Component Views - YAW And Lateral Acceleration Sensor (Escalade EXT)

Courtesy of GENERAL MOTORS CORP.
