ABS Connector End Views

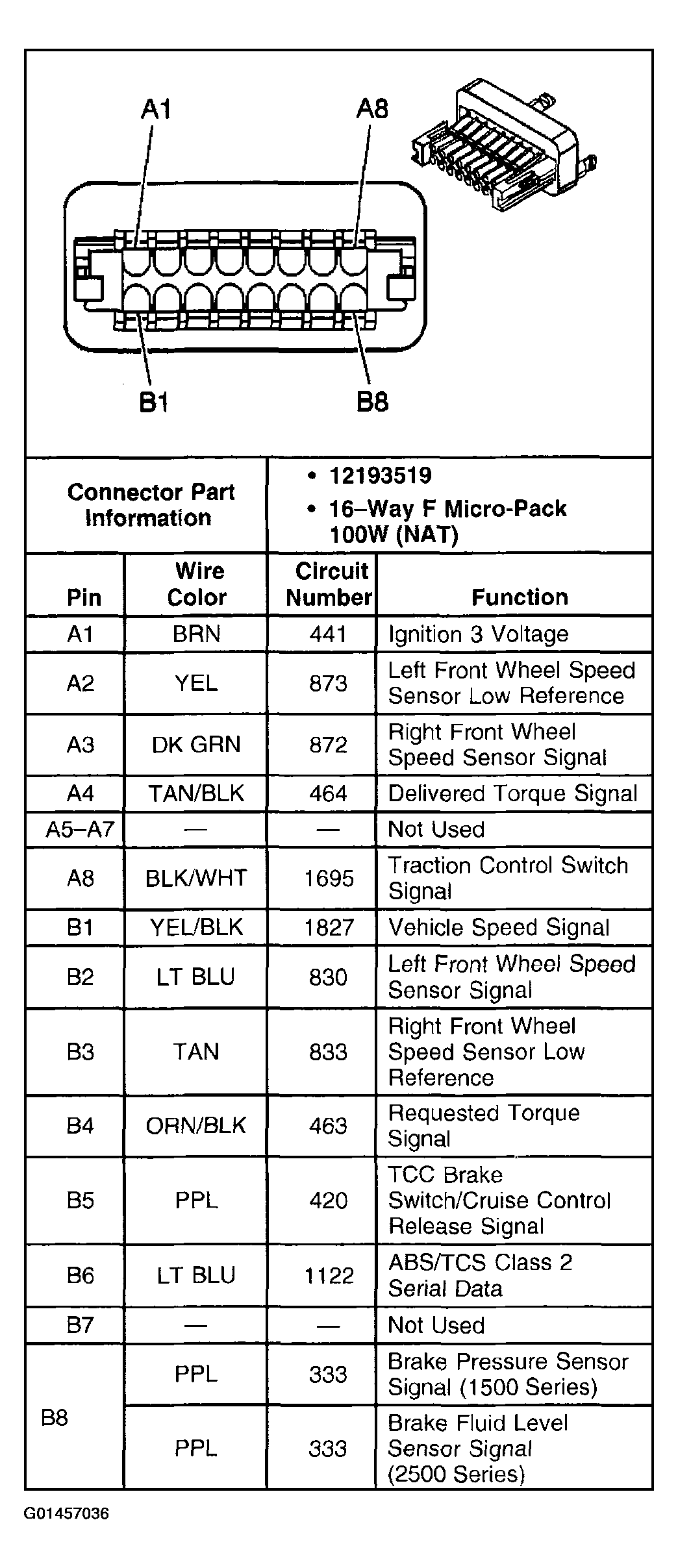

Fig 1: Identifying Electronic Brake Control Module (EBCM) - C1 (w/o JL4) Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Electronic Brake Control Module (EBCM )- C2 (w/o JL4) Terminals

Courtesy of GENERAL MOTORS CORP.

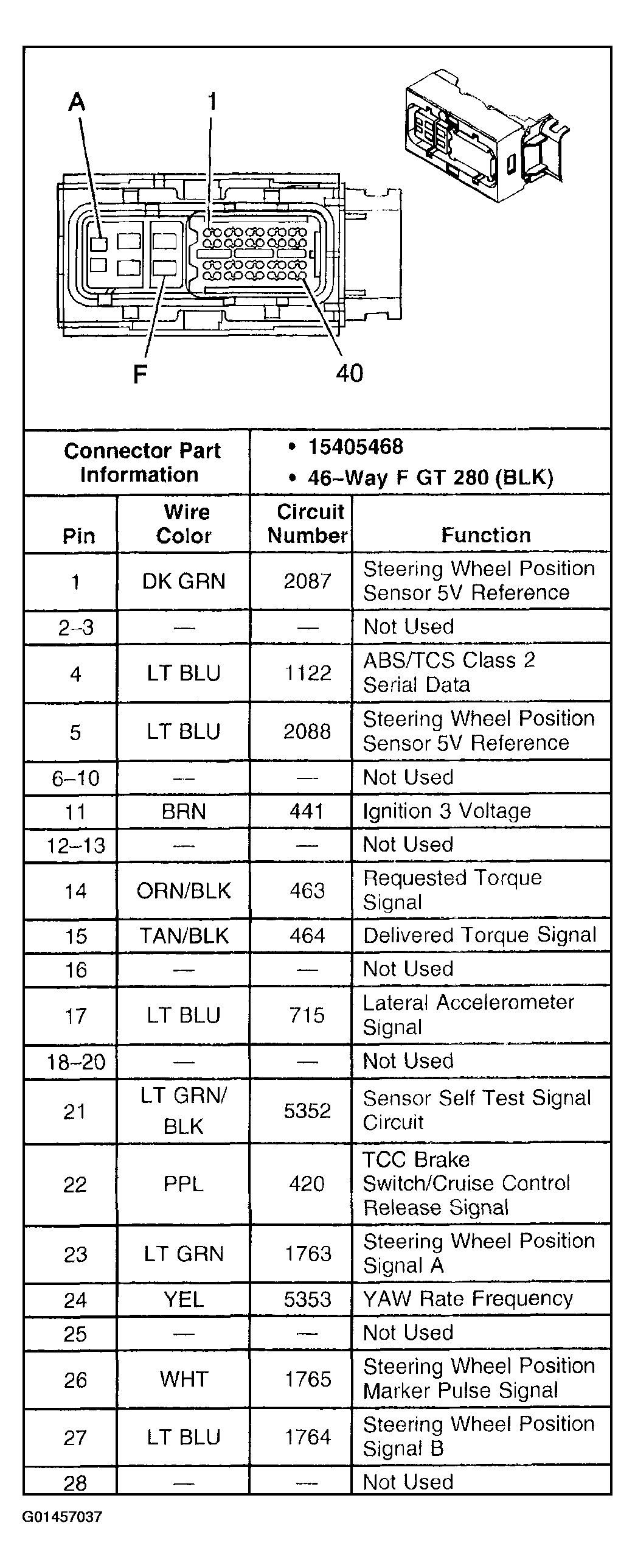

Fig 3: Identifying Electronic Brake Control Module (EBCM) (w/JL4) Terminals (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

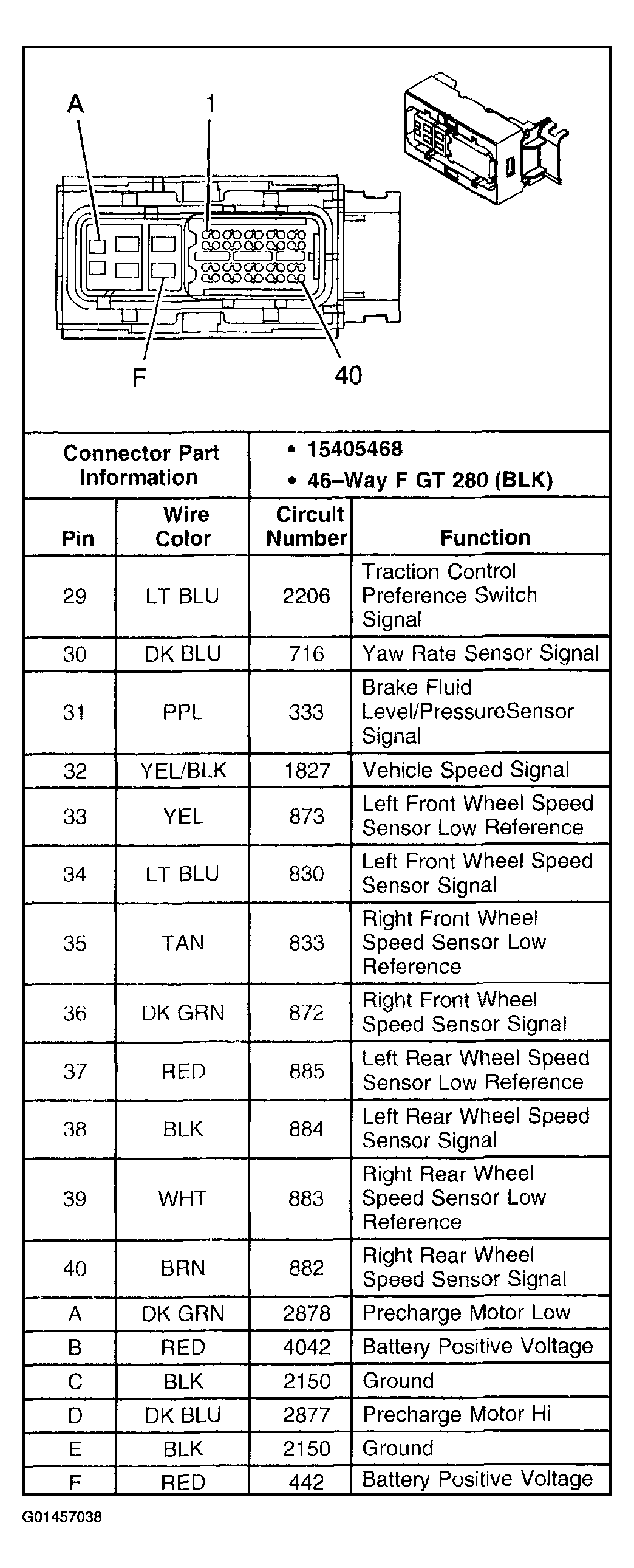

Fig 4: Identifying Electronic Brake Control Module (EBCM) (w/JL4) Terminals (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

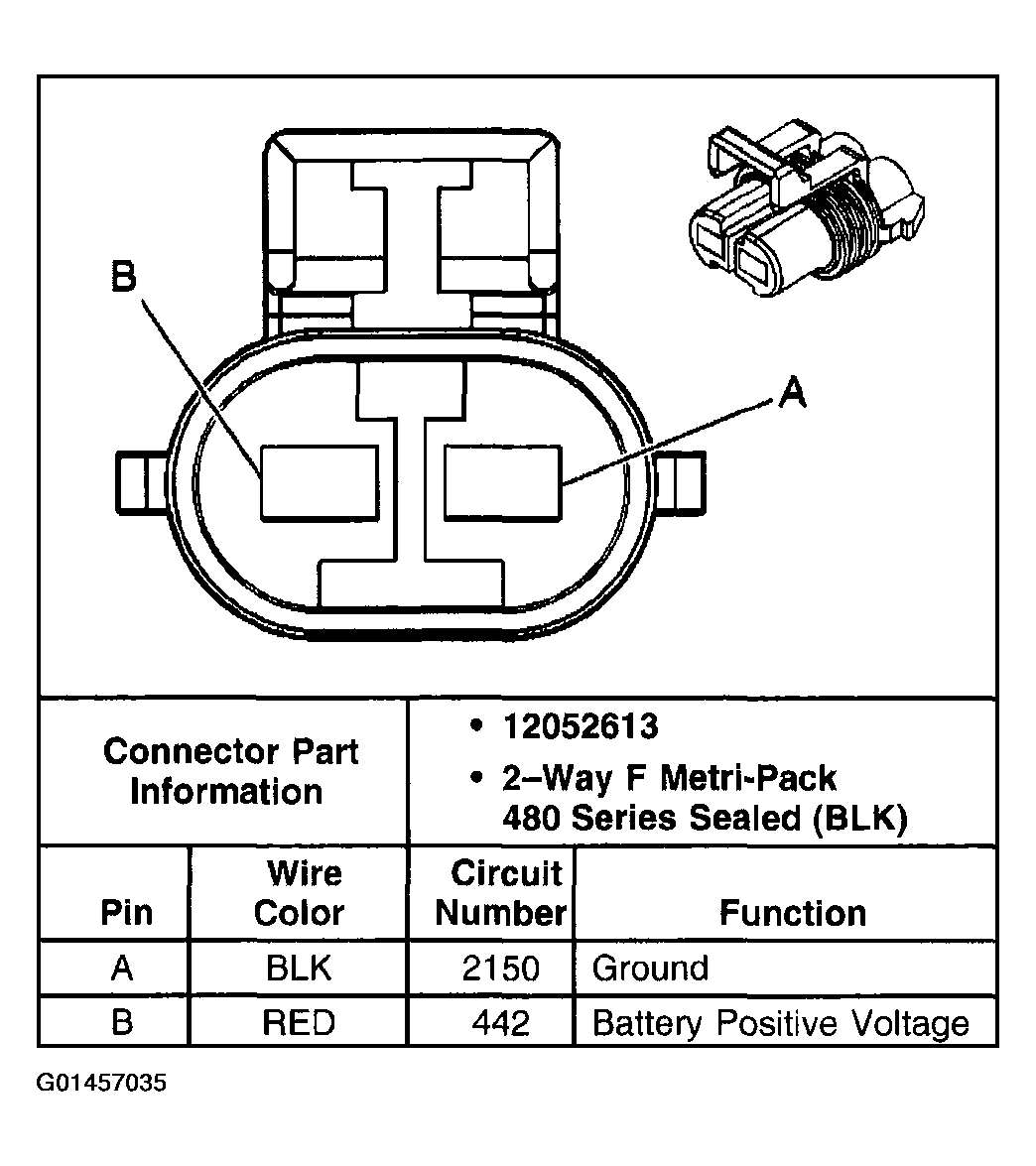

Fig 5: Identifying Precharge Motor Assembly Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying Traction Control Switch (w/o JL4) Terminals

Courtesy of GENERAL MOTORS CORP.

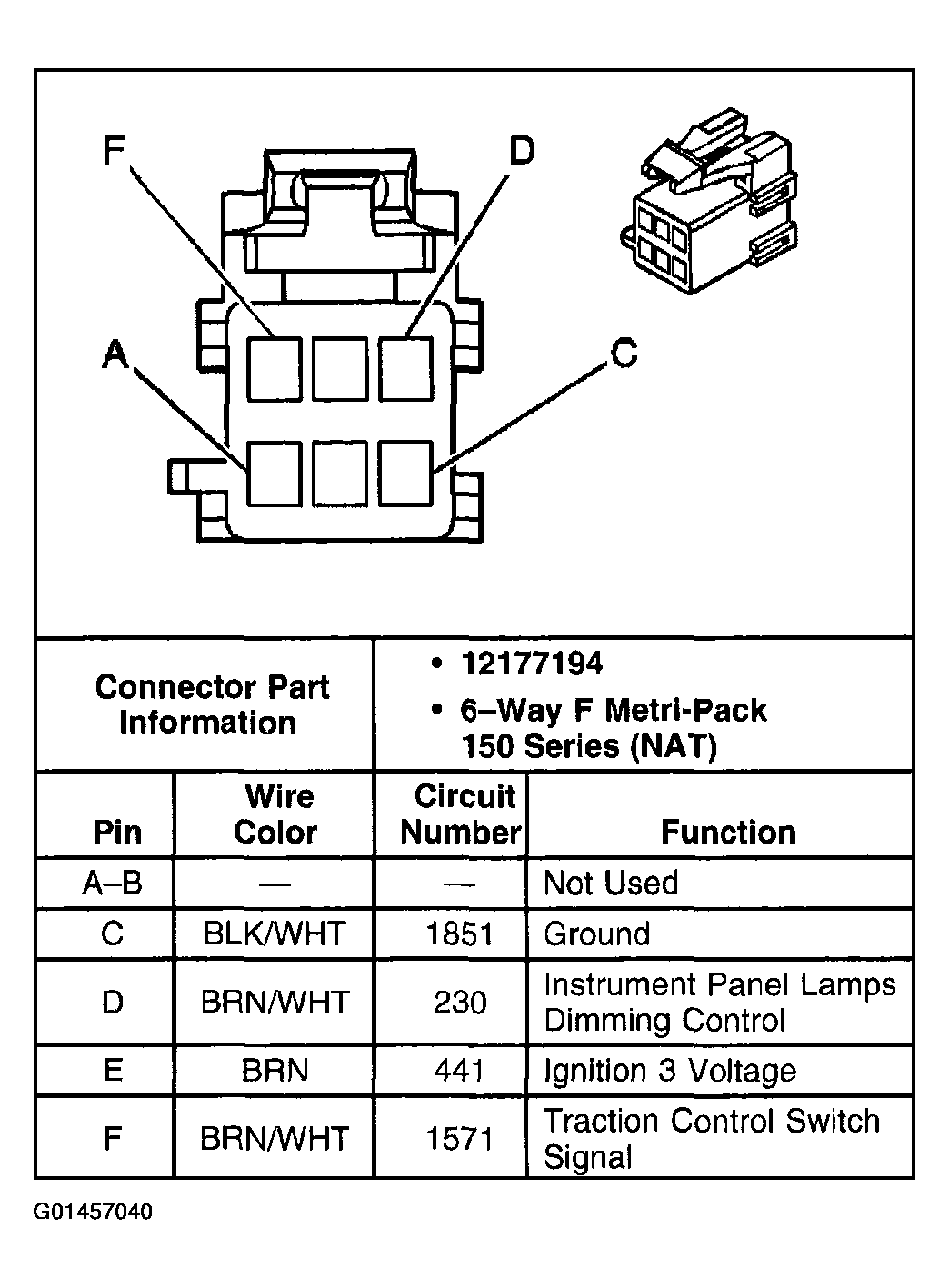

Fig 7: Identifying Traction Control Switch (w/JL4) Terminals

Courtesy of GENERAL MOTORS CORP.

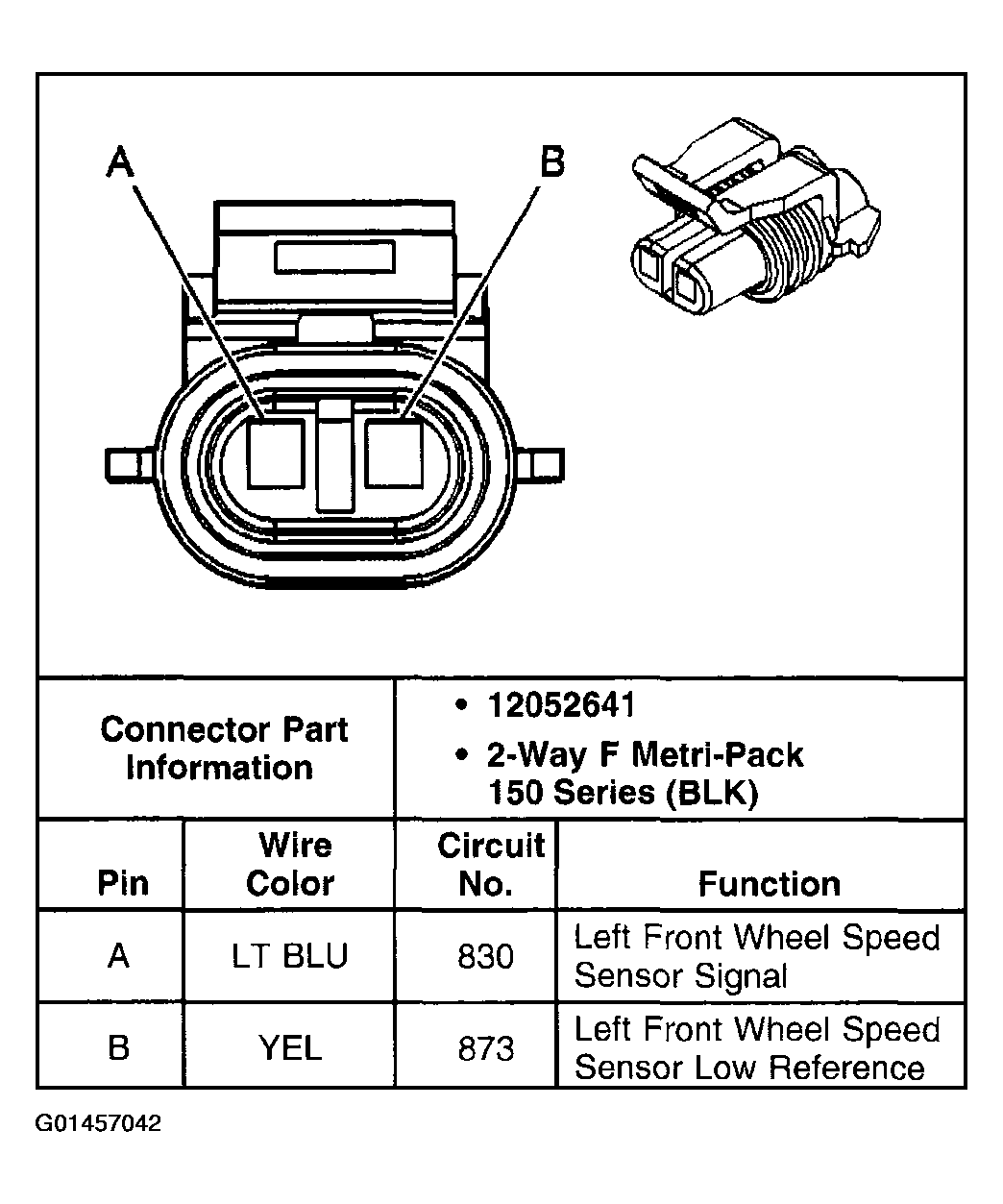

Fig 8: Identifying Wheel Speed Sensor (WSS) - LF Terminals

Courtesy of GENERAL MOTORS CORP.

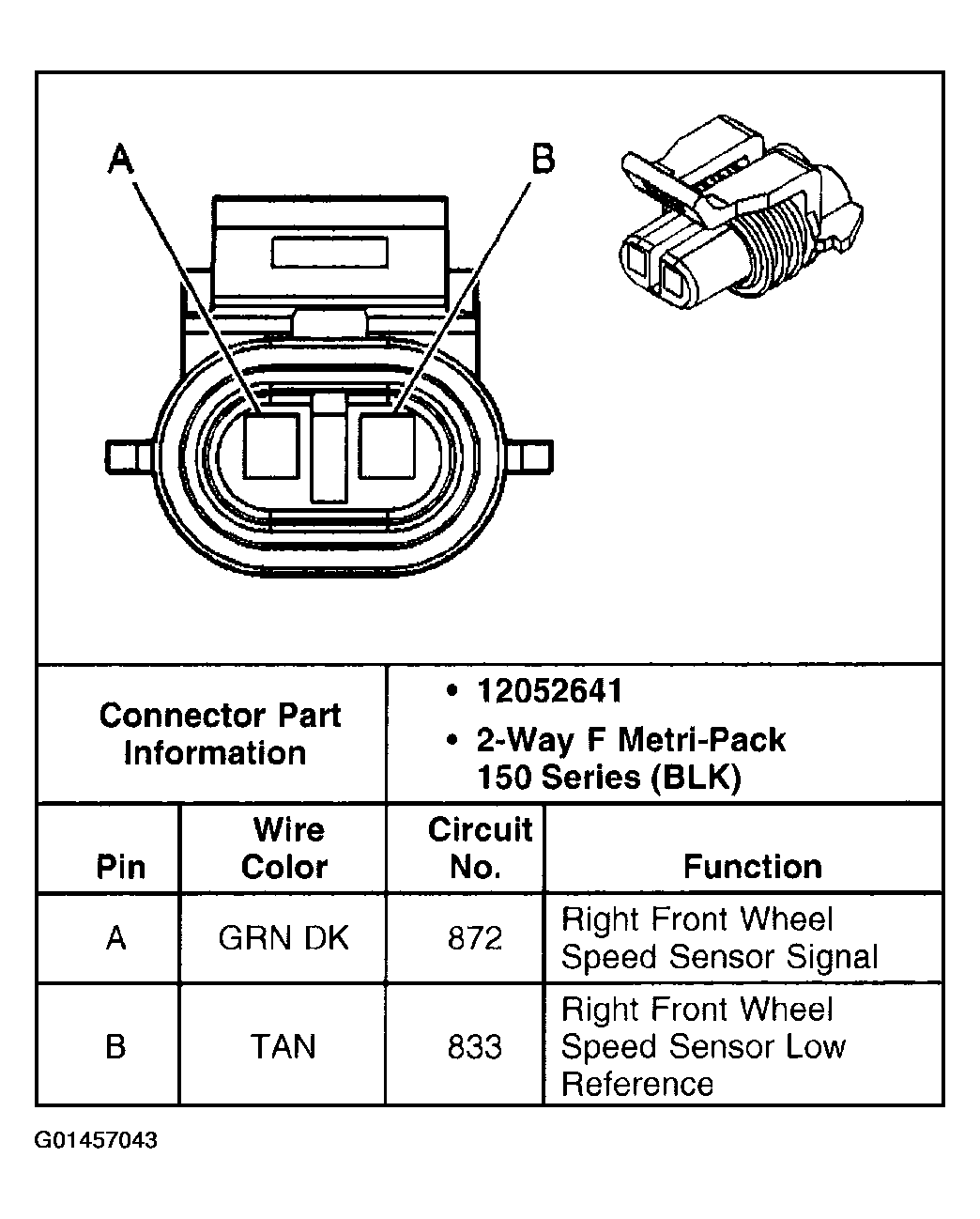

Fig 9: Identifying Wheel Speed Sensor (WSS) - RF Terminals

Courtesy of GENERAL MOTORS CORP.

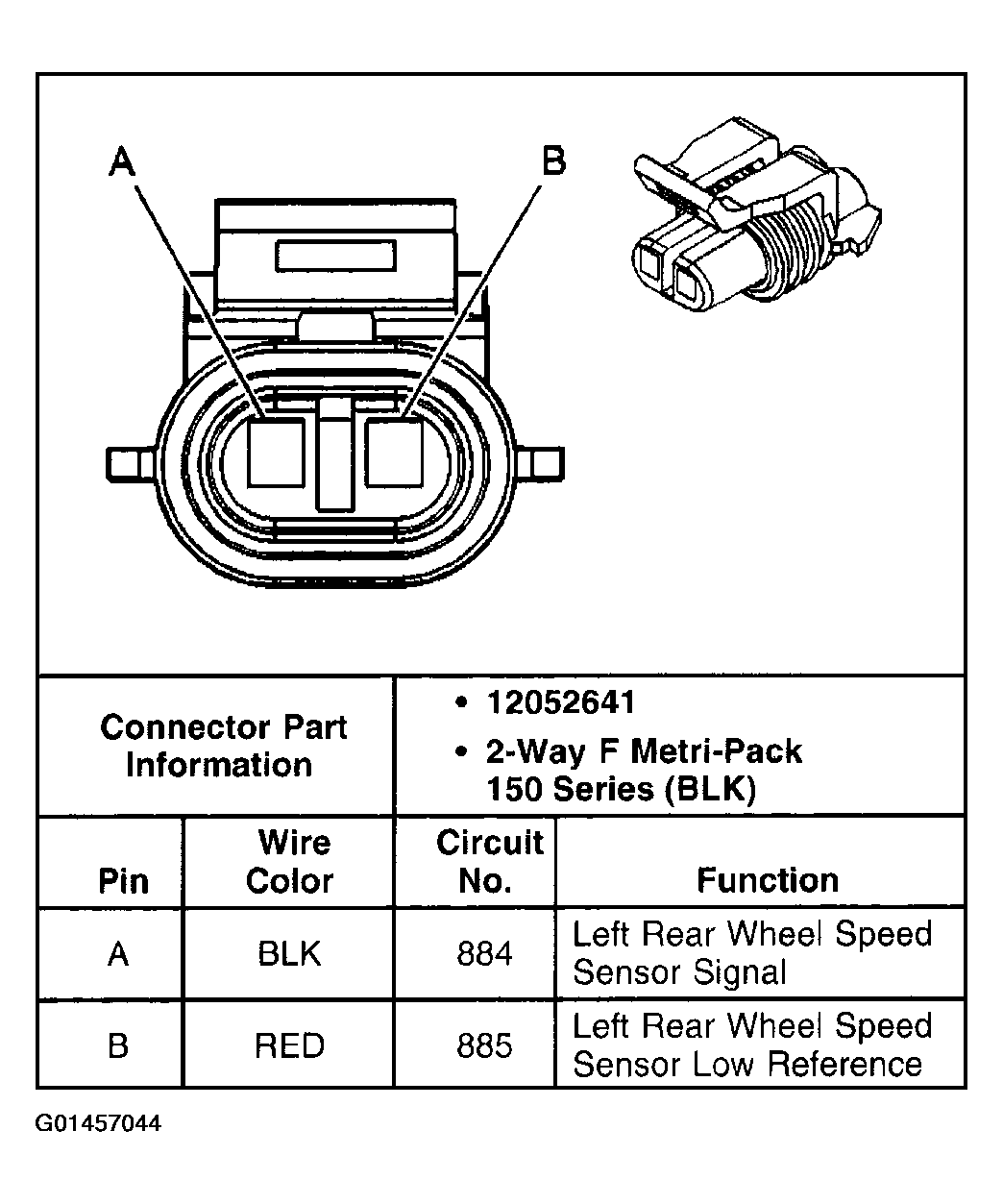

Fig 10: Identifying Wheel Speed Sensor (WSS) - LR (w/JL4) Terminals

Courtesy of GENERAL MOTORS CORP.

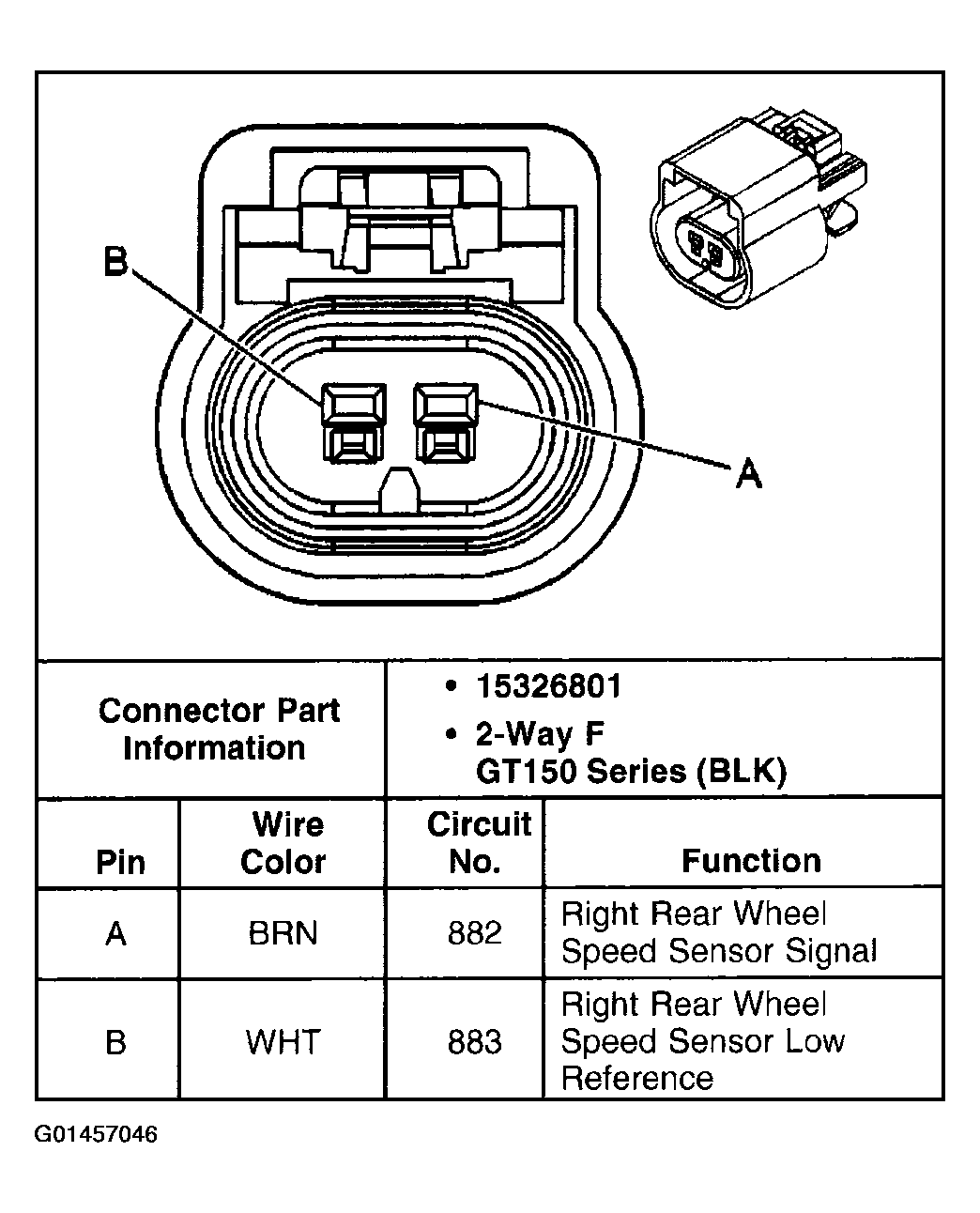

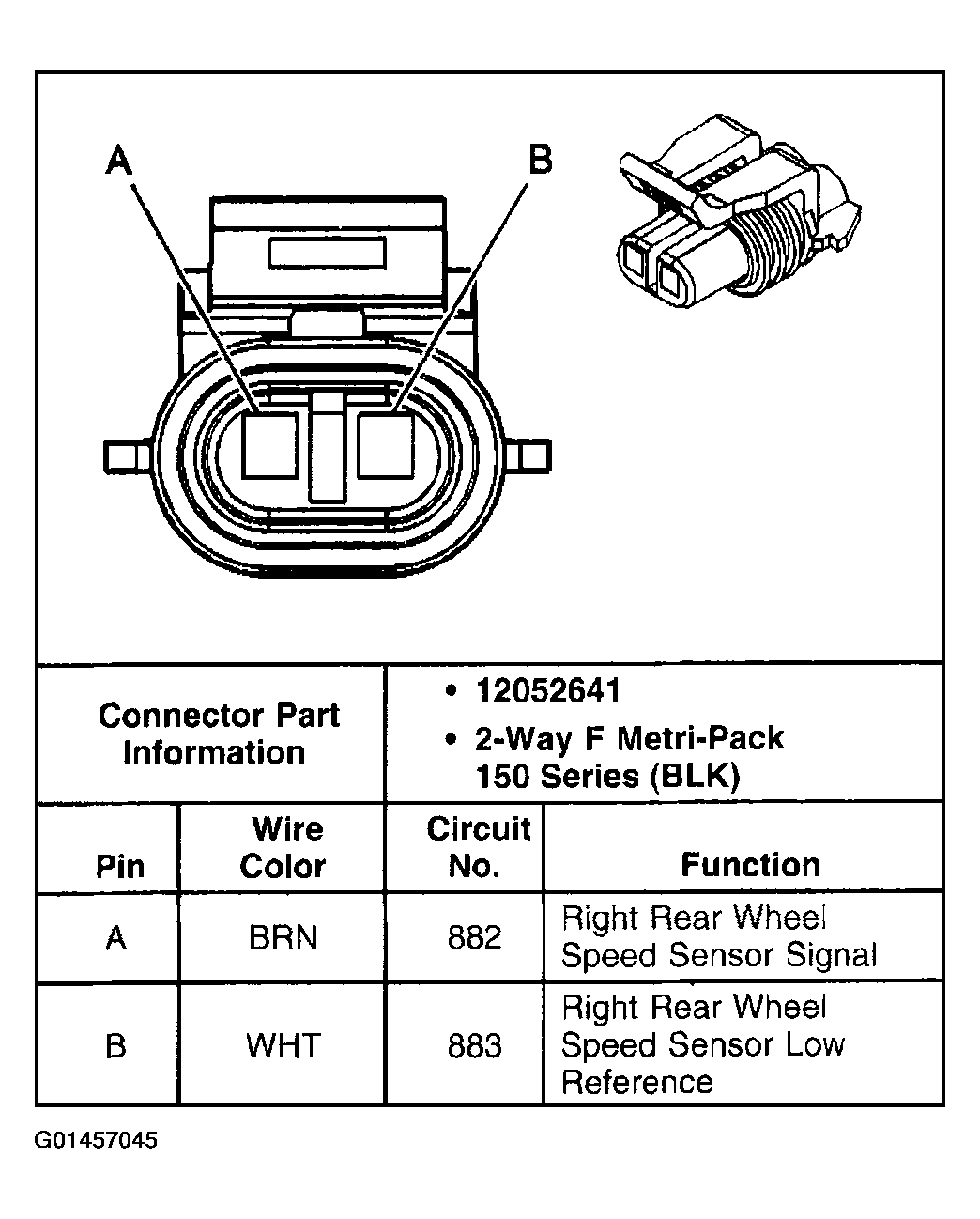

Fig 11: Identifying Wheel Speed Sensor (WSS) - RR (10 Series w/JL4) Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 12: Identifying Wheel Speed Sensor (WSS) - RR (20 Series w/JL4) Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 13: Identifying YAW And Lateral Acceleration Sensor Terminals

Courtesy of GENERAL MOTORS CORP.
