Removal Procedure

  1. Remove the instrument panel (I/P) bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel, Gages and Console.
  2. Gently lift the switch retaining tabs (1) and remove the traction control switch (2) from the I/P assembly (3).

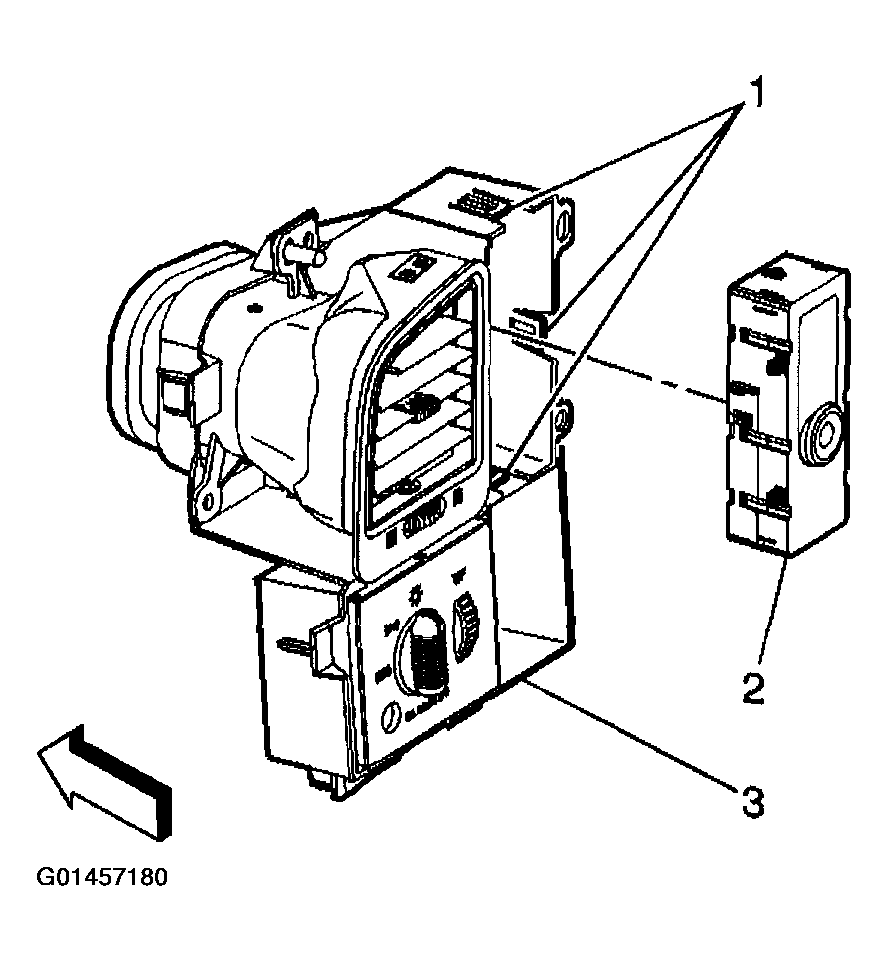

    3. Fig 1: Removing Traction Control Switch From I/P Assembly
    G01457180Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the harness connector from the traction control switch.
