Automatic Level Control Compressor Relay Connector End View

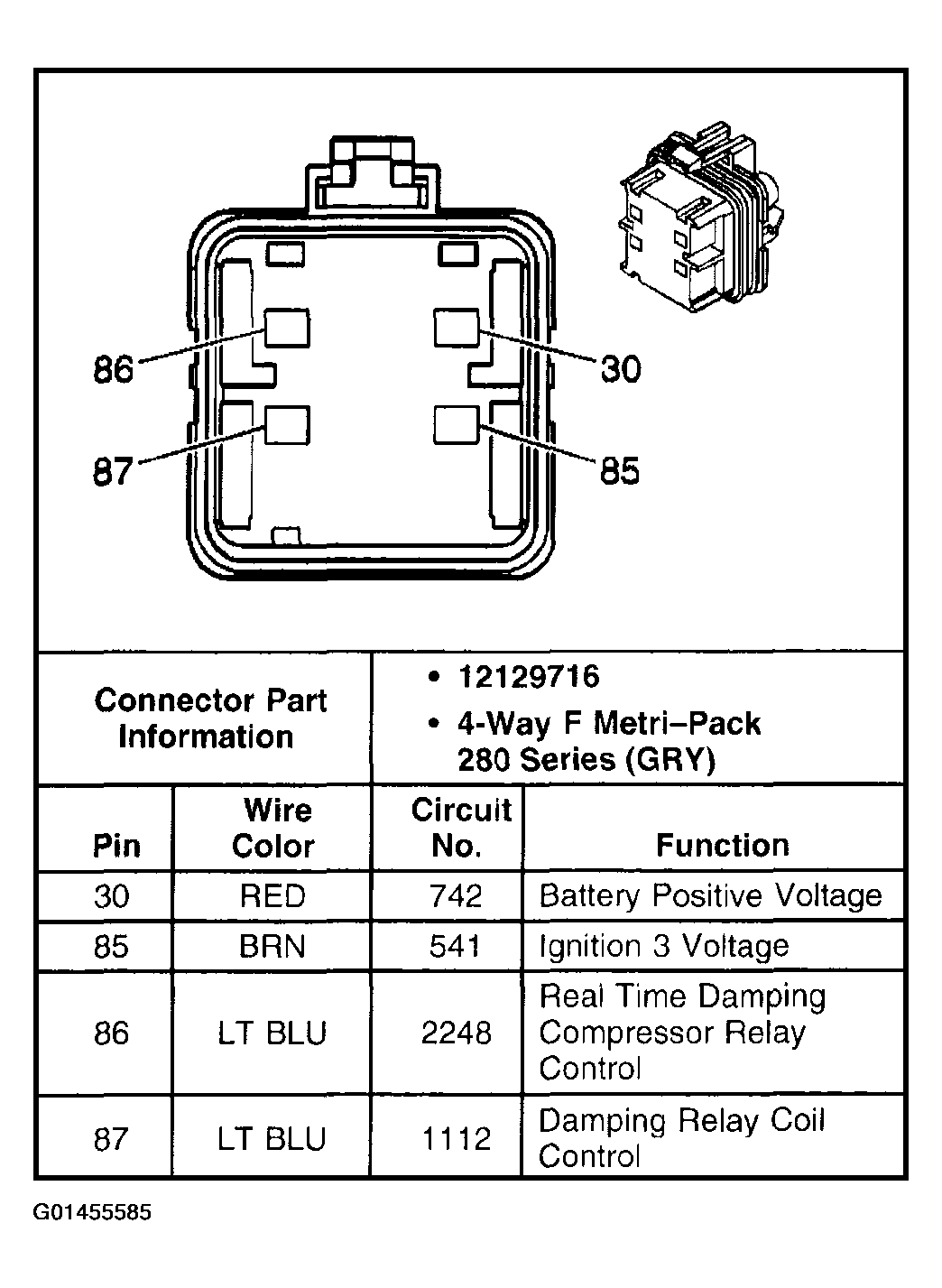

Fig 1: Automatic Level Control Compressor Relay Connector End View
G01455585Courtesy of GENERAL MOTORS CORP.
