HVAC Control Module Connector End View - C2
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
HVAC Control Module Connector End View - C2

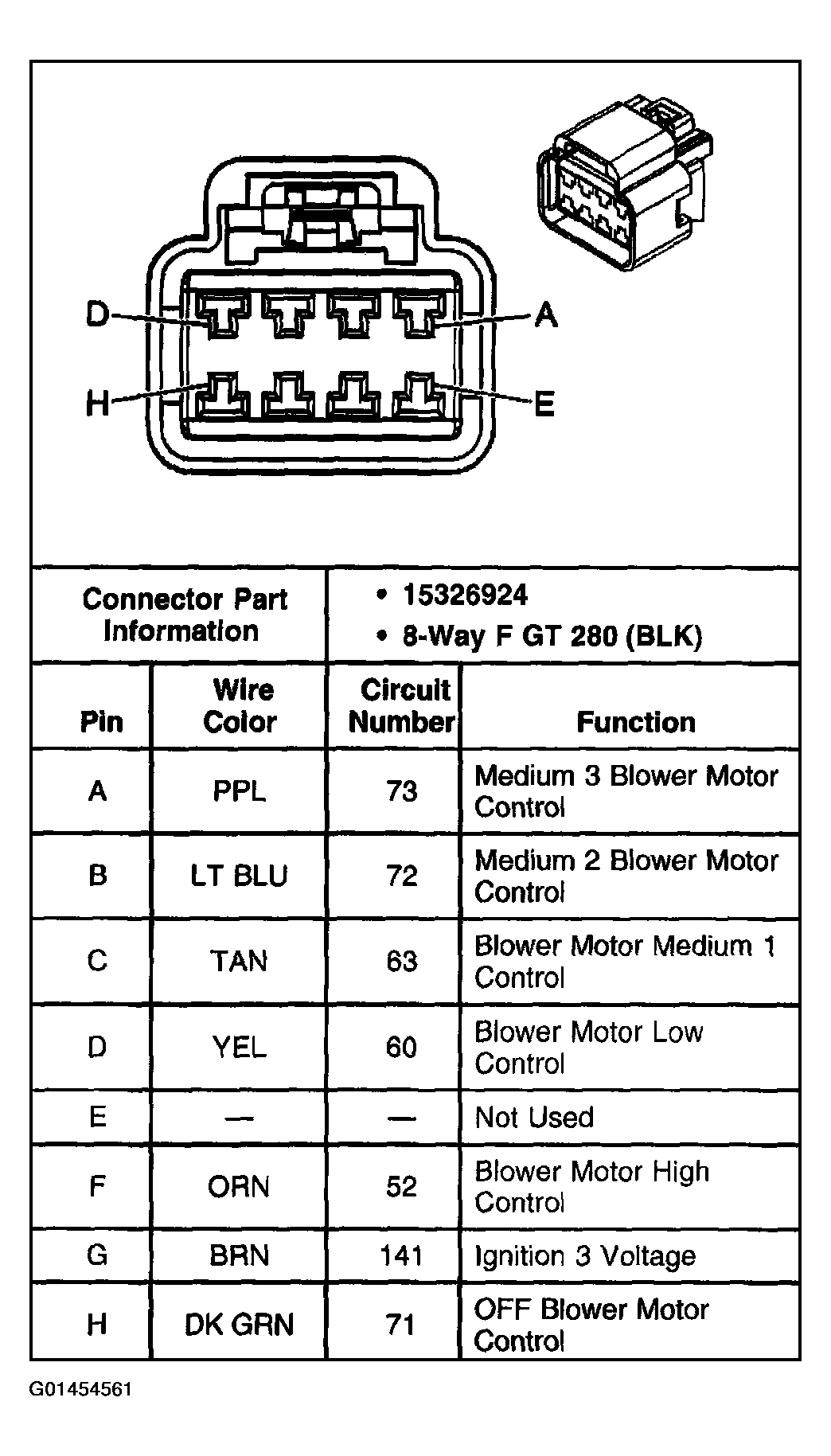

Fig 1: HVAC Control Module Connector End View - C2
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
