Rear Object Sensor Control Module Connector End View (1 Of 2)

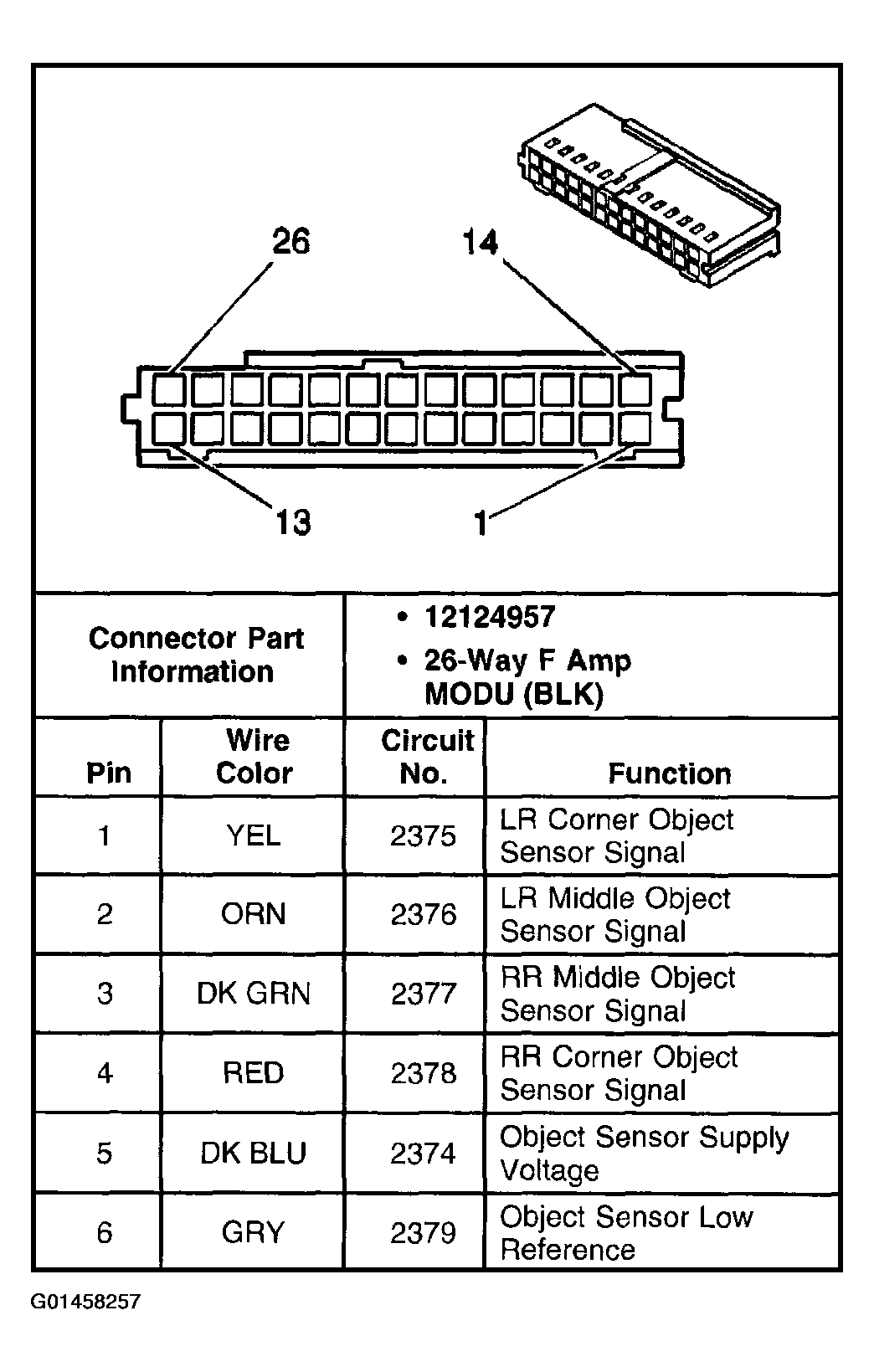

Fig 1: Rear Object Sensor Control Module Connector End View (1 Of 2)
G01458257Courtesy of GENERAL MOTORS CORP.
