Rear Object Sensor Control Module Connector End View (2 Of 2)

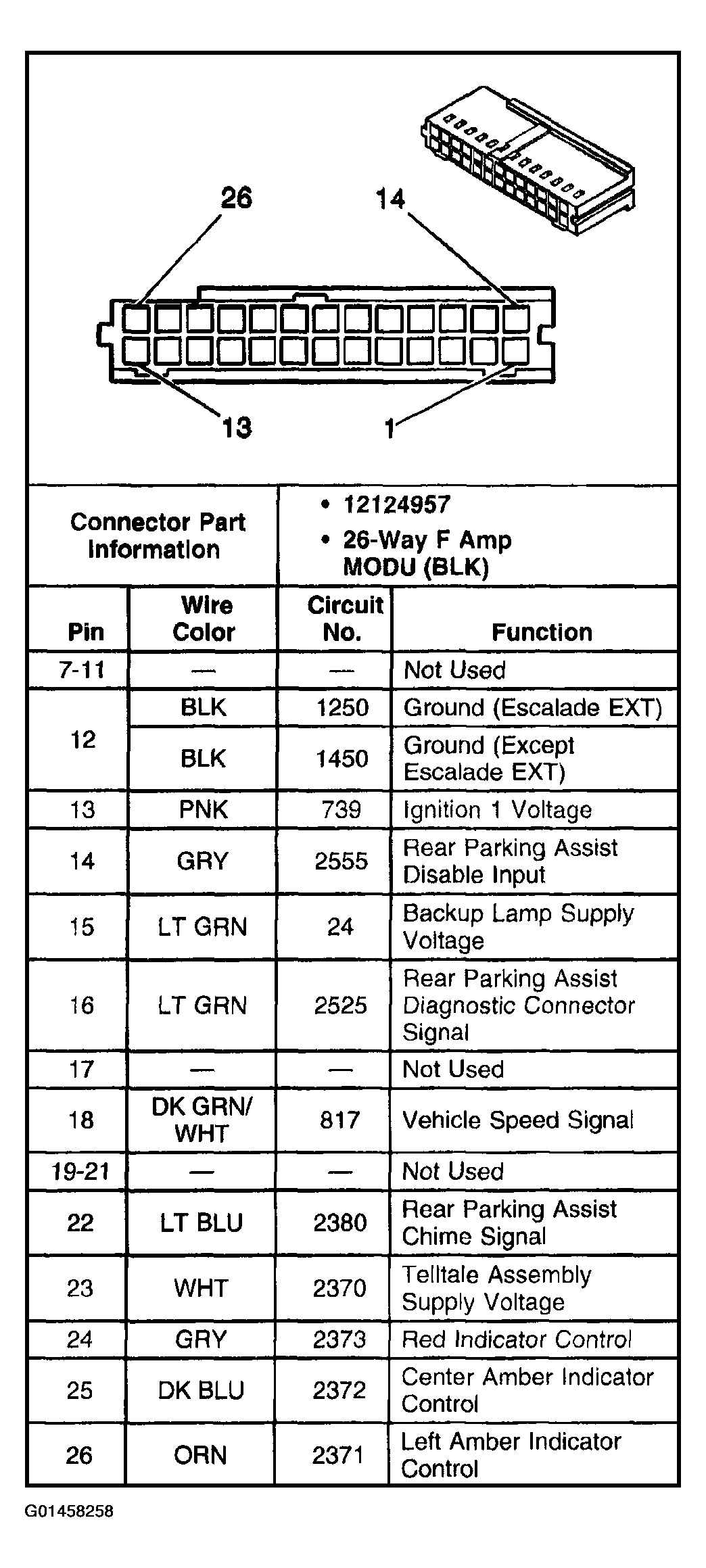

Fig 1: Rear Object Sensor Control Module Connector End View (2 Of 2)
G01458258Courtesy of GENERAL MOTORS CORP.
