Section 22 (Automatic Transaxle Servicing): Identification: Transmission
WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

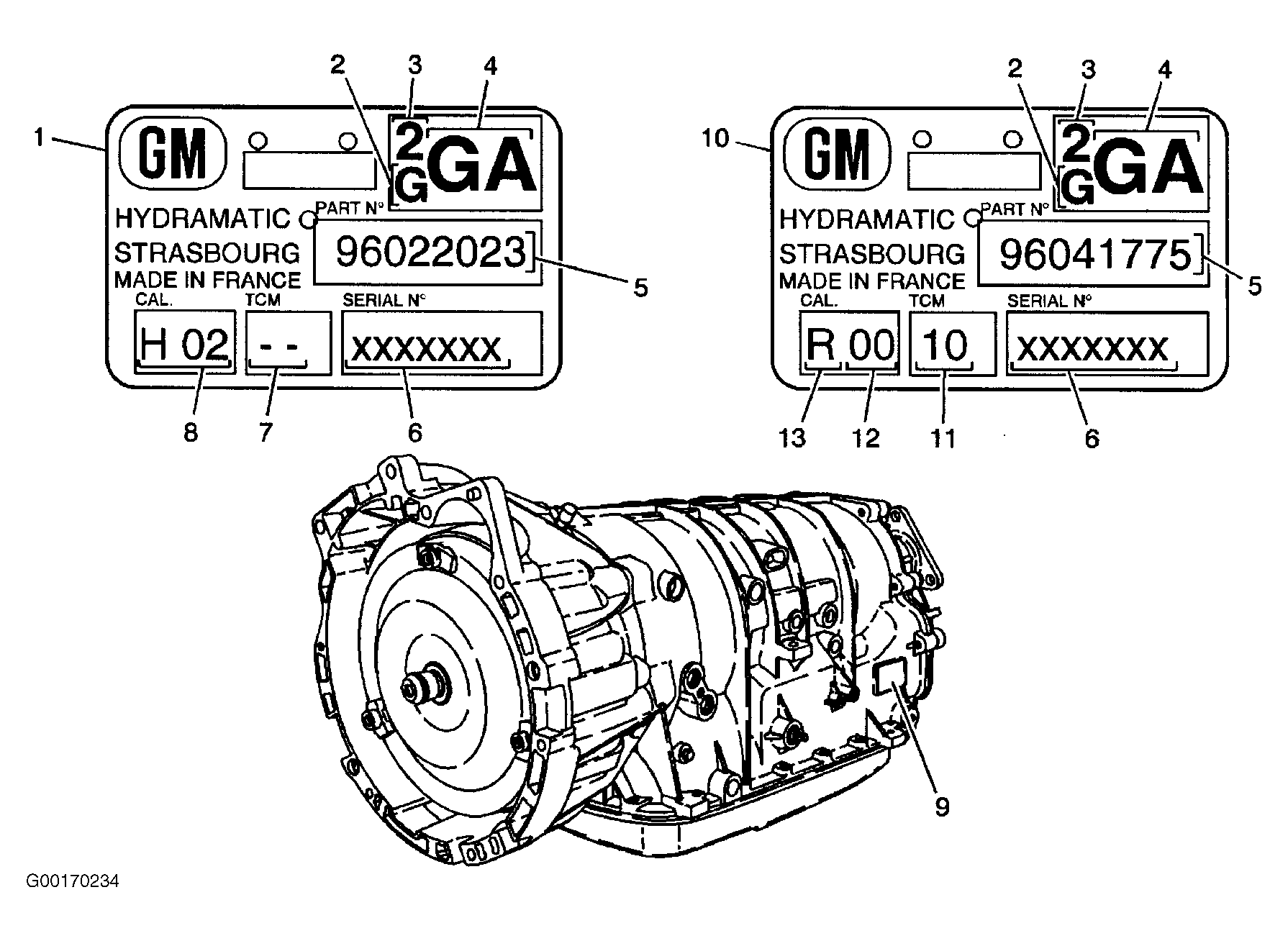

The transmission identification number is located at the rear of the transmission on the right-hand side. See Fig 1. For I.D. number breakdown, see TRANSMISSION IDENTIFICATION SYSTEM table.
TRANSMISSION IDENTIFICATION SYSTEM
| Position | Description |
|---|---|
| 1 | Production Or Service New |
| 2 | Transmission Family |
| 3 | Model Year |
| 4 | Alpha Code |
| 5 | Part Number |
| 6 | Serial Number |
| 7 | Empty |
| 8 | Calibration Code |
| 9 | I.D. Tag Location |
| 10 | Remanufactured |
| 11 | Remanufactured Date (Week) |
| 12 | Remantufactured Date (Year) |
| 13 | Remanufactured (R) |
