Power Door Systems Component Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

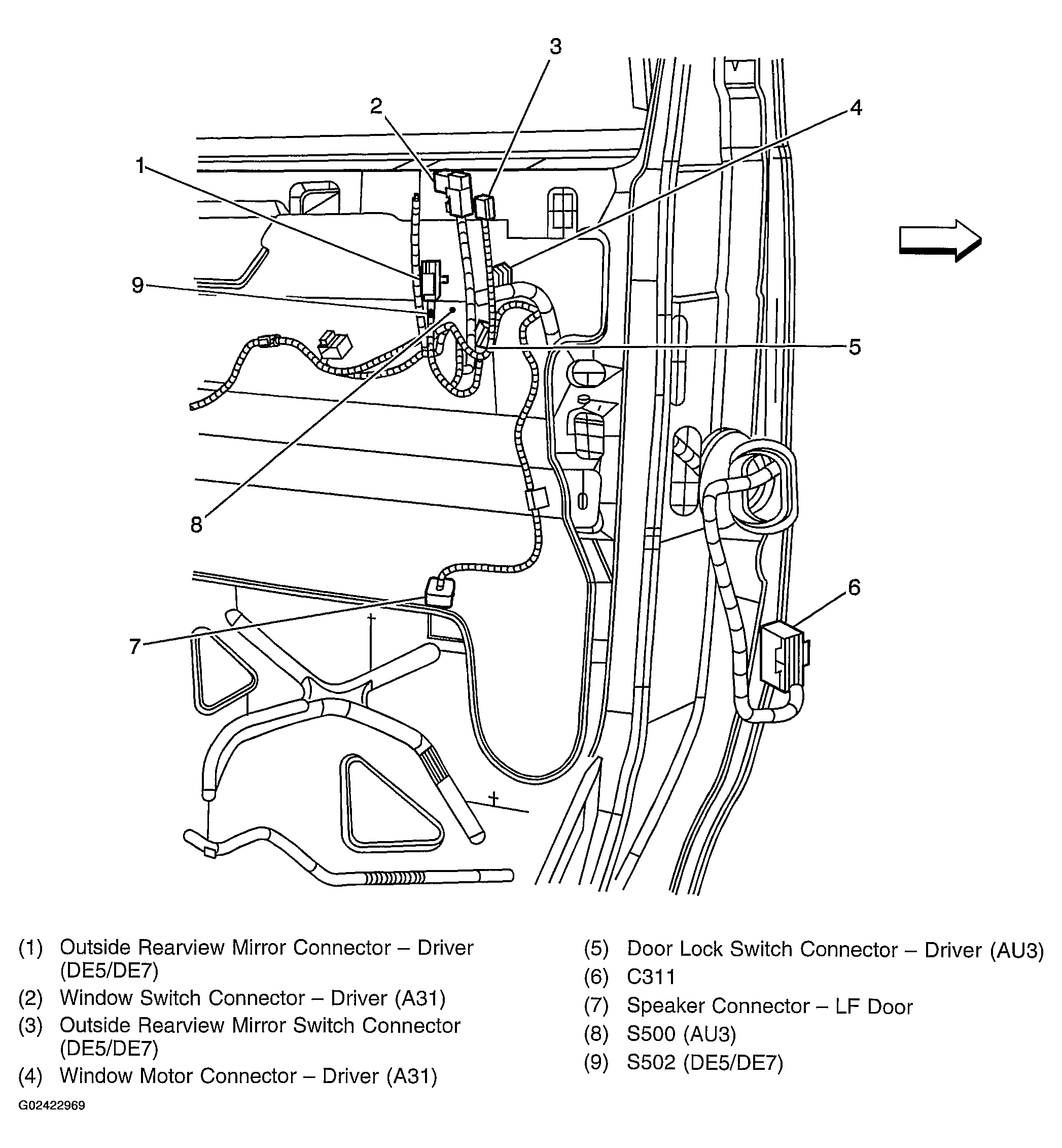

Fig 1: Identifying Driver Door Harness Routing

G02422969

Courtesy of GENERAL MOTORS CORP.

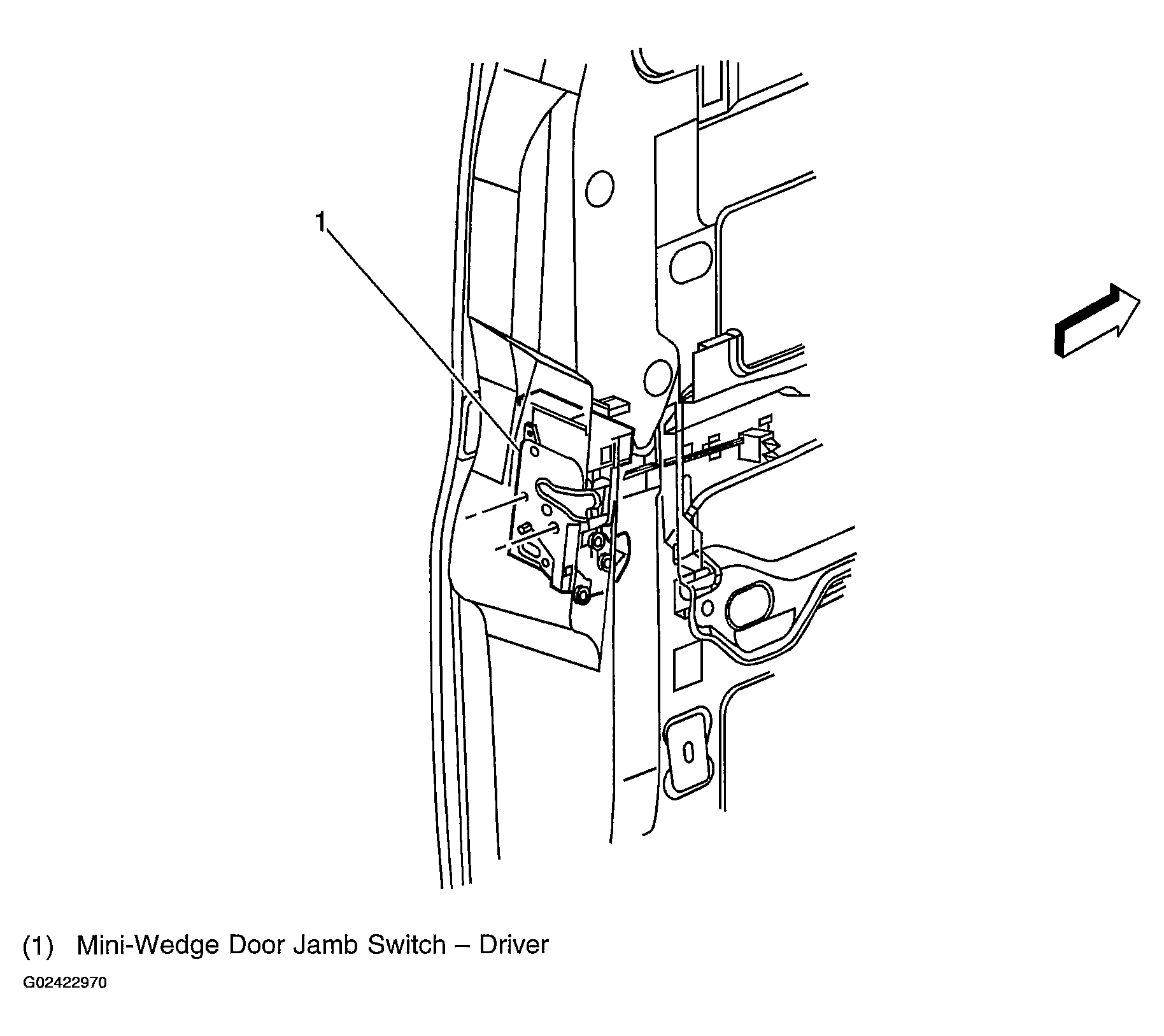

Fig 2: Identifying Driver Door Components

G02422970

Courtesy of GENERAL MOTORS CORP.

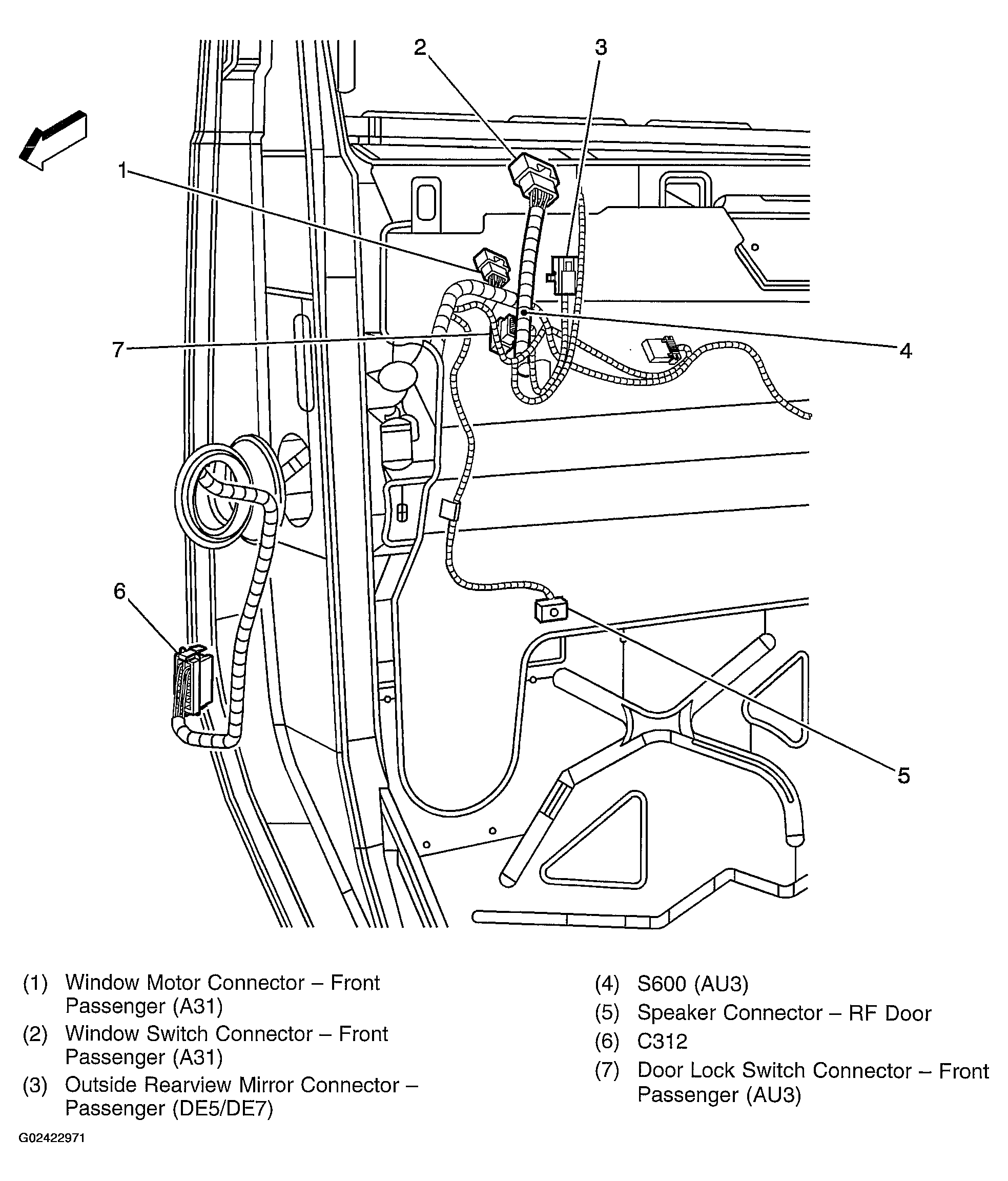

Fig 3: Identifying Passenger Door Harness Routing

G02422971

Courtesy of GENERAL MOTORS CORP.

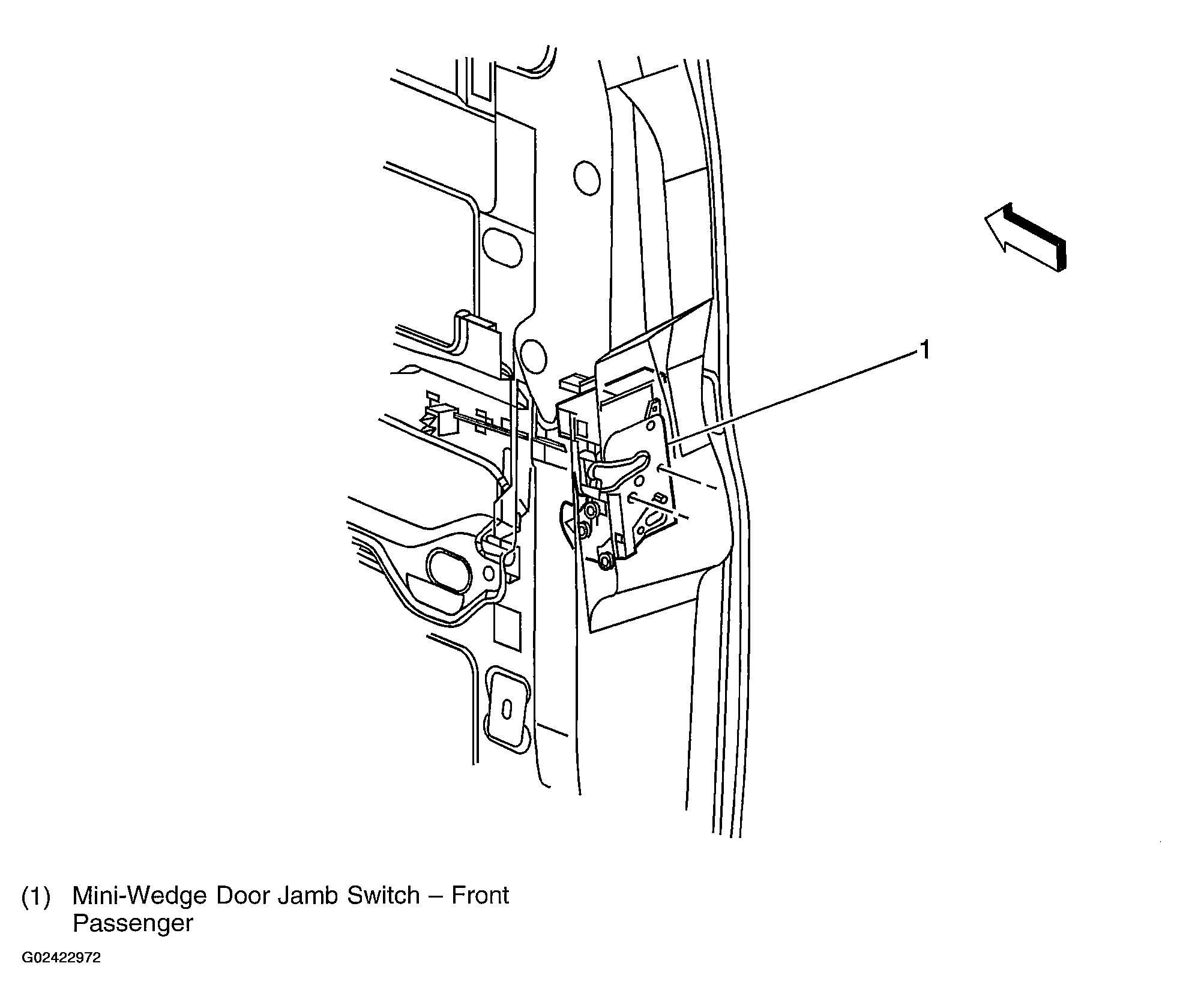

Fig 4: Identifying Front Passenger Door Components

G02422972

Courtesy of GENERAL MOTORS CORP.

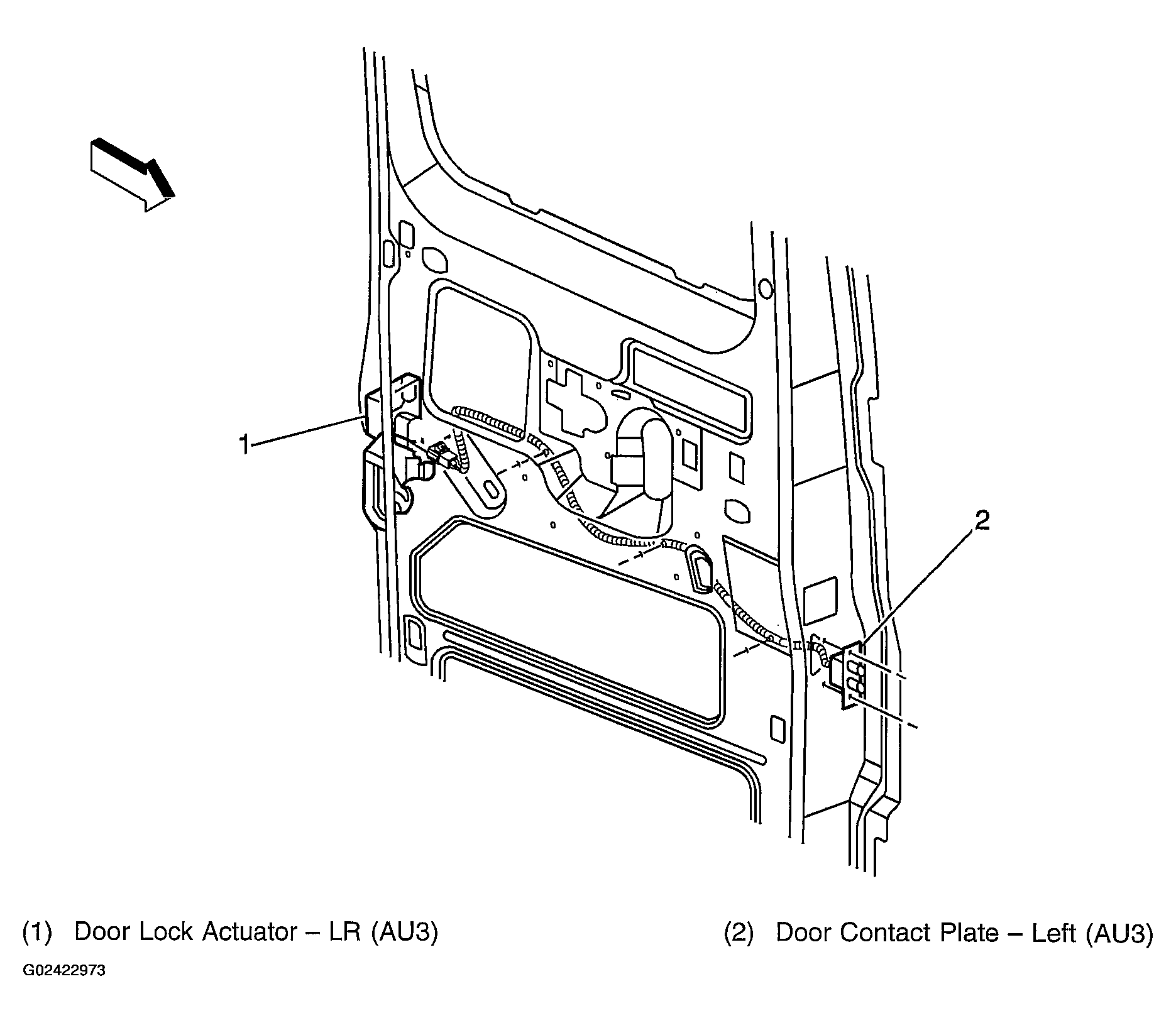

Fig 5: Identifying Left Side Door (E26) Components

G02422973

Courtesy of GENERAL MOTORS CORP.

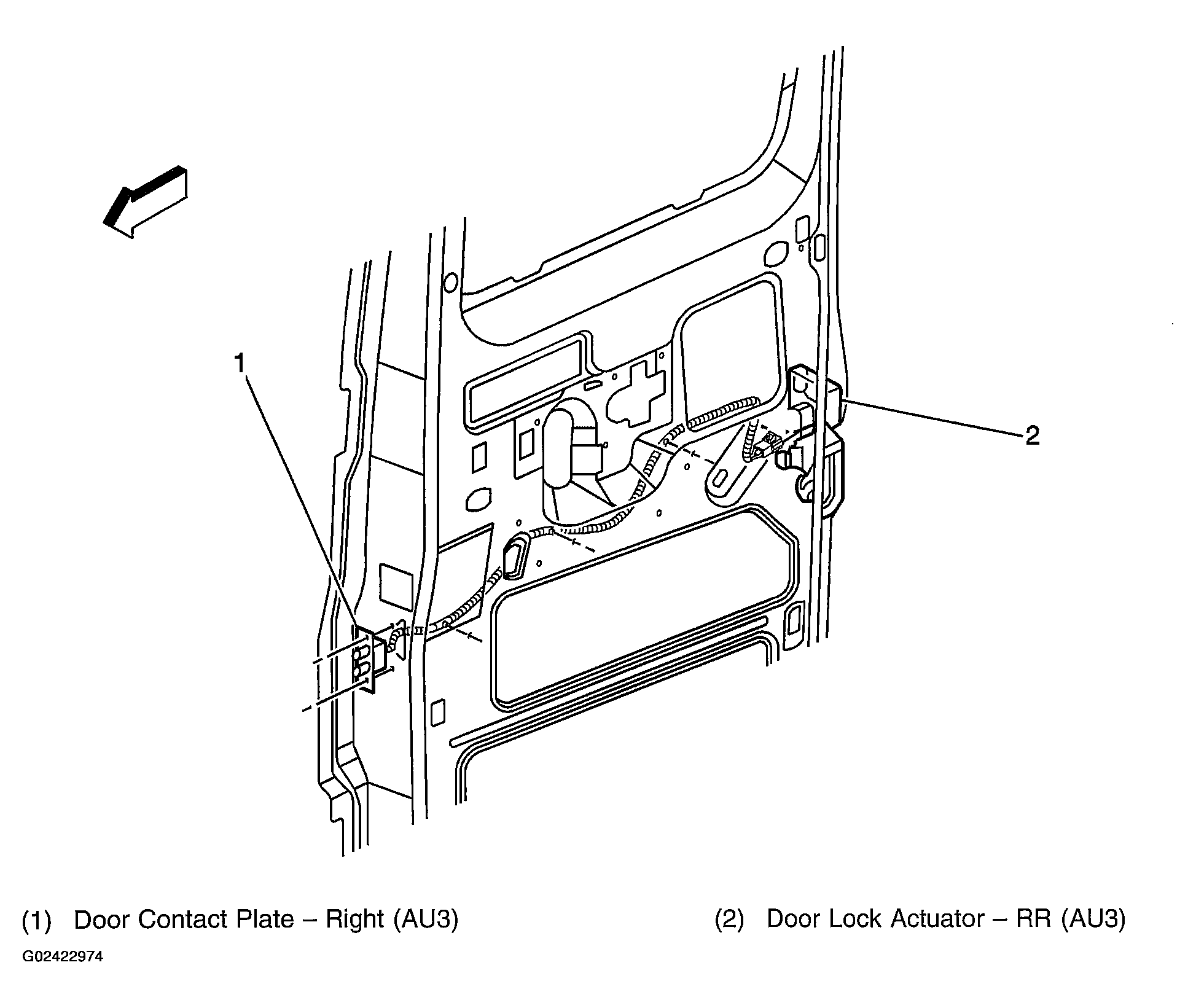

Fig 6: Identifying Right Side Door (E24) Components

G02422974

Courtesy of GENERAL MOTORS CORP.

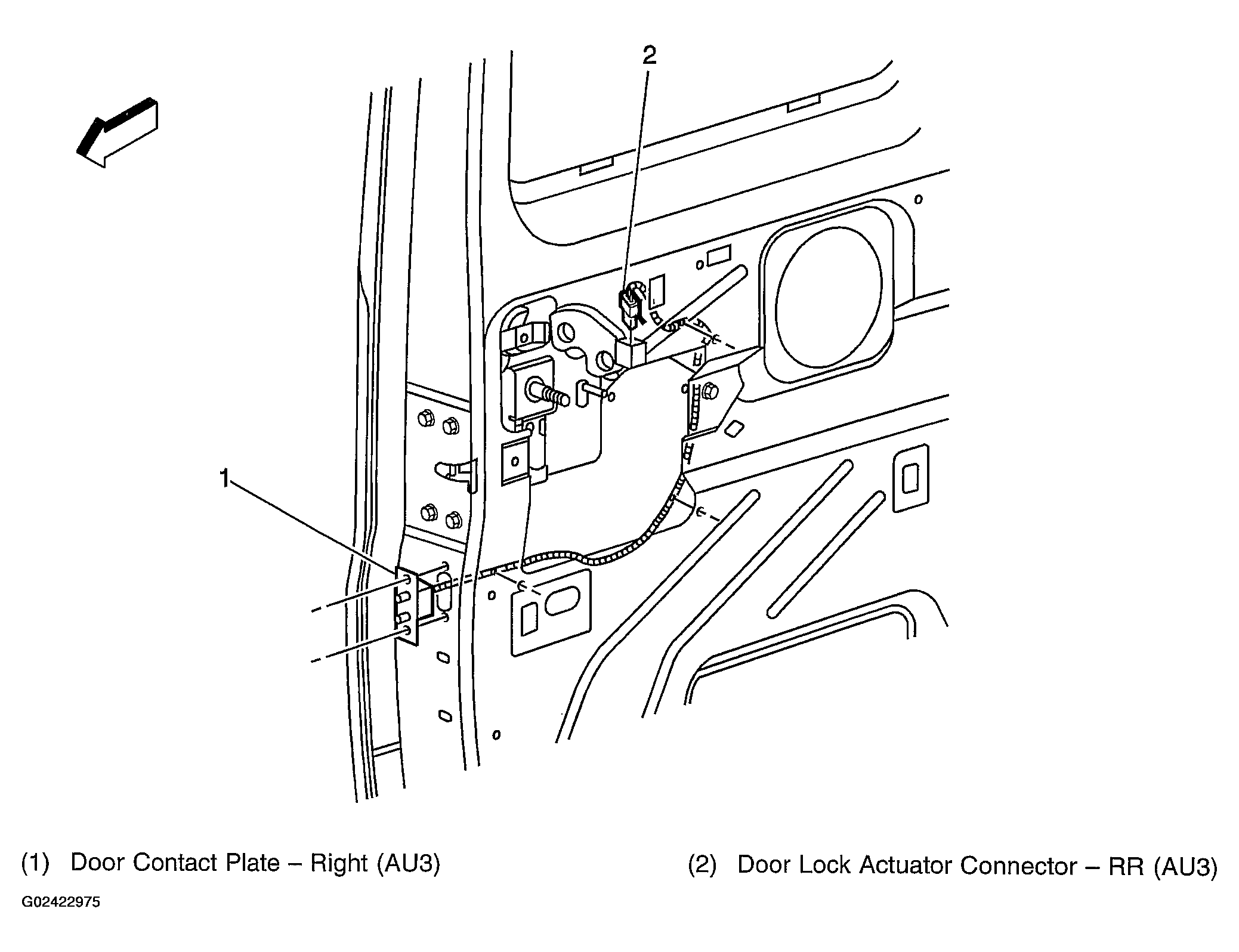

Fig 7: Identifying Right Sliding Door (YA2) Components

G02422975

Courtesy of GENERAL MOTORS CORP.

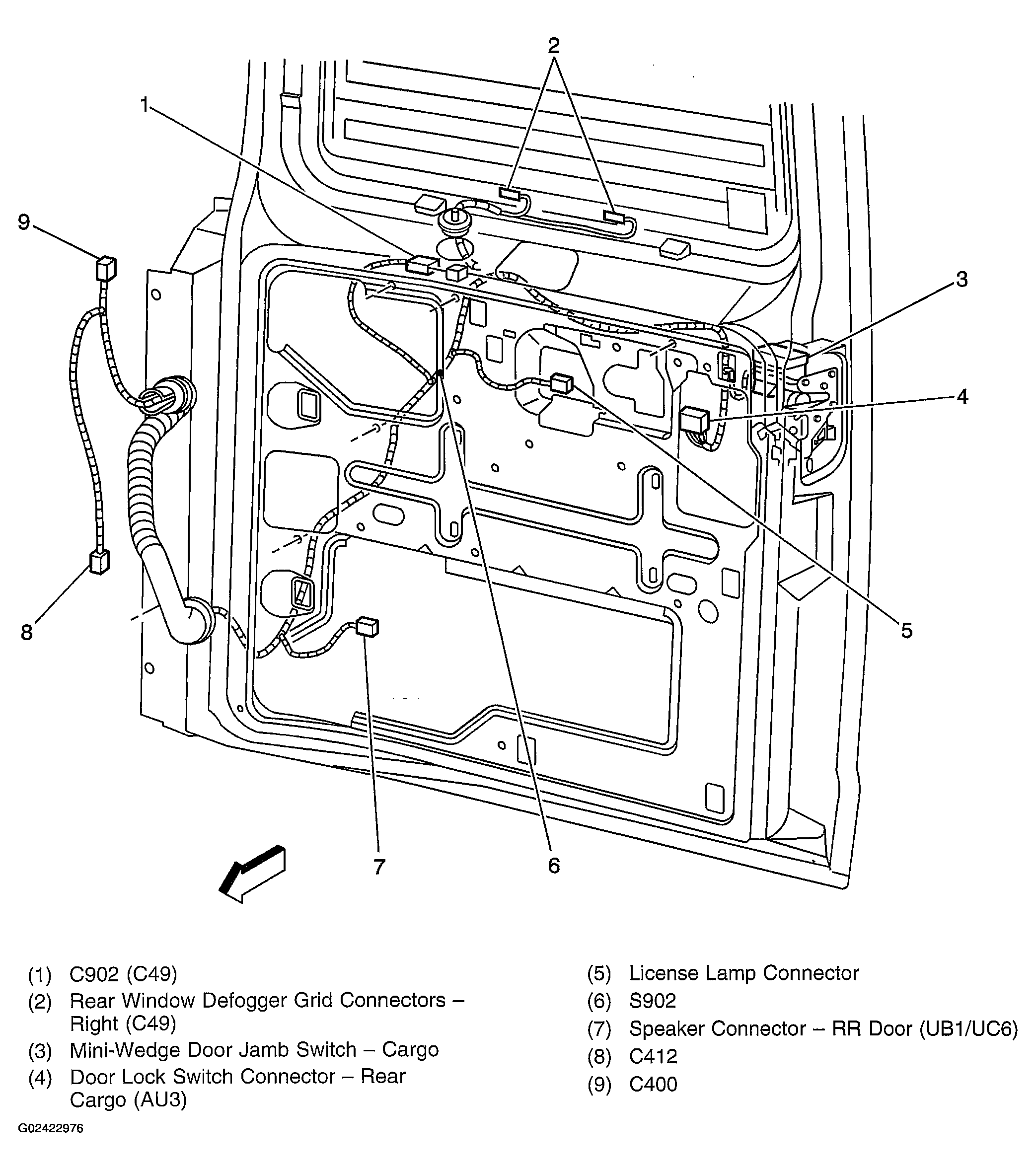

Fig 8: Identifying Right Rear Cargo Door Harness Routing (Passenger/Cargo) Components

G02422976

Courtesy of GENERAL MOTORS CORP.

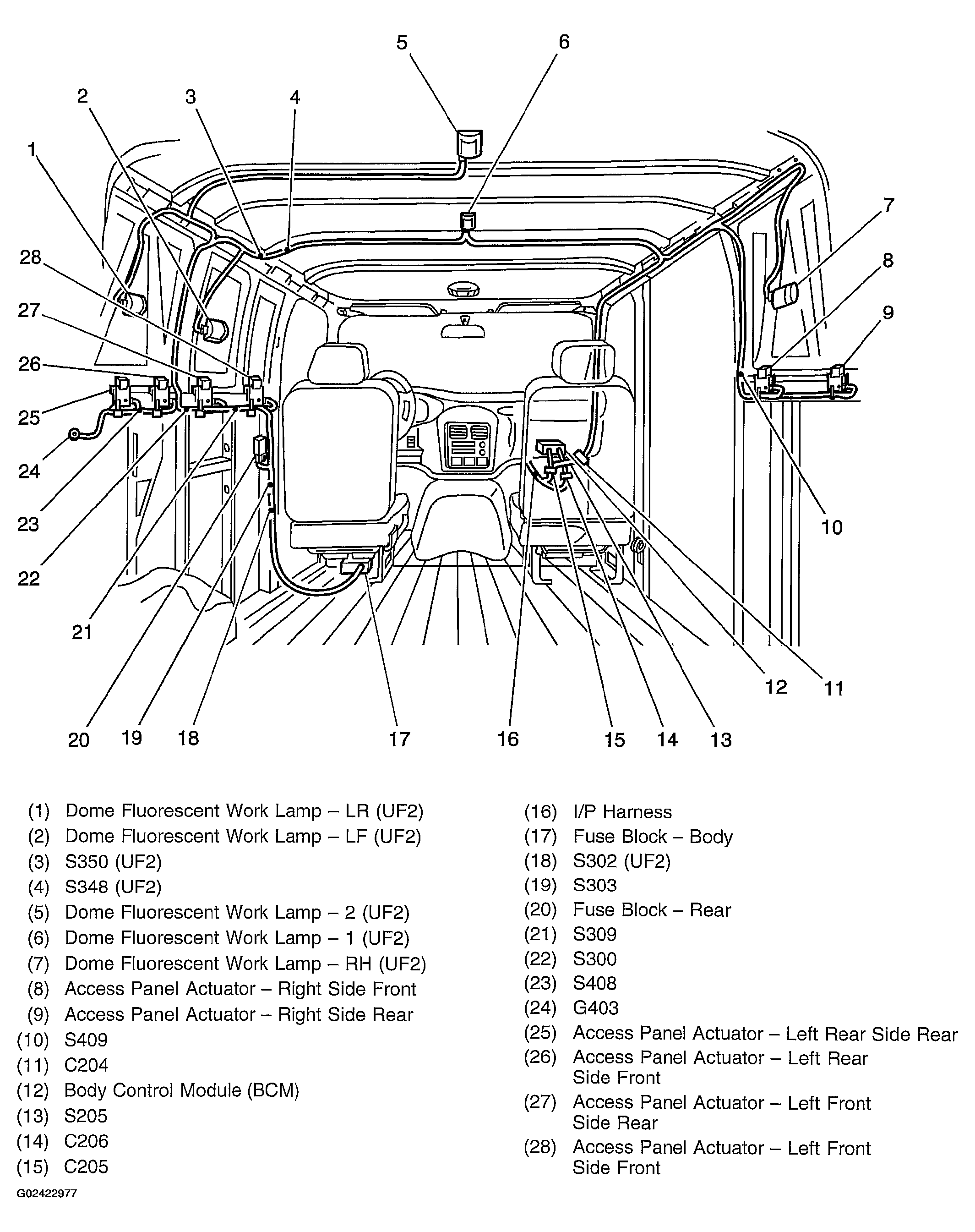

Fig 9: Identifying Pro Harness & Components (PRP)

G02422977

Courtesy of GENERAL MOTORS CORP.
