Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the side front door trim panel. Refer to Trim Panel Replacement - Side Front Door . .
Remove the lock rods from the side front door lock (1).
Disconnect the electrical connector from the side front door lock (1), if needed.
Remove the screw (2) that retain the side front door lock (1) to the door.
Remove the side front door lock (1) from the door.

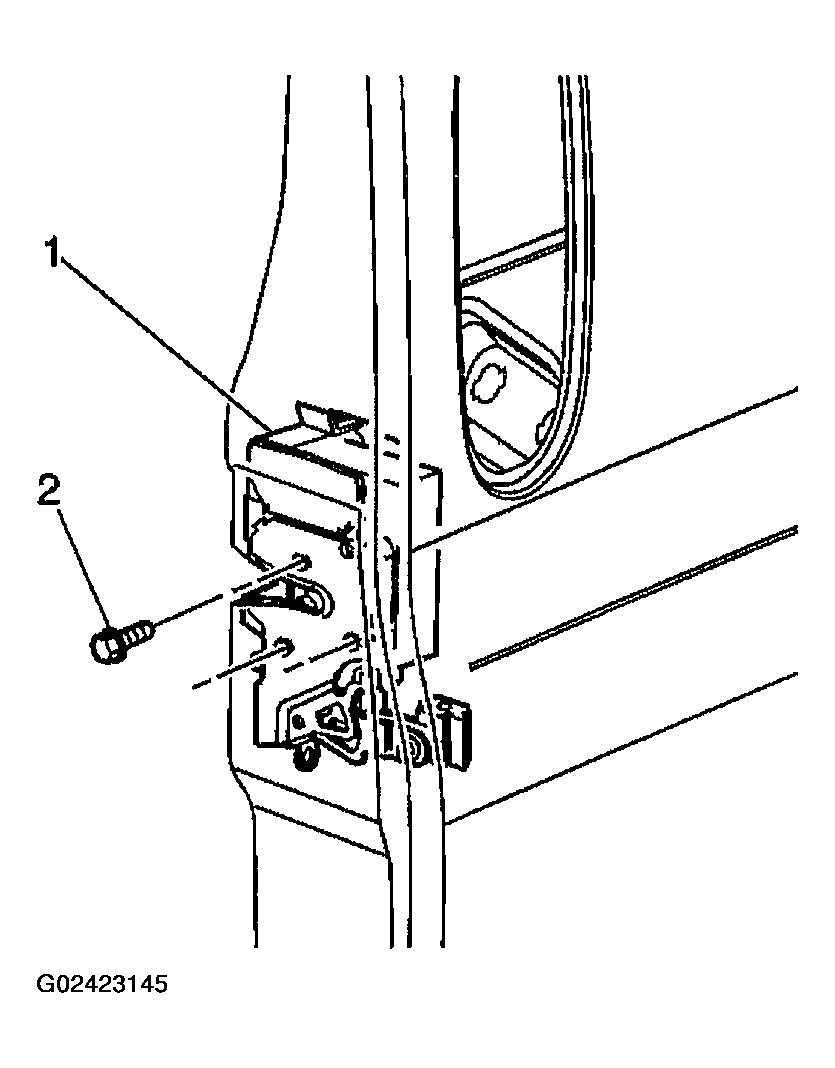

Fig 1: Removing Side Front Door Lock
Courtesy of GENERAL MOTORS CORP.
