Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door garnish molding. Refer to Garnish Molding Replacement - Front Door Front .
  2. Remove the nuts that retain the rearview mirror to the door.
  3. Remove the rearview mirror from the door.

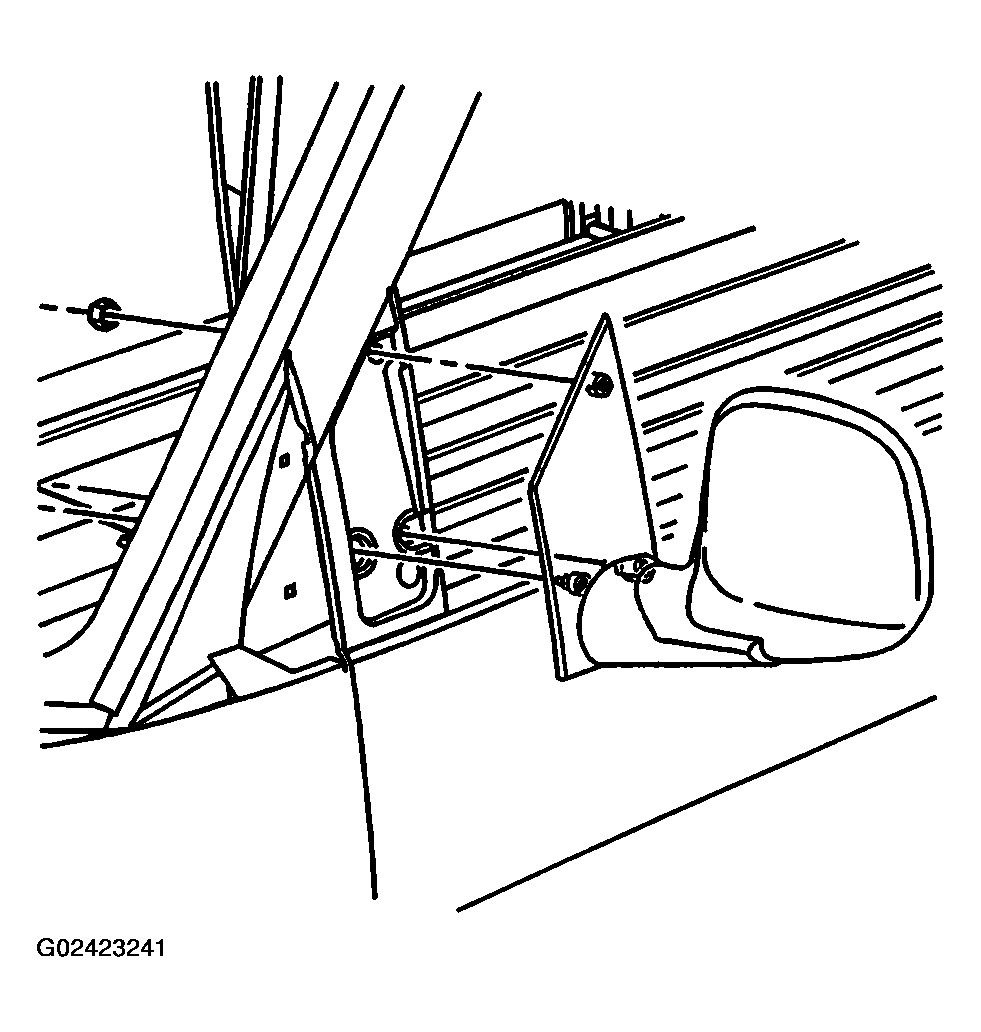

    Fig 1: Removing Manual Mirror
    G02423241Courtesy of GENERAL MOTORS CORP.
