Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  3. Remove the electrical connector from the power window motor (2).
  4. Remove the nuts (3) that retain the power window motor (2) to the front door module (1).
  5. Remove the power window motor (2) from the vehicle.

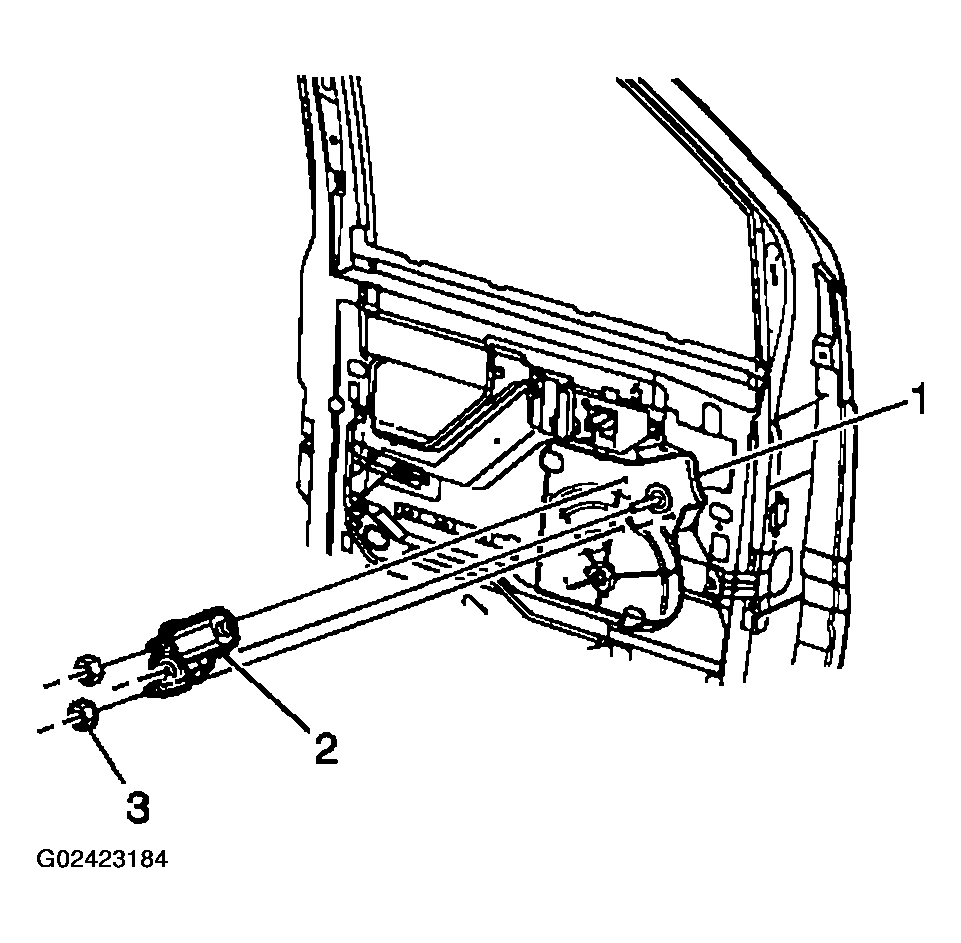

    Fig 1: Removing Power Window Motor
    G02423184Courtesy of GENERAL MOTORS CORP.
