Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the sliding side door center roller bracket (1) to the vehicle.
  2. Slide the sliding side door center roller bracket (1) into the rear of the track.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the nuts (2) in order to retain the sliding side door center roller bracket (1) to the door.

    Tighten

    Tighten the retaining nuts to 25 N.m (18 lb ft).

  4. Install the bolts (4) in order to retain the sliding side door center roller bracket (1) to the door.

    Tighten

    Tighten the retaining bolts to 25 N.m (18 lb ft).

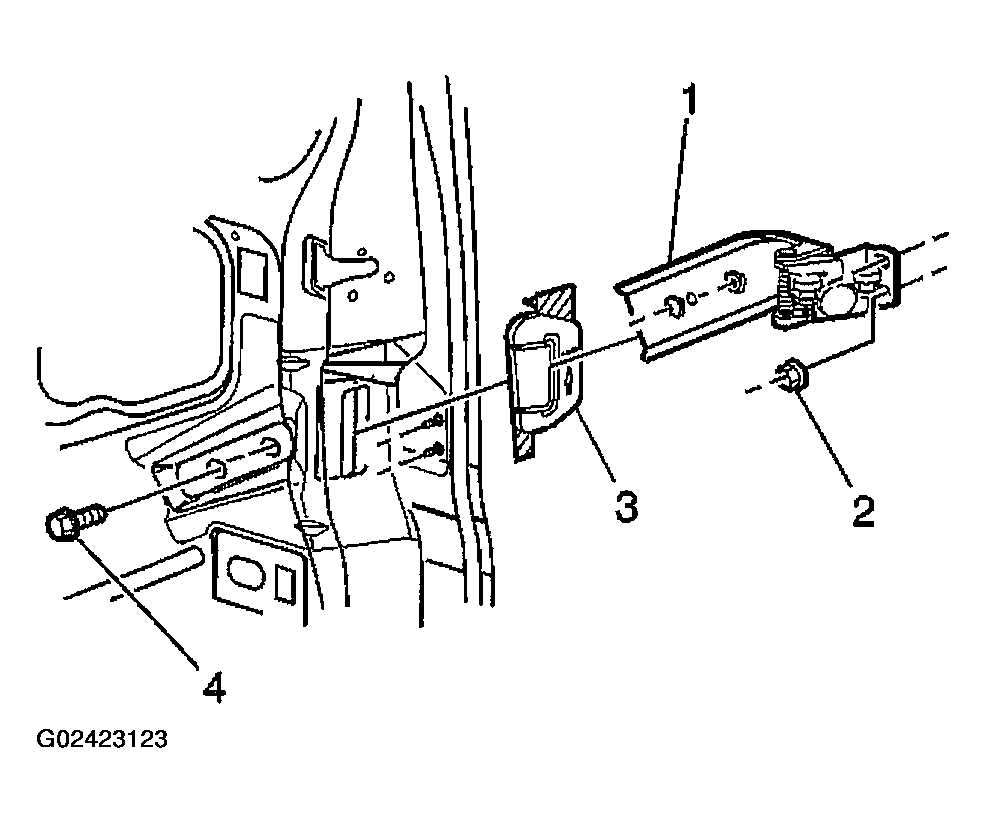

    5. Fig 1: Installing Sliding Side Door Center Roller Bracket
    G02423123Courtesy of GENERAL MOTORS CORP.
  5. Install the sliding side door stop. Refer to Sliding Door Stop Replacement .
  6. Install the passenger side body side trim panel. Refer to TRIM PANEL REPLACEMENT - RIGHT BODY SIDE .
  7. Install the sliding side door lower trim panel. Refer to Trim Panel Replacement - Sliding Door .
