Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the sliding door lower roller bracket to the vehicle.
  2. Install the sliding door lower roller bracket to the track.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the bolts that retain the sliding side door lower roller bracket to the door.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

  4. Install the sliding side door check assembly. Refer to Sliding Door Check Replacement .
  5. Install the side door stepwell mat. Refer to MAT REPLACEMENT - STEPWELL .

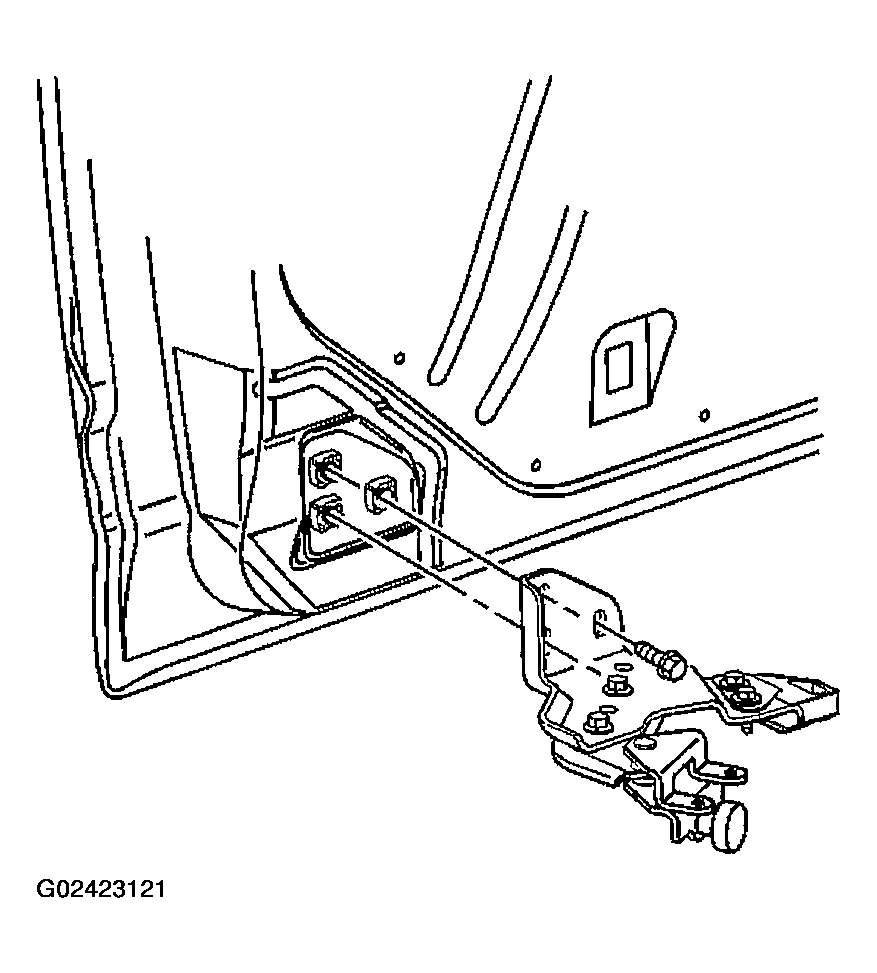

    Fig 1: Installing Sliding Side Door Lower Roller Bracket
    G02423121Courtesy of GENERAL MOTORS CORP.
