Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Note the position of the door window regulator handle with the window in the full up position.
  2. Place the door window regulator handle in the upward position.
  3. Remove the spring clip by inserting J 9886-01  between the window regulator handle and the door window regulator handle bearing plate. Press down to remove the spring clip.
  4. Remove the window regulator handle.
  5. Remove the door window regulator handle bearing plate.

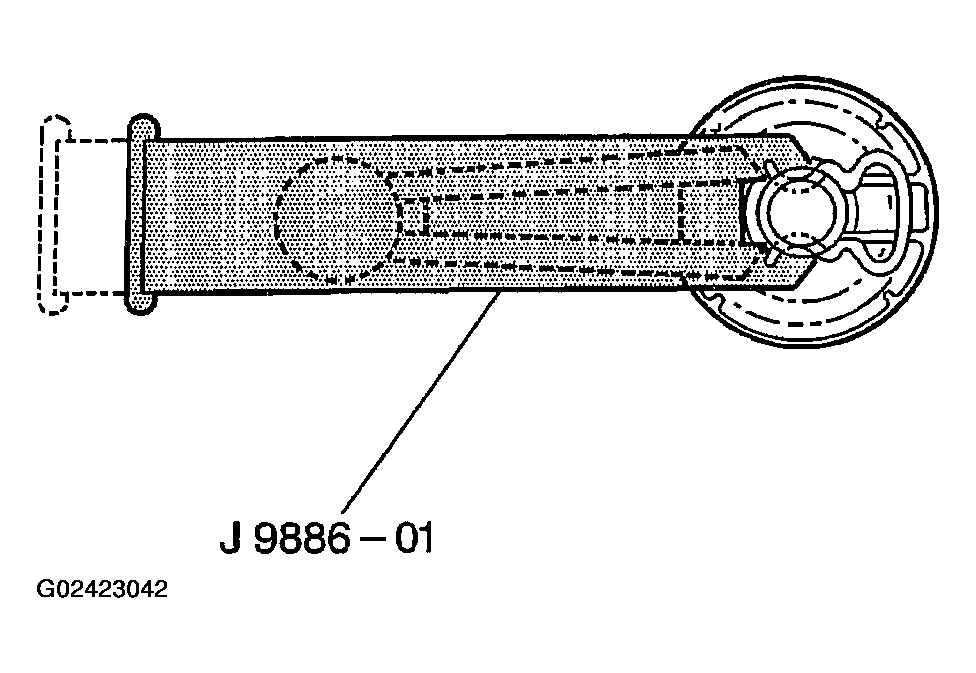

    Fig 1: Removing Door Window Regulator Handle
    G02423042Courtesy of GENERAL MOTORS CORP.
