Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the wiper motor module (3) into the vehicle.
  2. Connect the wiper motor module electrical connector.
  3. Align the wiper motor module studs to the cowl vent.
    CAUTION: Refer to FASTENER NOTICE .
  4. Install the nuts.

    Tighten

    Tighten the nuts to 10 N.m (89 lb in).

    Fig 1: Installing Wiper Motor Module
    G02422427Courtesy of GENERAL MOTORS CORP.
  5. Install the air inlet grille (1,2). Refer to AIR INLET GRILLE PANEL REPLACEMENT .
  6. Install the wiper arm assemblies. Refer to Wiper Arm Replacement  .
  7. Install the wiper motor fuse.

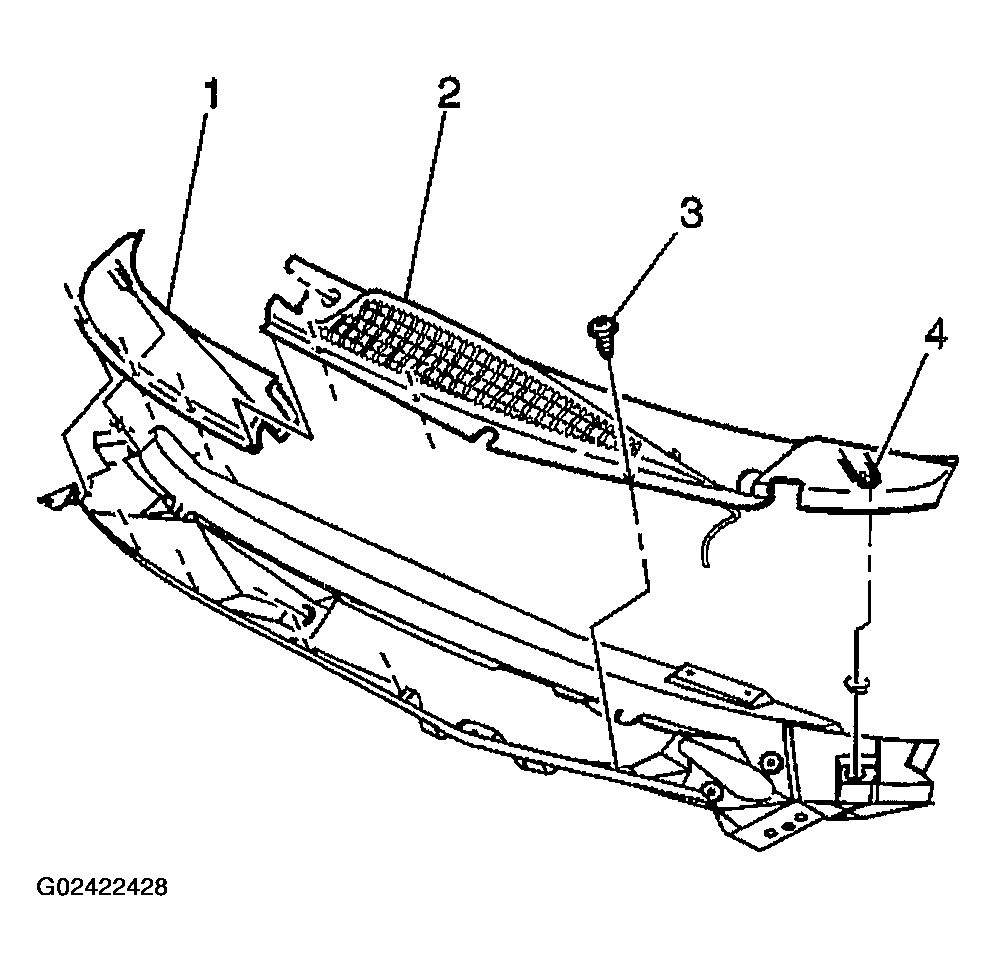

    Fig 2: Installing Air Inlet Grille
    G02422428Courtesy of GENERAL MOTORS CORP.
