Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper motor fuse. The wiper motor fuse is located in the instrument panel electrical center.
  2. Remove the wiper arm assemblies. Refer to Wiper Arm Replacement  .
  3. Remove the air inlet grille (1,2). Refer to AIR INLET GRILLE PANEL REPLACEMENT .

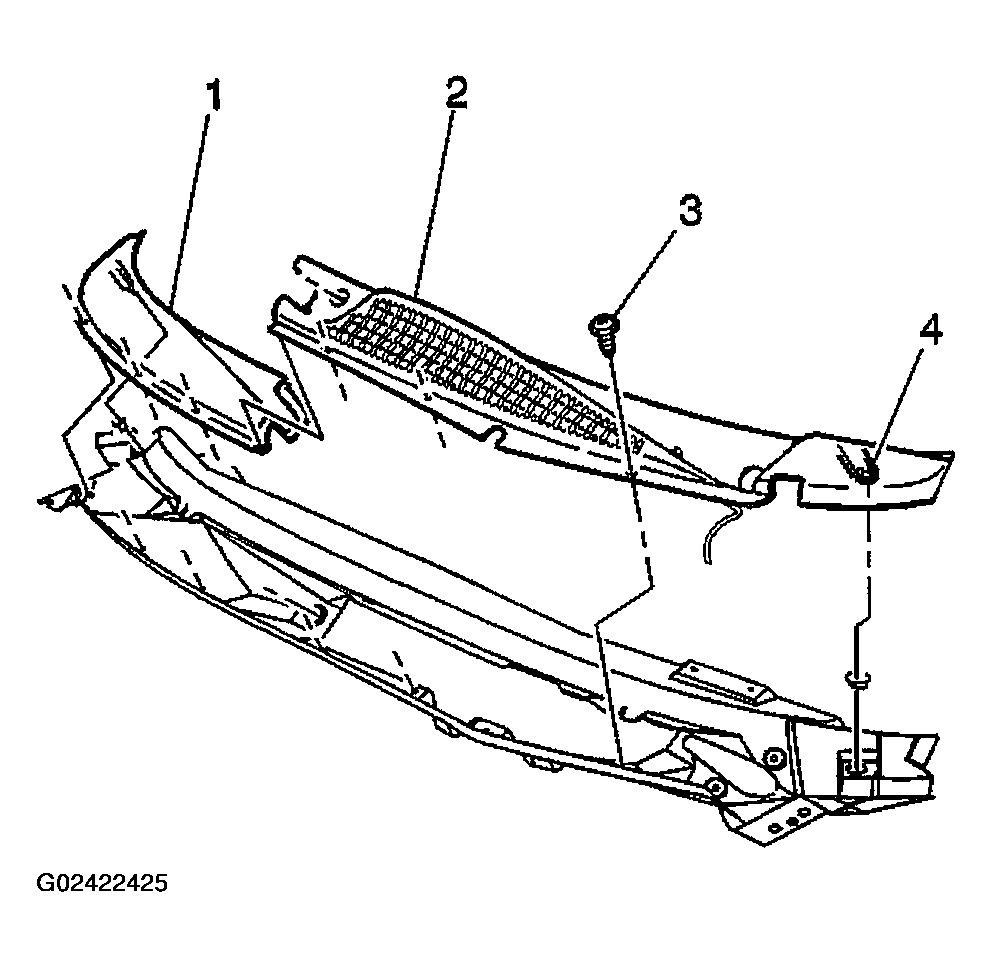

    Fig 1: Removing Air Inlet Grille
    G02422425Courtesy of GENERAL MOTORS CORP.
  4. Remove the wiper motor module mounting bolts.
  5. Disconnect the wiper motor electrical connector.
  6. Remove the wiper motor module from the vehicle.

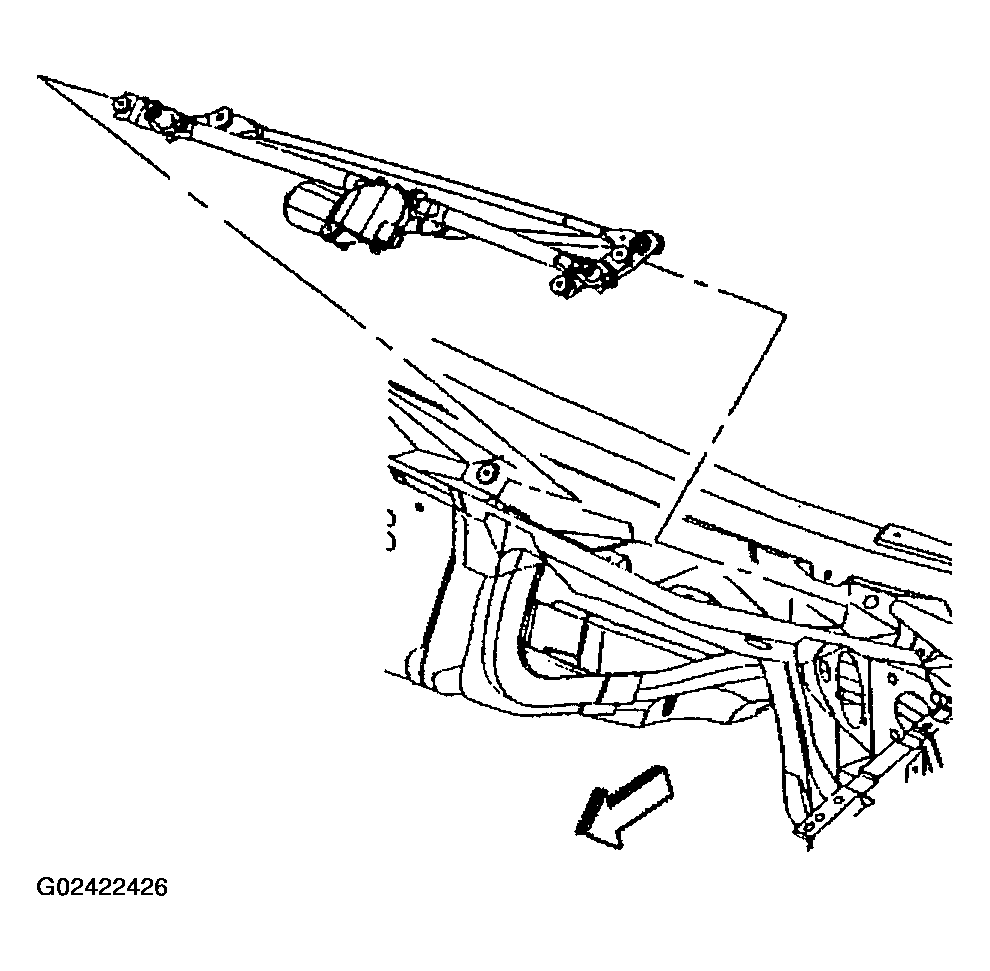

    Fig 2: Removing Wiper Motor Module
    G02422426Courtesy of GENERAL MOTORS CORP.
