Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the battery into the battery carrier.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the battery hold-down retainer and bolt.

    Tighten

    Tighten the bolt to 25 N.m (18 lb ft).

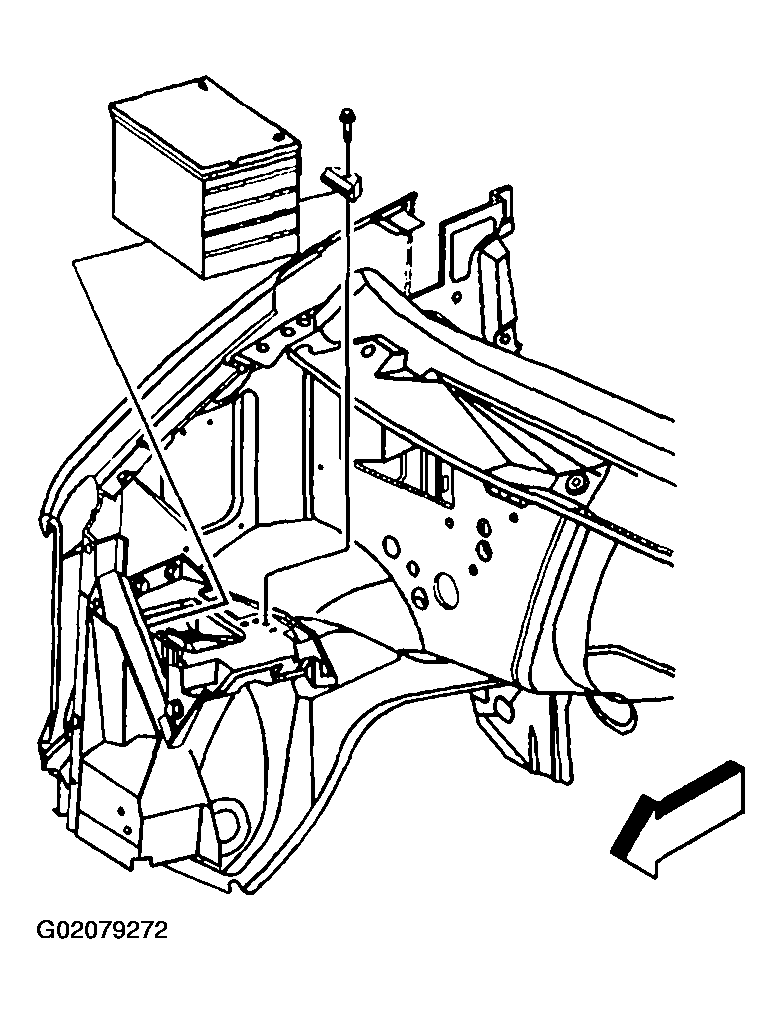

    Fig 1: Installing Battery & Hold-Down Retainer
    G02079272Courtesy of GENERAL MOTORS CORP.
  3. Connect the battery positive cable and the positive battery cable terminal to the battery. Refer to Battery Positive Cable Replacement .
  4. Connect the battery negative cable and the negative battery cable terminal to the battery. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  5. Install the coolant recovery reservoir.

    Tighten

    Tighten the reservoir bolt to 11 N.m (97 lb in).

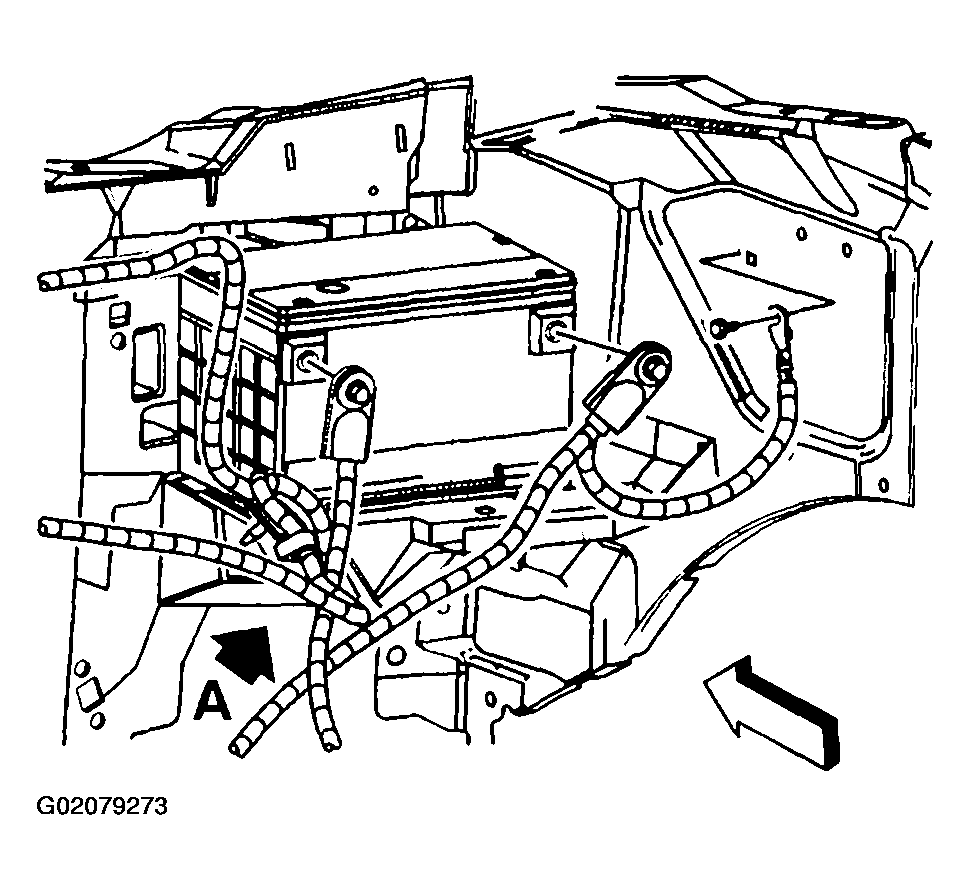

    Fig 2: Connecting Battery Positive & Negative Cables
    G02079273Courtesy of GENERAL MOTORS CORP.
