Power Outlet Component Views

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Component Views - Lower Center of the I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ashtray Lamp Socket
2	Bulb
3	Ashtray Lamp Shield
4	Instrument Panel
5	Accessory Power Outlet
6	Cigar Lighter Assembly

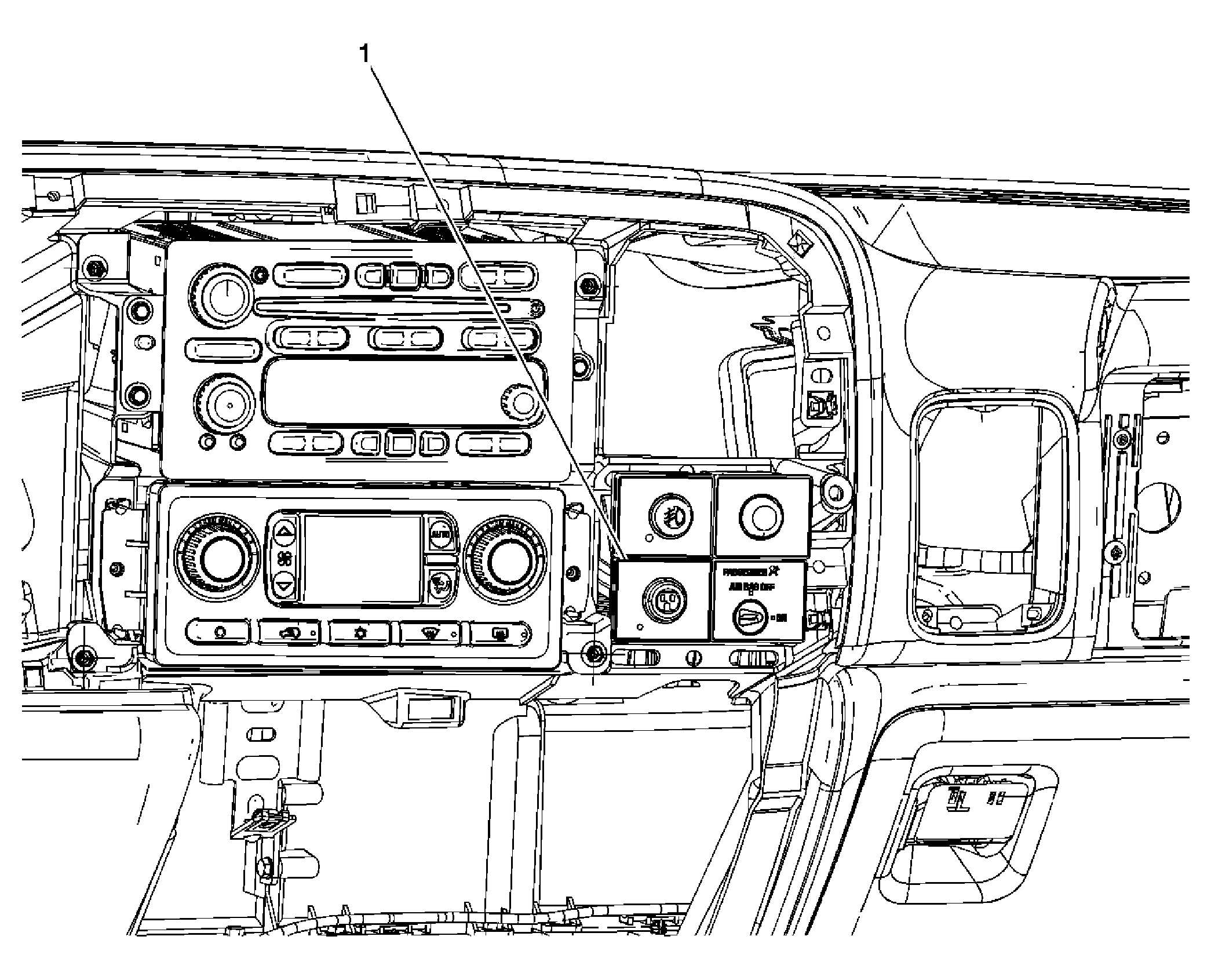

Fig 2: Multifunction Accessory Switch (HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary Power Outlet Switch (HP2)

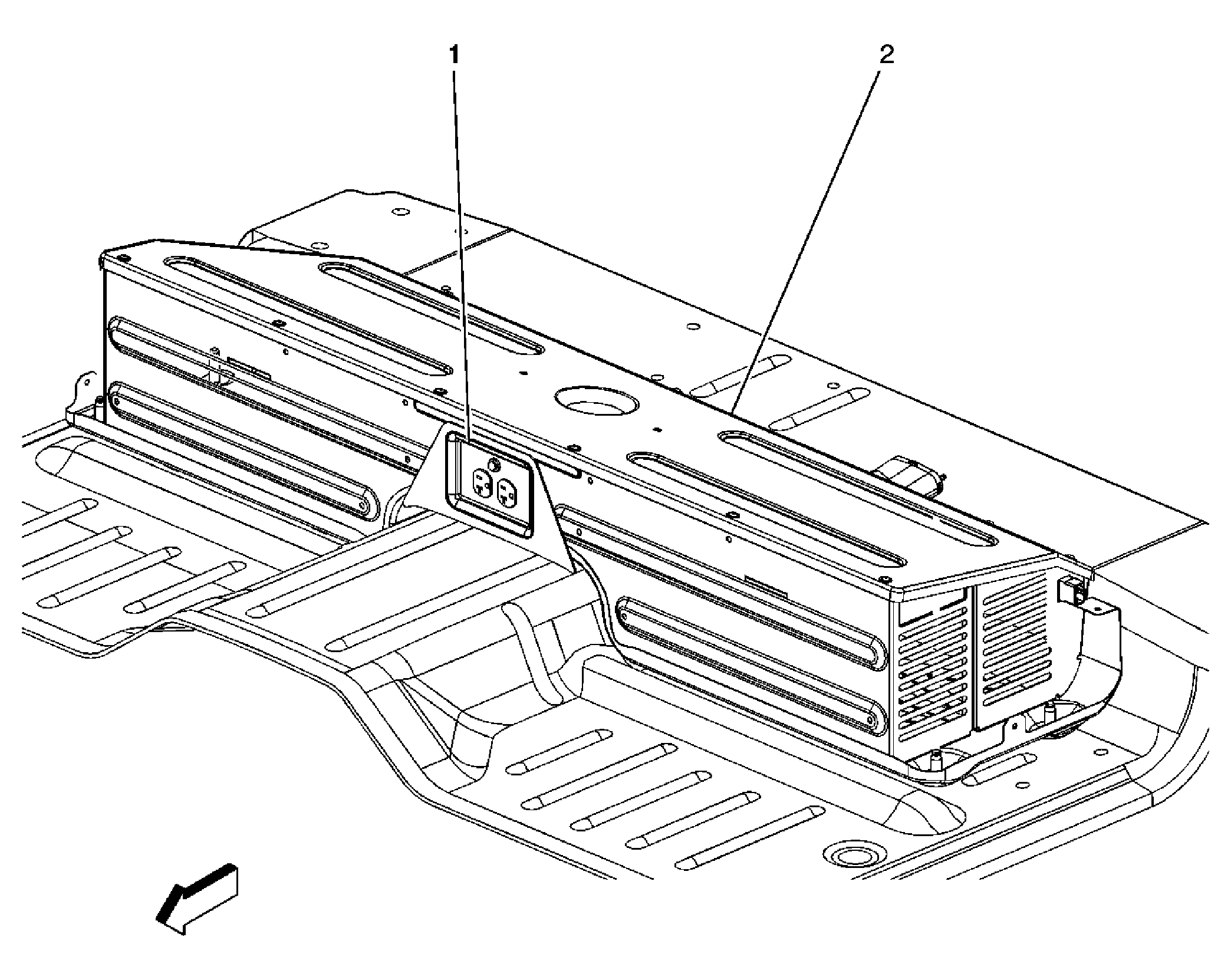

Fig 3: Component Views - Below Rear Seat (HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary Power Outlet 120-Volt AC - Interior (HP2)
2	Energy Storage Box (ESB)

Fig 4: Component Views - Right Rear Corner of Bed (HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary Power Outlet 120-Volt AC - Exterior (HP2)
