Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Remove the transportation pin from the remote CD changer, if installed prior.
Install the mounting brackets to the remote CD changer.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the remote CD changer mounting bracket bolts.
Tighten

Tighten the remote CD changer mounting bracket bolts to 1.9 N.m (17lb in).

Fig 1: Remote CD Changer Mounting Bracket Bolts
Courtesy of GENERAL MOTORS CORP.
Position the remote CD changer to the studs on the center rear storage compartment rear wall.
Install the nuts mounting the remote CD changer to the rear compartment wall.
Tighten

Tighten the remote CD changer mounting nuts to 12 N.m (106 lb in).

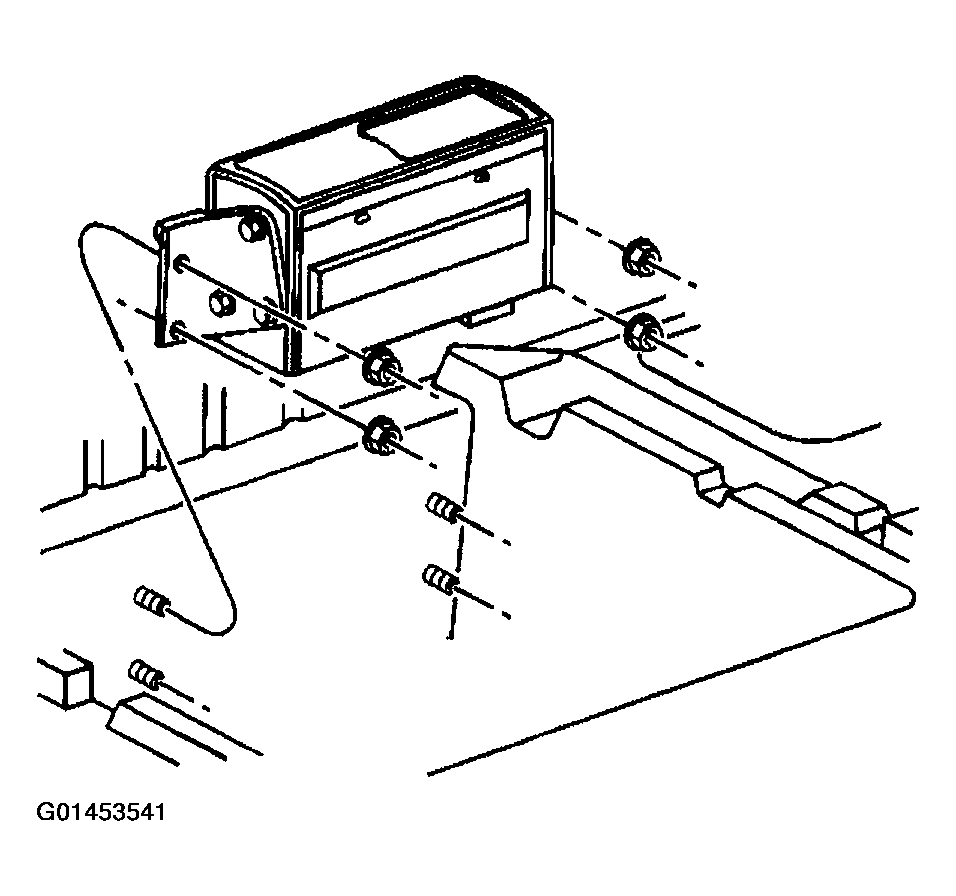

Fig 2: Installing Nuts Mounting Remote CD Changer To Rear Compartment Wall
Courtesy of GENERAL MOTORS CORP.
Connect the electrical/audio connector to the remote CD changer.
Position the carpet in the center rear storage compartment to cover the base of the remote compact disc (CD) changer.
Install the center rear storage compartment cover.
Close the rear lift window panel.
Install the RDO/CD MiniFuse® #5 to the I/P electrical center.
Install the cover to the I/P electrical center.
Install the front floor kick-up panel. Refer to KICK-UP PANEL REPLACEMENT - FRONT FLOOR in Interior Trim.

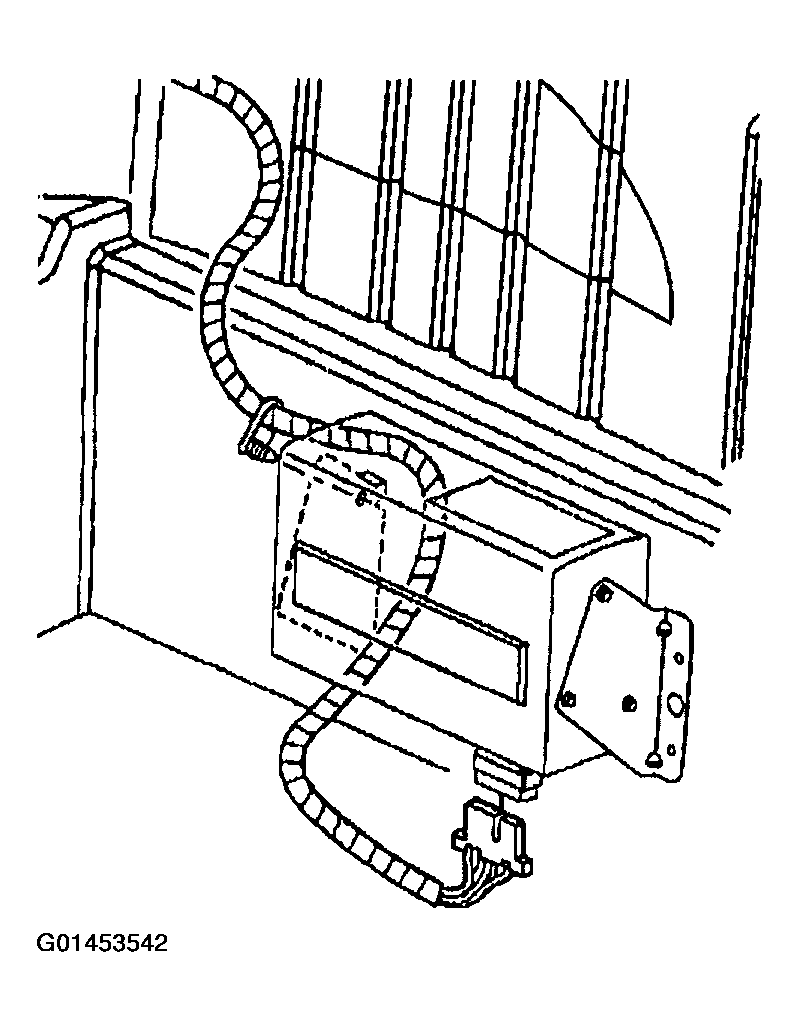

Fig 3: Connecting Electrical/Audio Connector To Remote CD Changer
Courtesy of GENERAL MOTORS CORP.
