Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the pull handle to the door trim panel.
  2. Install the screws through the bracket (1) to the pull handle.
  3. Install the door trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR  .

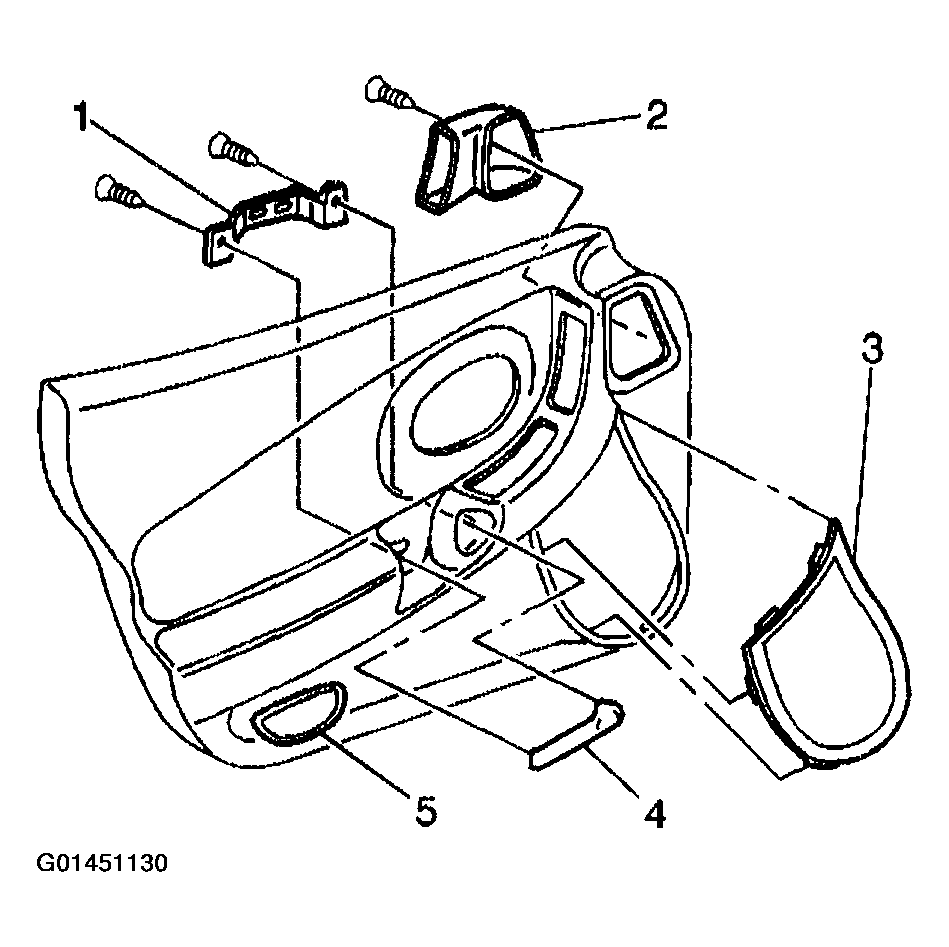

    Fig 1: Installing Pull Handle To Door Trim Panel
    G01451130Courtesy of GENERAL MOTORS CORP.
