Entertainment Component Views

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

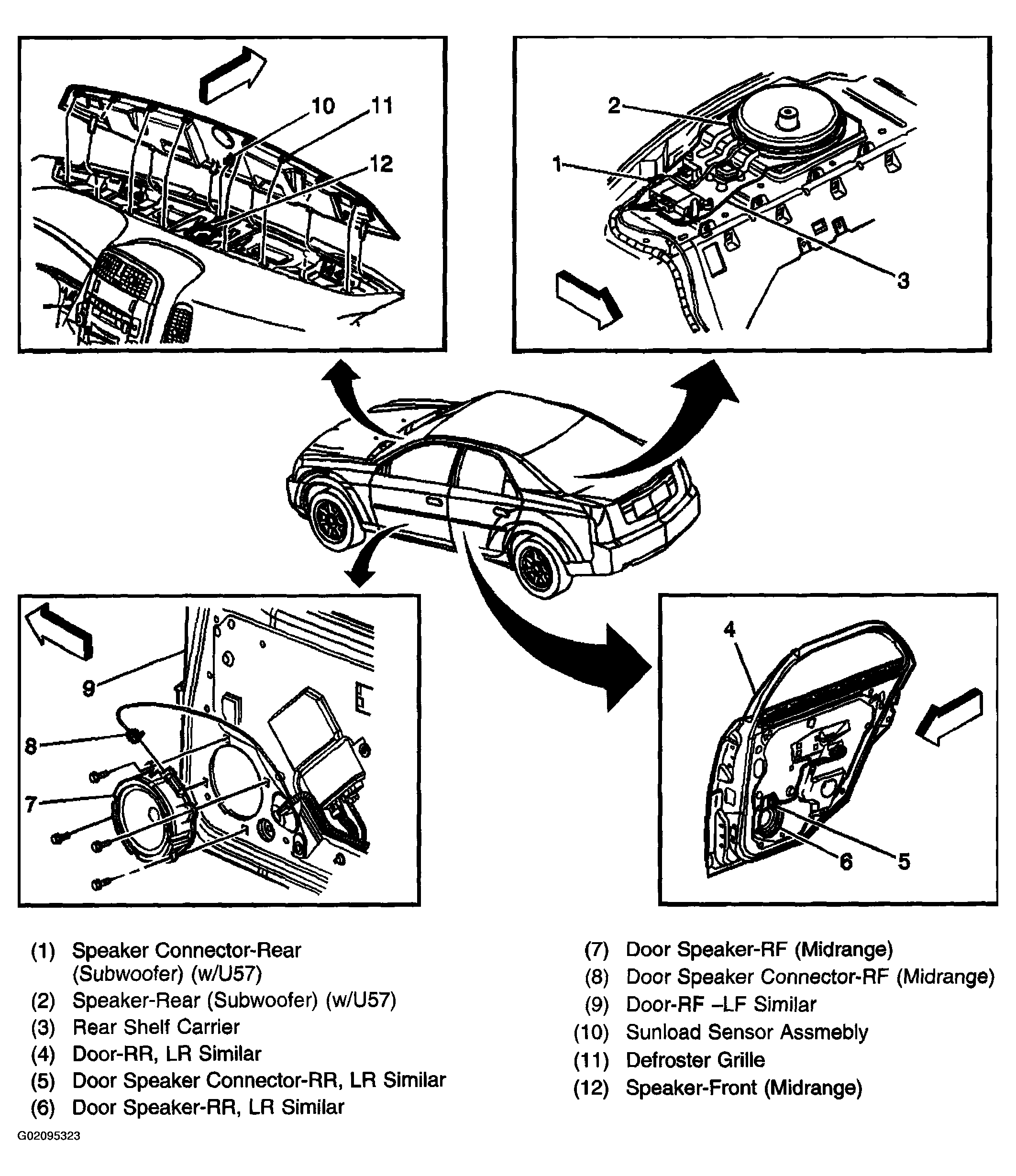

Fig 1: Locating Speakers

Courtesy of GENERAL MOTORS CORP.

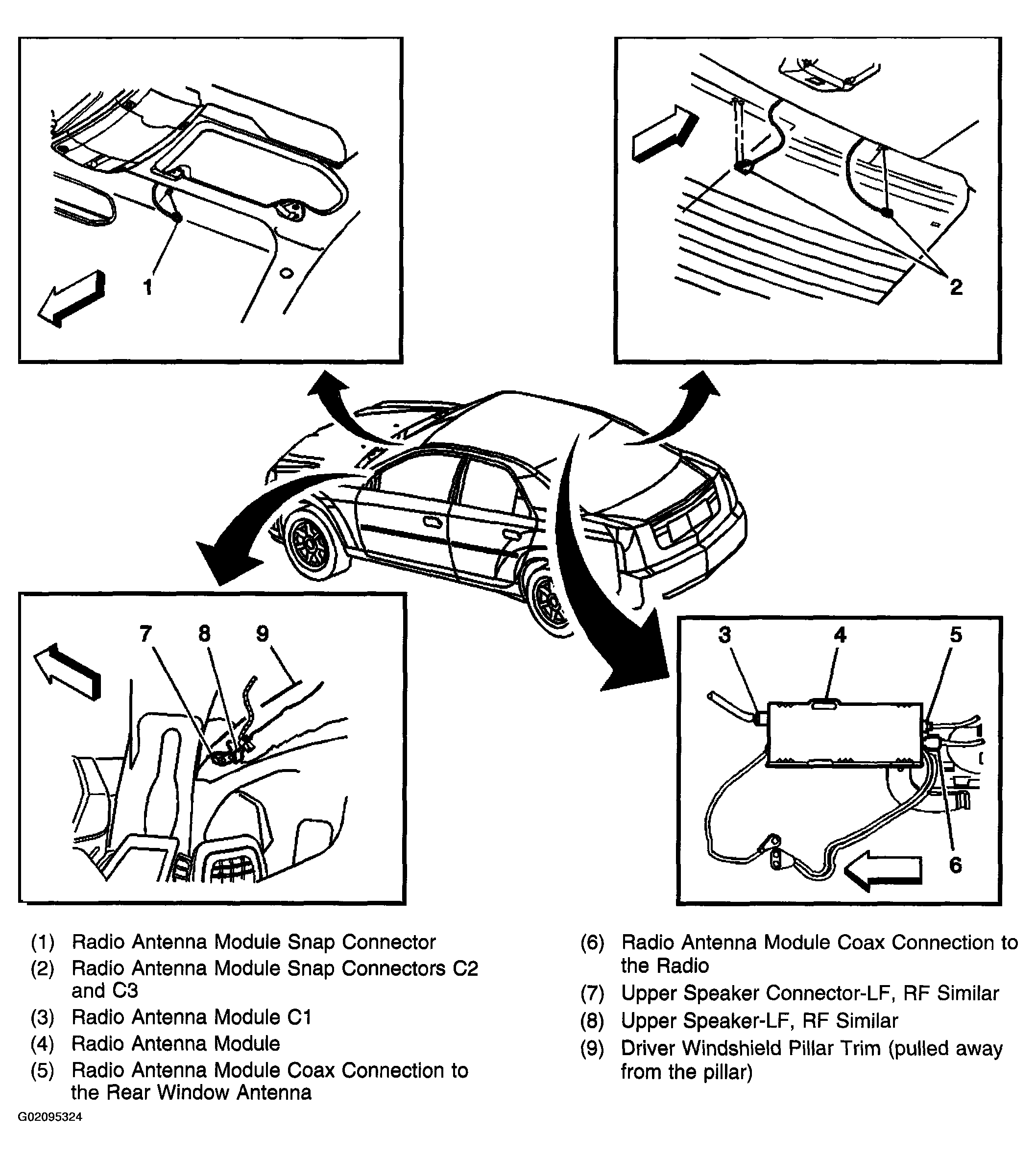

Fig 2: Locating Antennas

Courtesy of GENERAL MOTORS CORP.

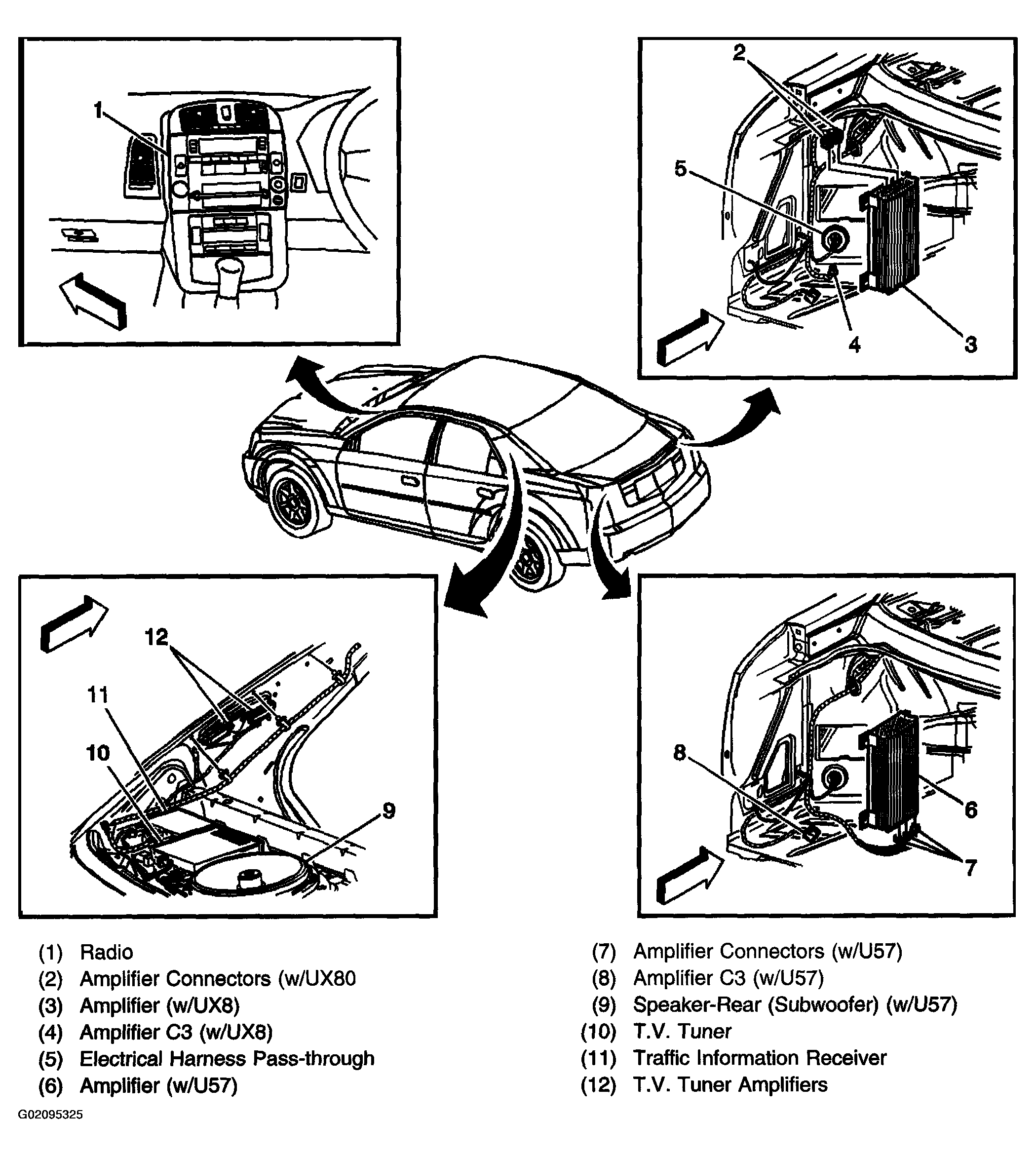

Fig 3: Locating Radio And Amplifier

Courtesy of GENERAL MOTORS CORP.
