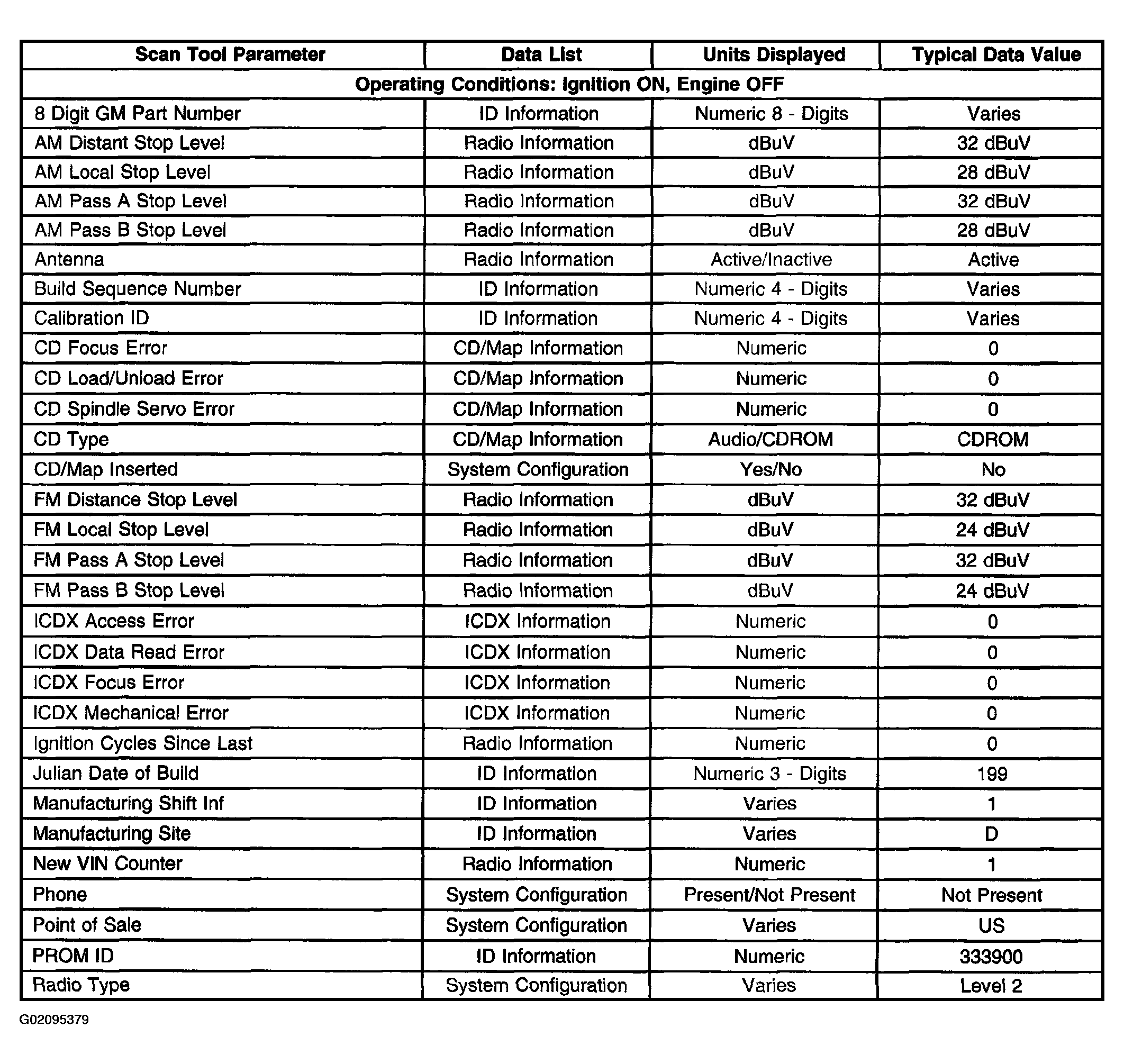

Fig 1: Radio - Scan Tool Data List (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

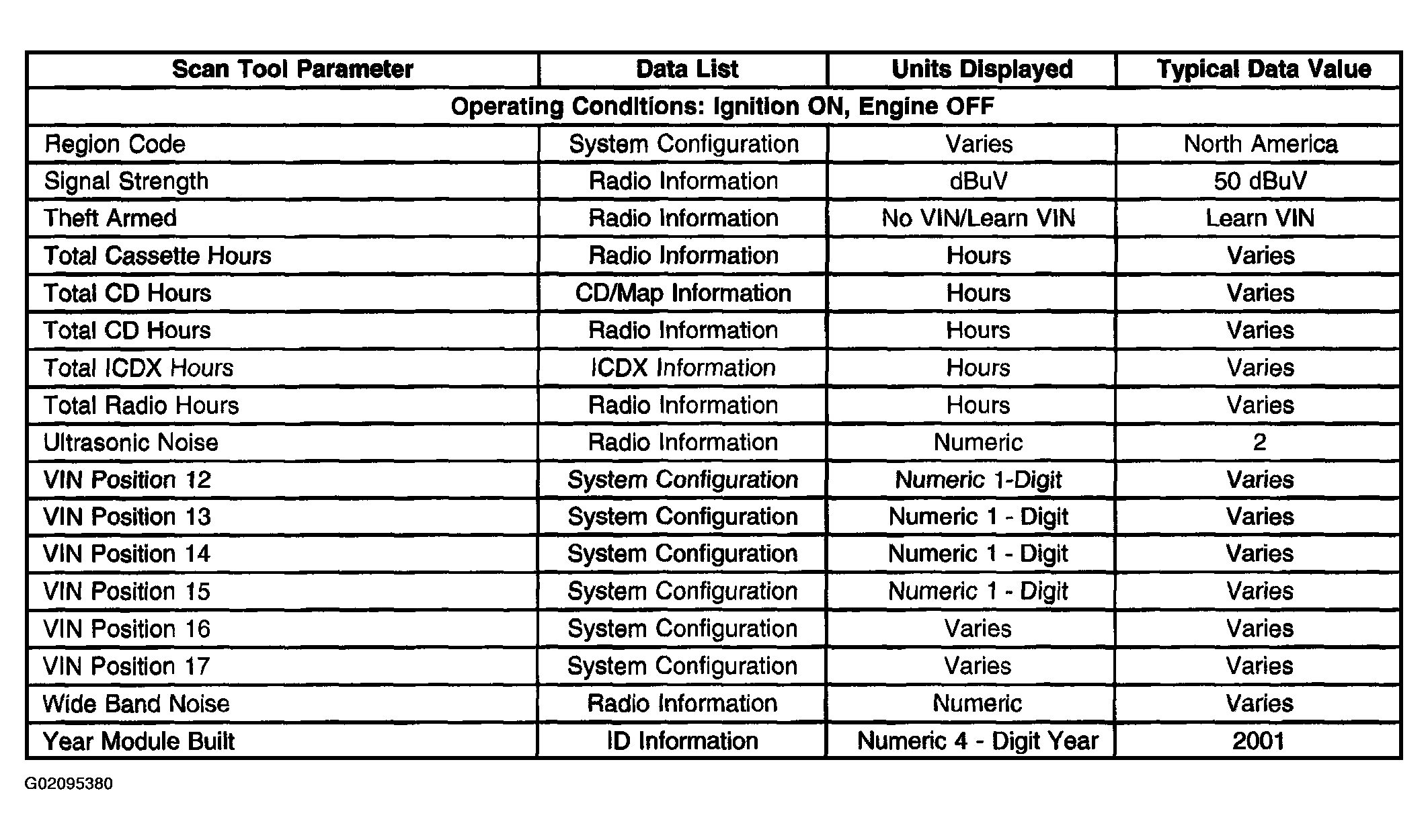

Fig 2: Radio - Scan Tool Data List (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

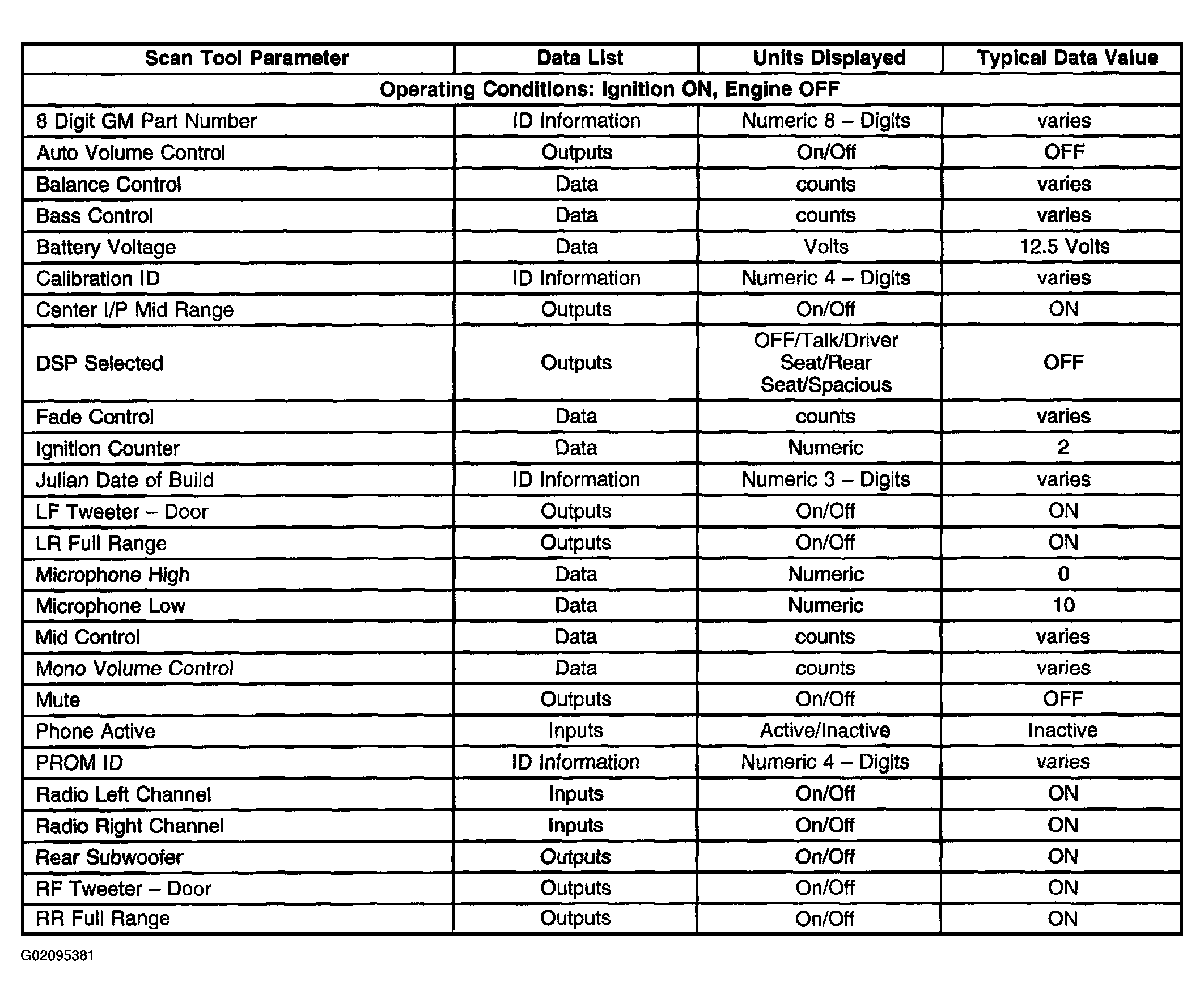

Fig 3: Bose Amplifier - Scan Tool Data List (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

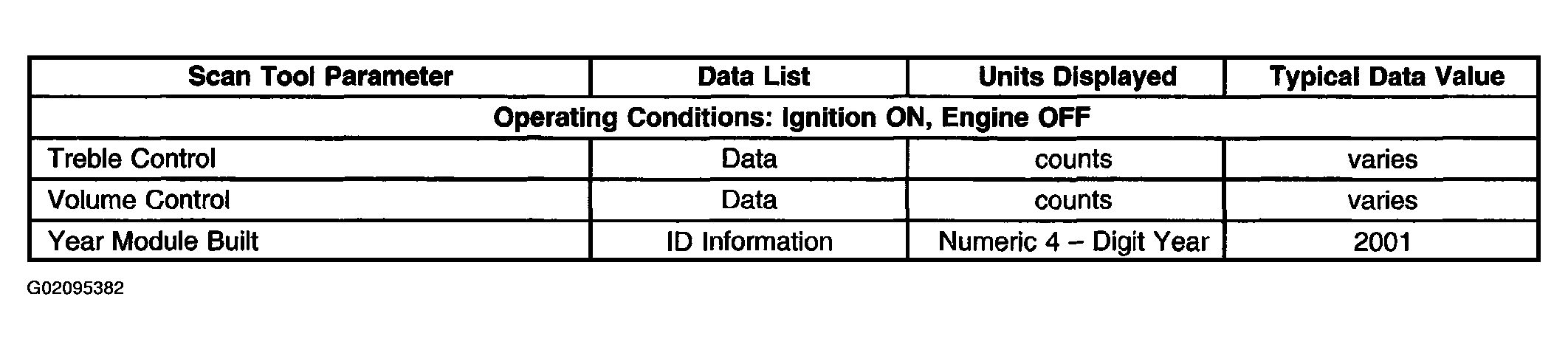

Fig 4: Bose Amplifier - Scan Tool Data List (2 Of 2)
