Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear compartment trim. Refer to COMPARTMENT SILL PLATE REPLACEMENT -- REAR in Body Rear End.
  2. Remove the nuts securing the amplifier to the vehicle.
  3. Disconnect the electrical connectors.
  4. Remove the amplifier from the vehicle.

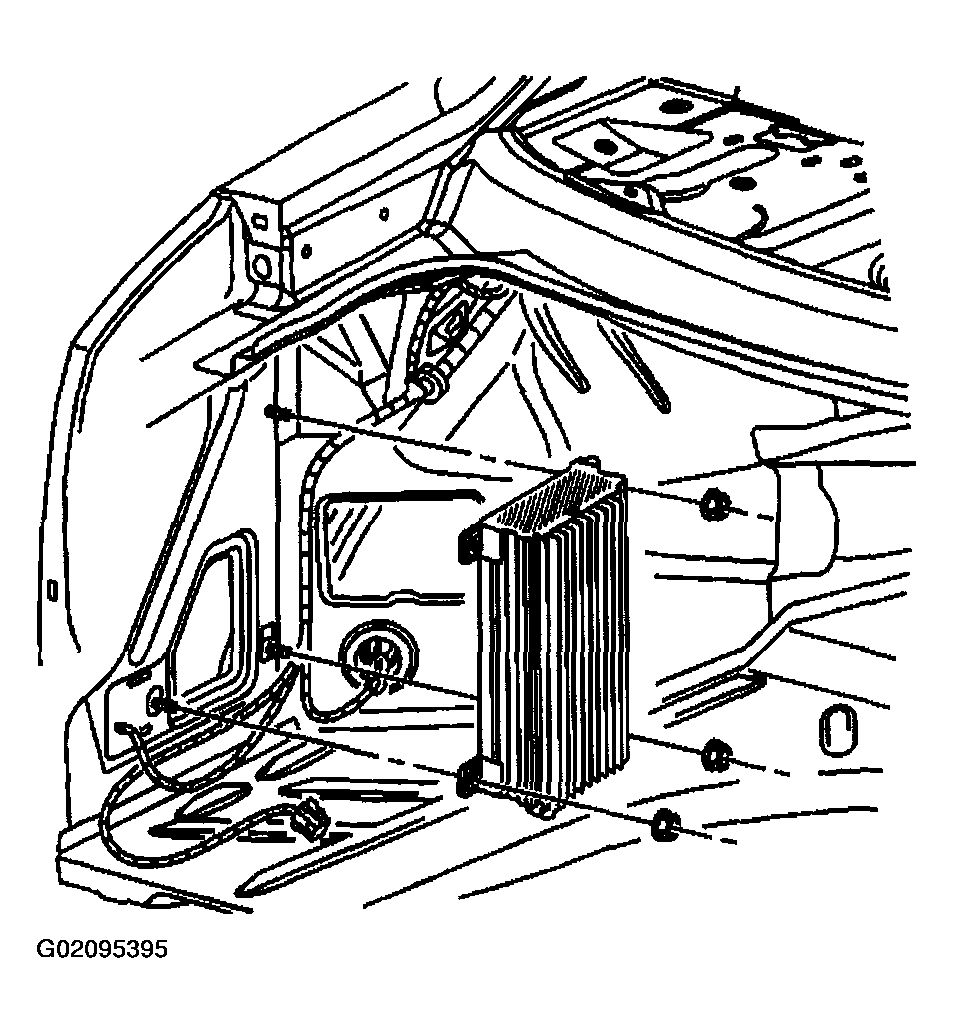

    Fig 1: Removing Amplifier
    G02095395Courtesy of GENERAL MOTORS CORP.
