Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the diversity antenna on to the mounting bracket.
  2. Connect all the electrical connectors.
  3. Install the headliner. Refer to HEADLINER REPLACEMENT in Interior Trim.

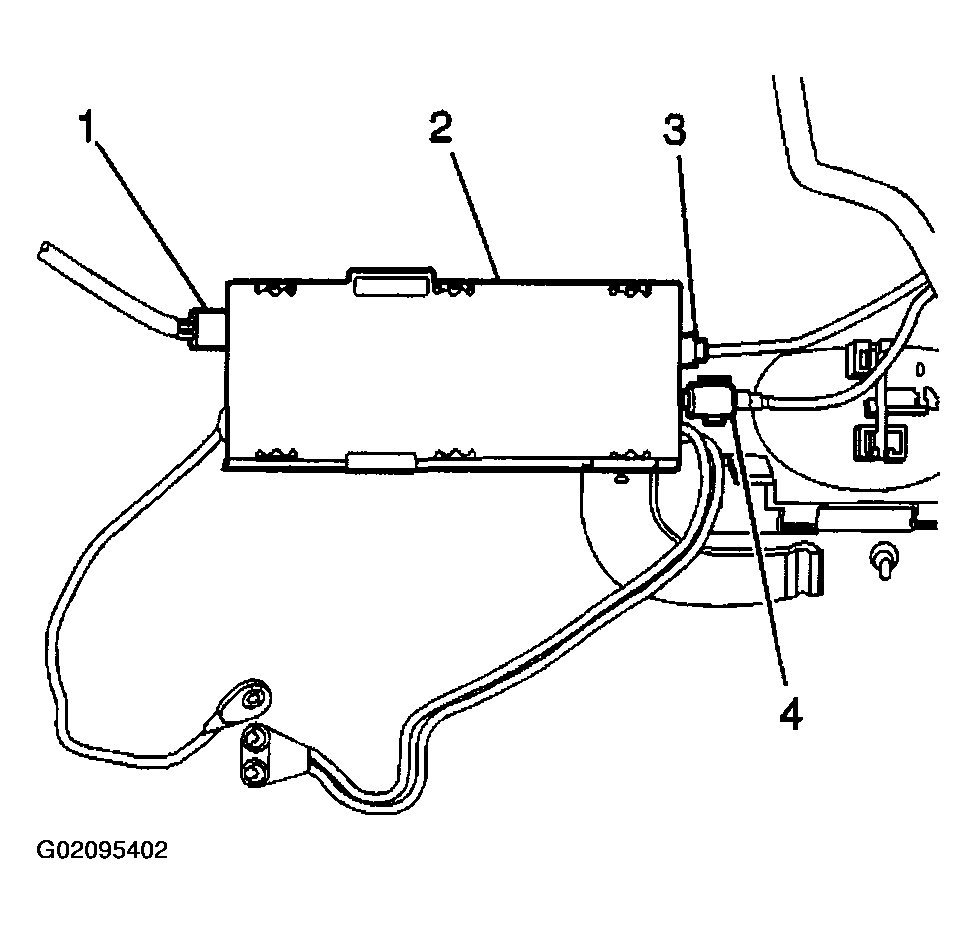

    Fig 1: Installing Antenna Module
    G02095402Courtesy of GENERAL MOTORS CORP.
