Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the microphone (1).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the microphone retaining screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in)

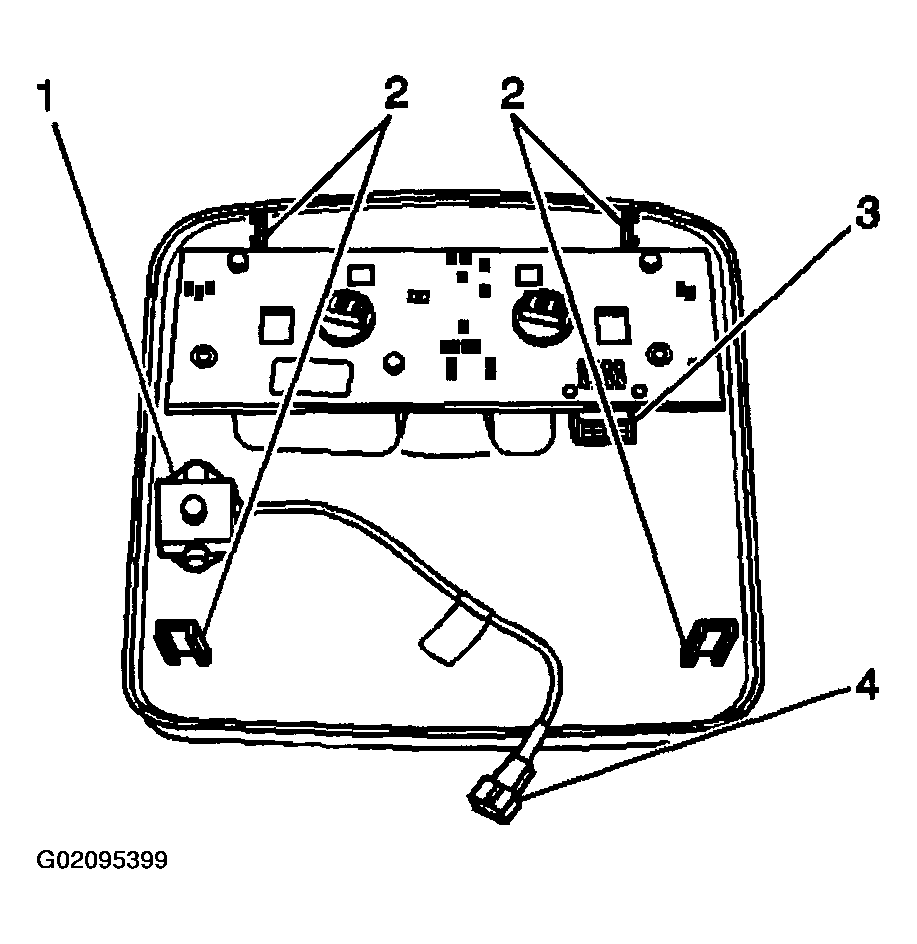

    Fig 1: Installing Microphone
    G02095399Courtesy of GENERAL MOTORS CORP.
  3. Connect the microphone electrical connector.
  4. Install the console retainers to the headliner bracket.
  5. Push up on the console to secure it to the headliner.

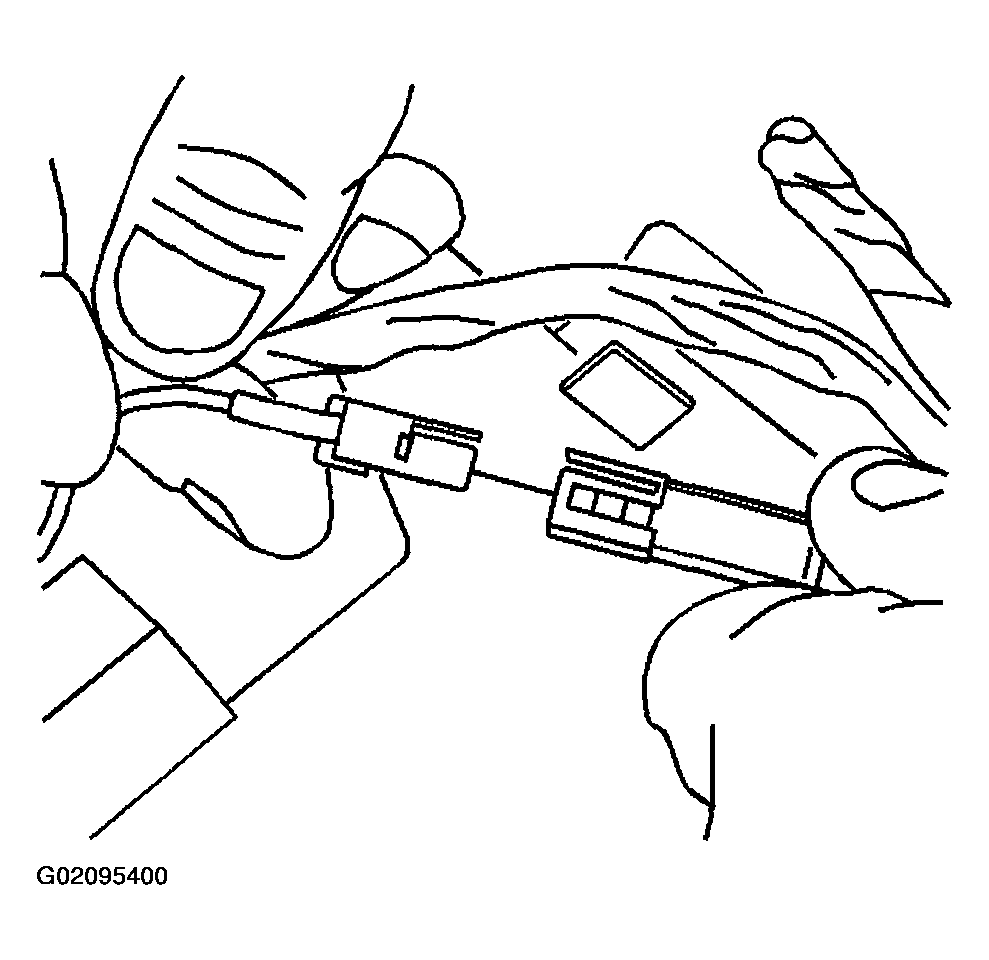

    Fig 2: Connecting Microphone Electrical Connector
    G02095400Courtesy of GENERAL MOTORS CORP.
