Navigation System Component Views

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

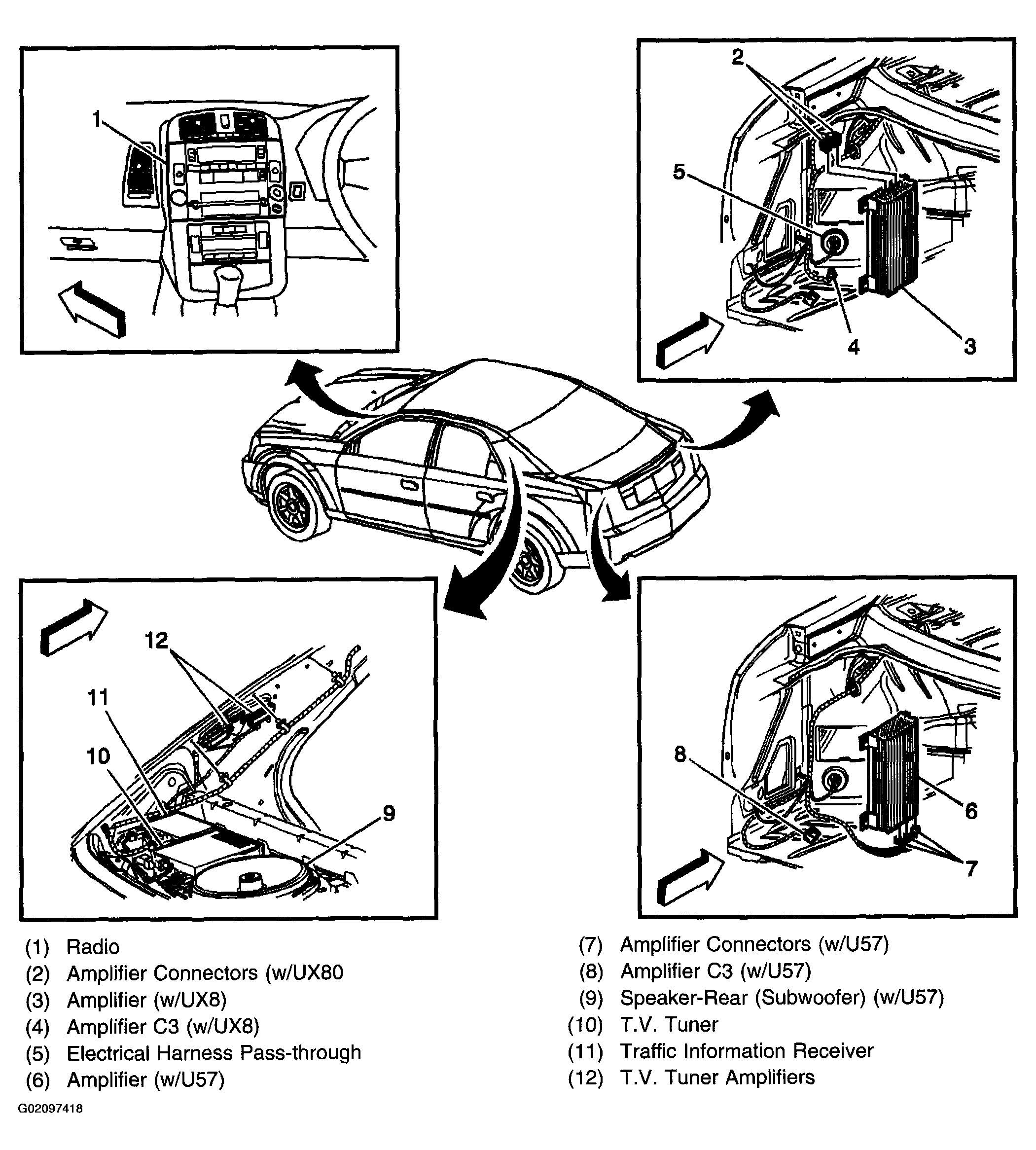

Fig 1: Component Location - Radio And Amplifier
G02097418Courtesy of GENERAL MOTORS CORP.
