Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Install the TV module (1) to the rear shelf.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the fasteners securing the TV module to the rear shelf.
Tighten

Tighten the fasteners to 9 N.m (80 lb in).

Fig 1: Installing Fasteners & TV Module To Rear Shelf
Courtesy of GENERAL MOTORS CORP.

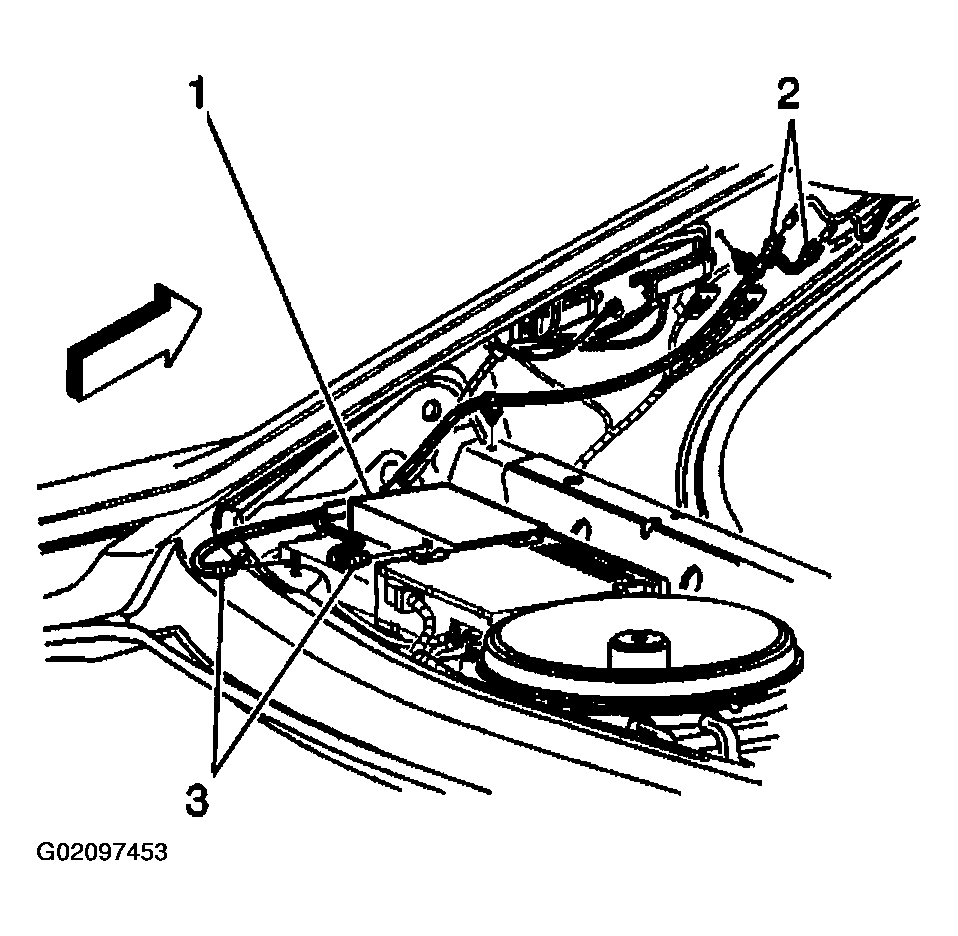

Connect the coax cables (3) to the TV module.

Fig 2: Connecting Coax Cables To TV Module
Courtesy of GENERAL MOTORS CORP.

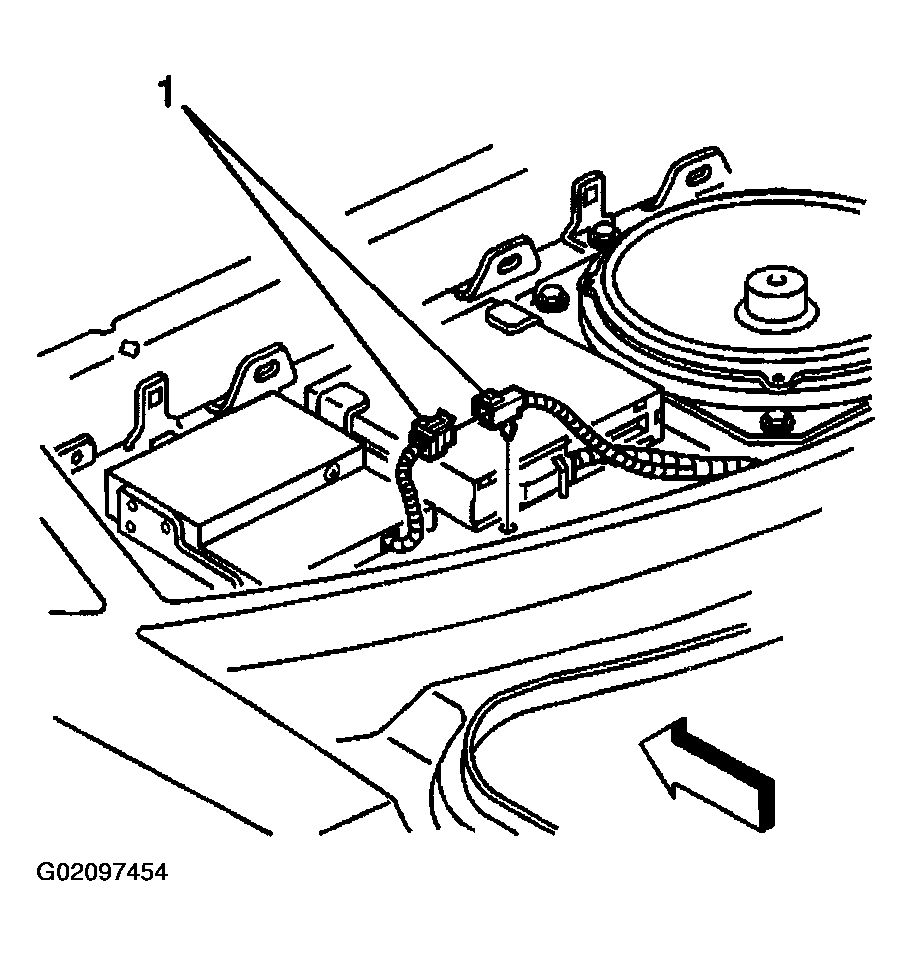

Connect the electrical connector (1).
Reinstall the rear shelf. Refer to TRIM PANEL REPLACEMENT -- REAR WINDOW SHELF in Interior Trim.

Fig 3: Connecting Electrical Connector
Courtesy of GENERAL MOTORS CORP.
