Blower Motor Control Processor Replacement (RHD): Notes

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Removal Procedure

Remove the left closeout panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT in IP, Gages, and Console.
Disconnect the electrical connector (1) from the blower motor control processor.

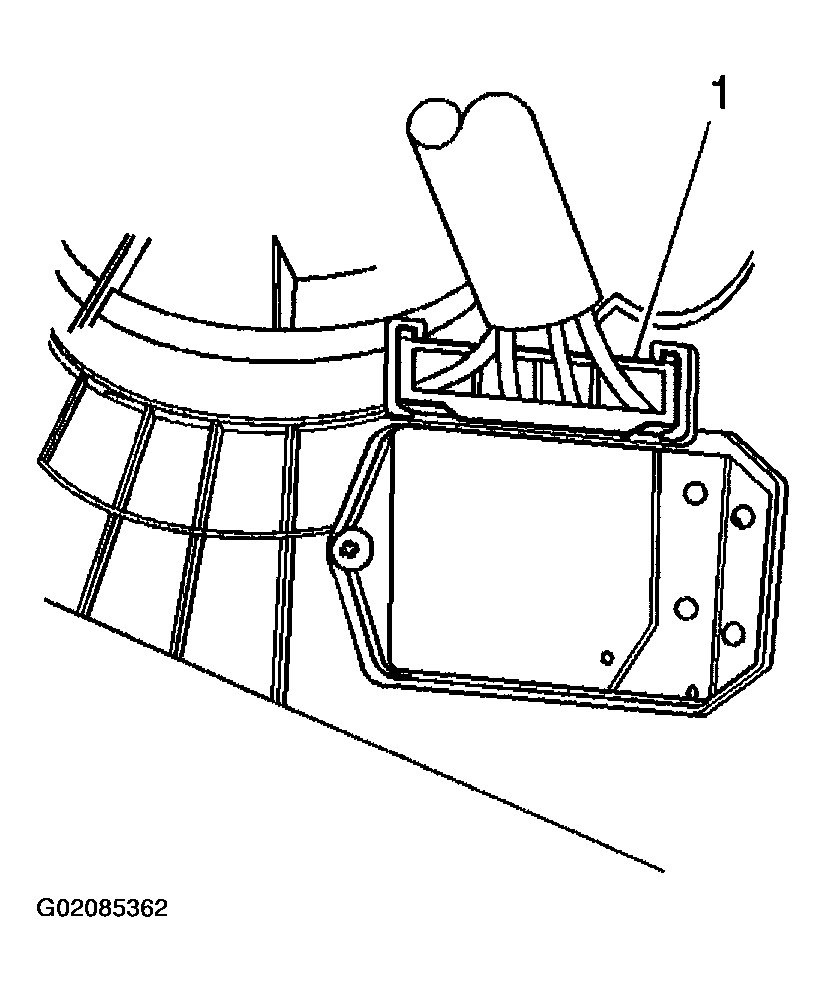

Fig 1: Blower Motor Control Processor Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Remove the blower motor control processor retaining screw (1).

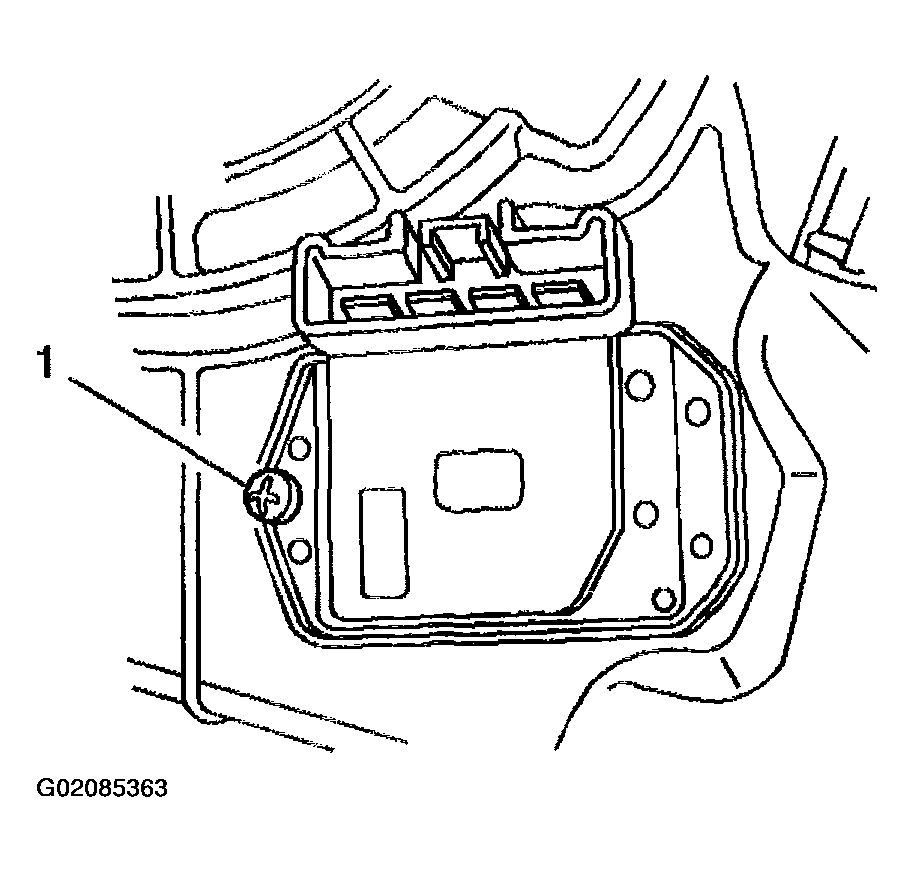

Fig 2: Blower Motor Control Processor Retaining Screw
Courtesy of GENERAL MOTORS CORP.
Remove the blower motor control processor from the vehicle.

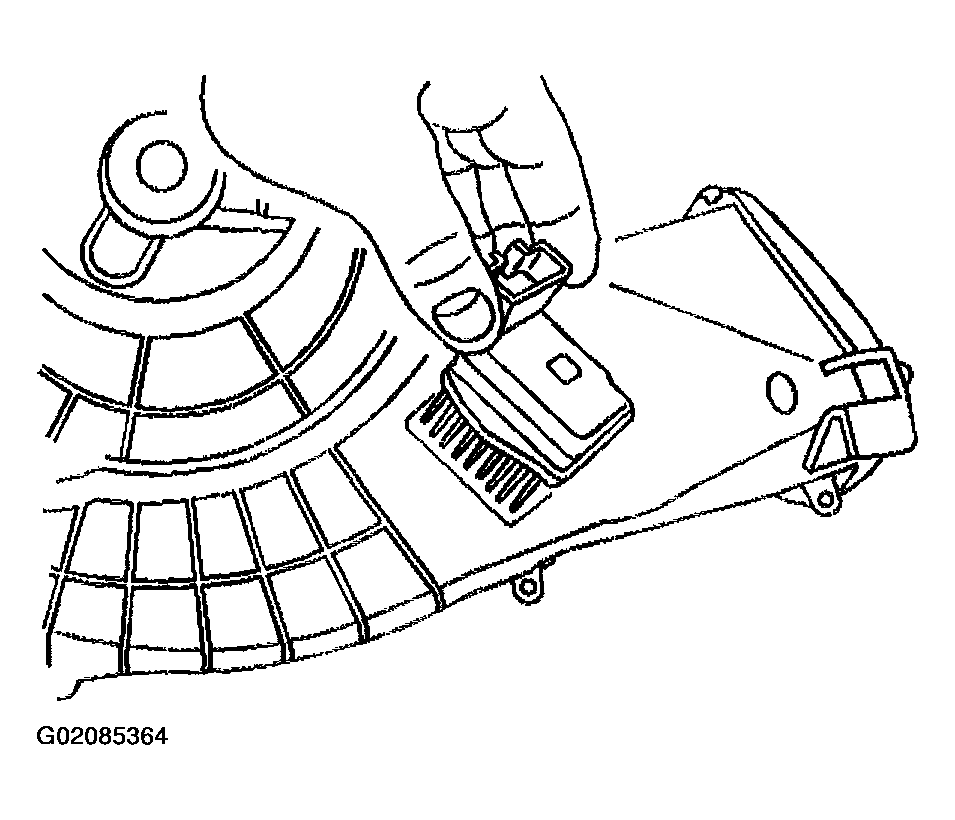

Fig 3: Blower Motor Control Processor From Vehicle
Courtesy of GENERAL MOTORS CORP.
