Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the sunload sensor electrical connector.
  2. Install the sunload sensor to the defroster grille by twisting the sensor 1/4 turn clockwise.
  3. Install the defroster grille. Refer to DEFROSTER GRILLE REPLACEMENT in Instrument Panel, Gages and Console.

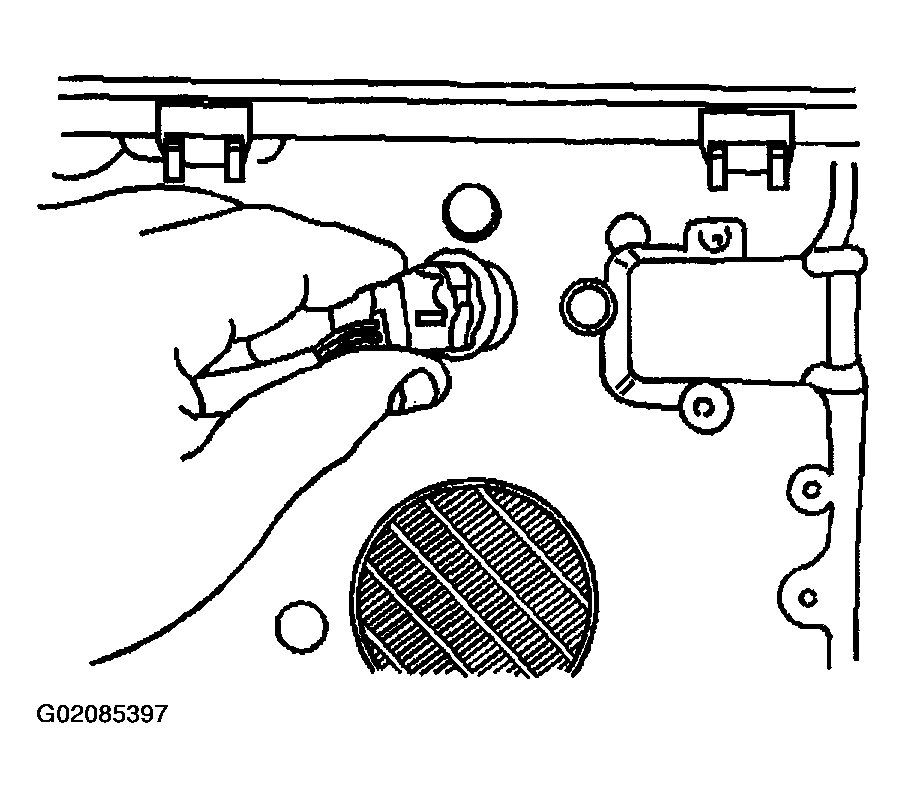

    Fig 1: Sunload Sensor Electrical Connector
    G02085397Courtesy of GENERAL MOTORS CORP.
