Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the condenser seal (1).

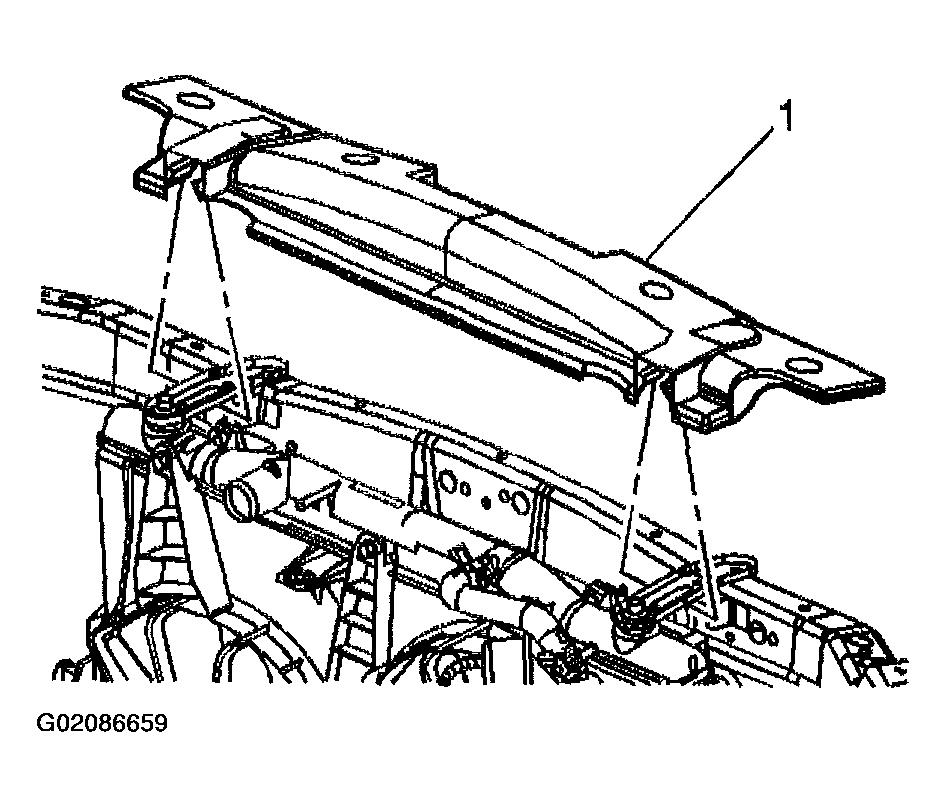

Fig 1: Removing Condenser Seal
Courtesy of GENERAL MOTORS CORP.
Remove the radiator support bolts (1).
Remove the radiator support brackets (2).

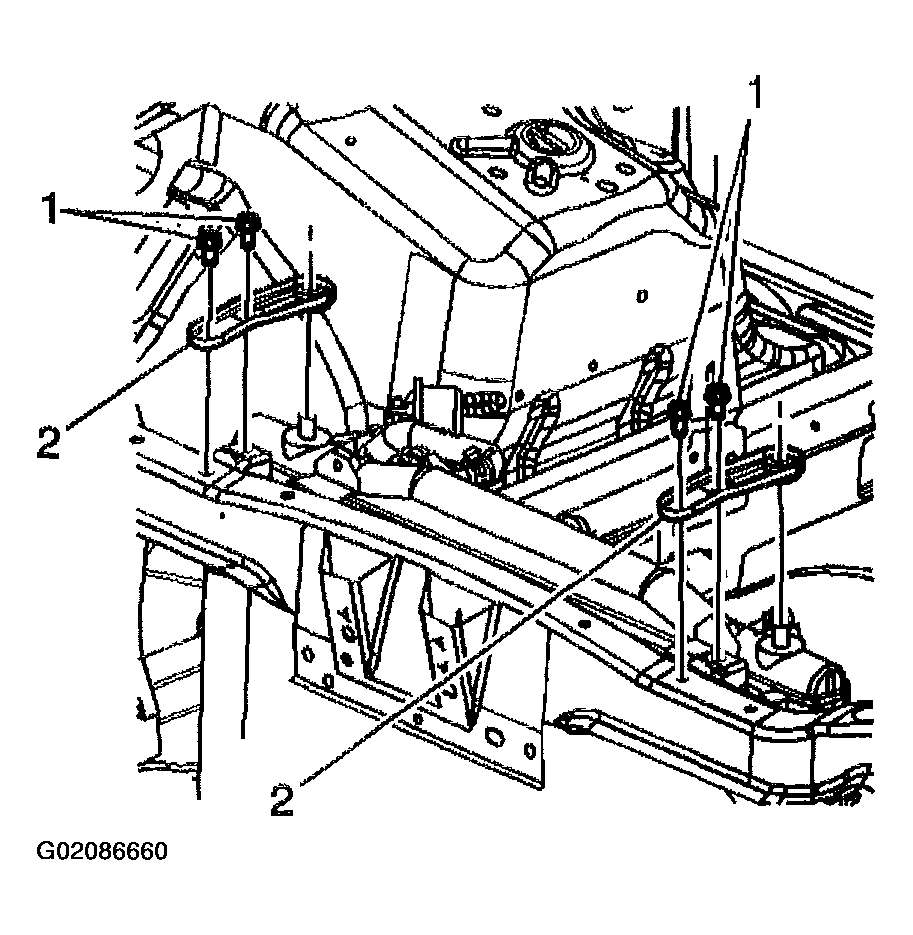

Fig 2: Removing Radiator Support Bracket & Bolts
Courtesy of GENERAL MOTORS CORP.
