Data Link Communications Component Views

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

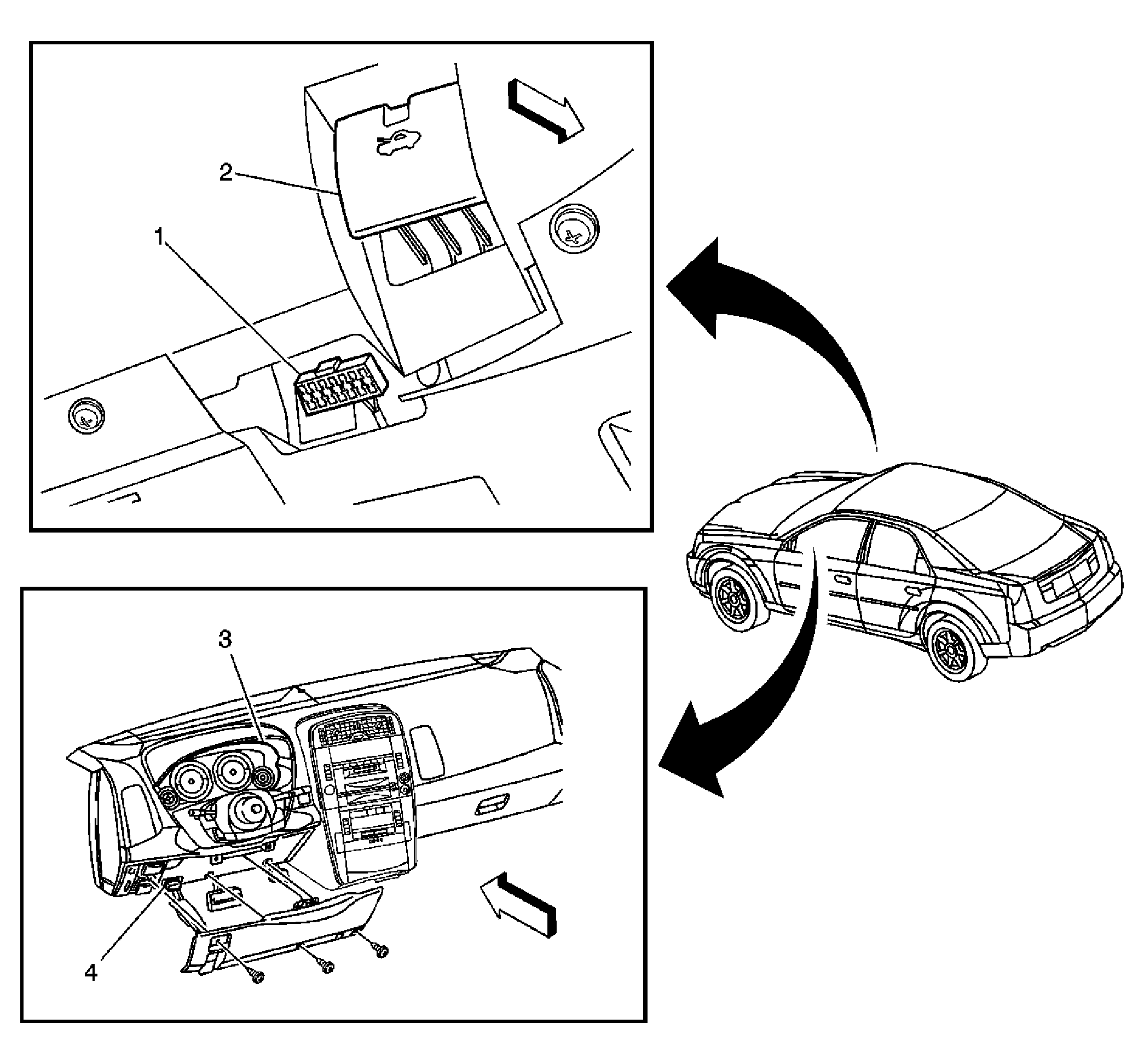

Fig 1: Data Link Communications Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	DLC Connector (RHD)
2	Hood Release Handle (RHD)
3	Instrument Panel Cluster (IPC) (LHD)
4	DLC Connector (LHD)
