ABS Component Views

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

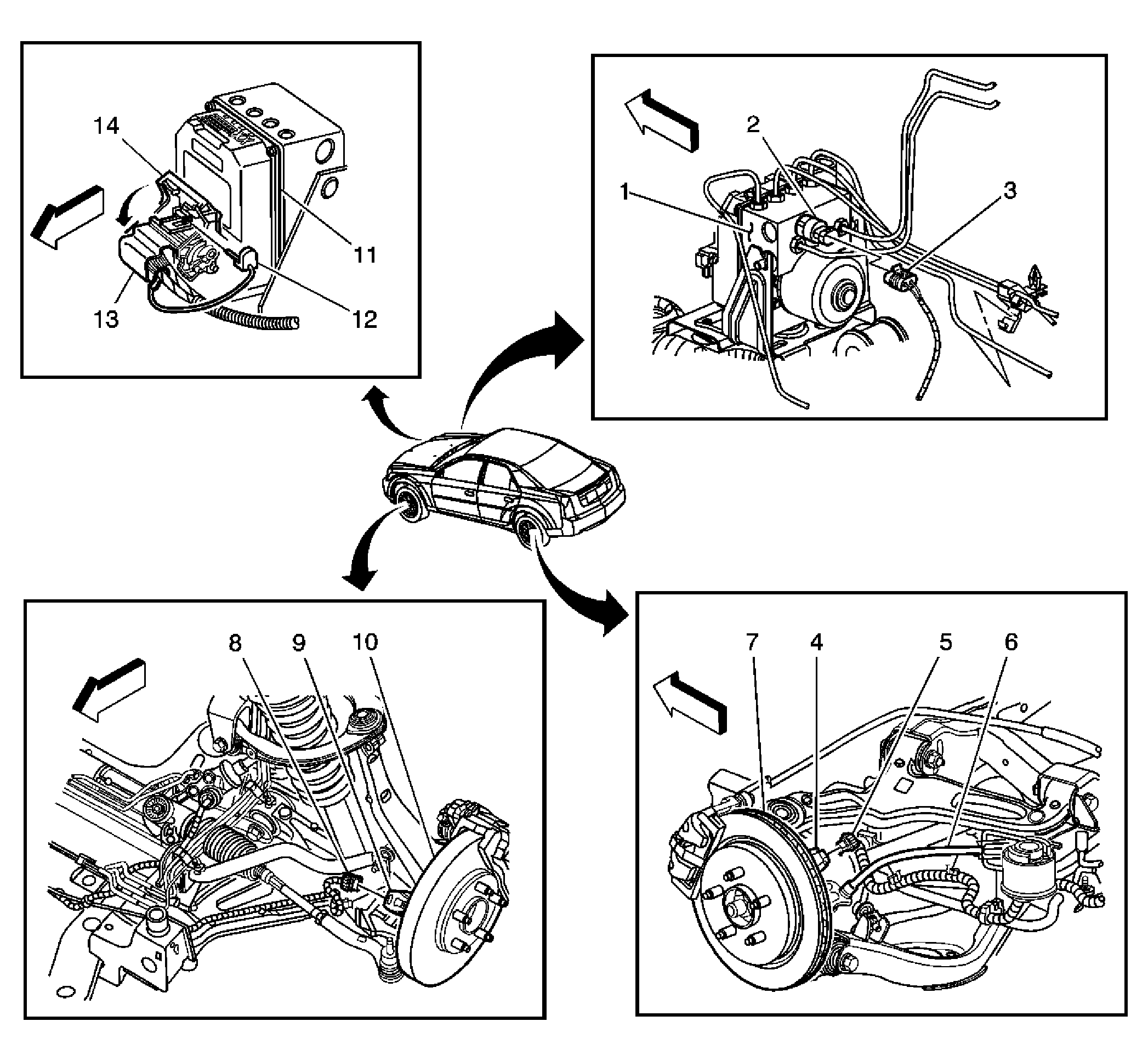

Fig 1: EBCM and Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Pressure Modulator Valve (BPMV)
2	Brake Fluid Pressure Sensor
3	Brake Fluid Pressure Sensor Connector
4	Wheel Speed Sensor (WSS) - LR (RR Similar)
5	Wheel Speed Sensor (WSS) Connector - LR (RR Similar)
6	Parking Brake Cable
7	Brake Rotor - LR (RR Similar)
8	Wheel Speed Sensor (WSS) Connector - LF (RF Similar)
9	Wheel Speed Sensor (WSS) - LF (RF Similar)
10	Brake Rotor - LF (RF Similar)
11	Electronic Brake Control Module (EBCM)
12	EBCM Connector Lock
13	EBCM Connector
14	EBCM Connector Position Assurance Retainer

Fig 2: Brake Pedal, Accelerator Pedal, BPP and APP Sensors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Accelerator Pedal Position (APP) Sensor
2	Accelerator Pedal
3	Brake Pedal
4	Brake Pedal Position (BPP) Sensor

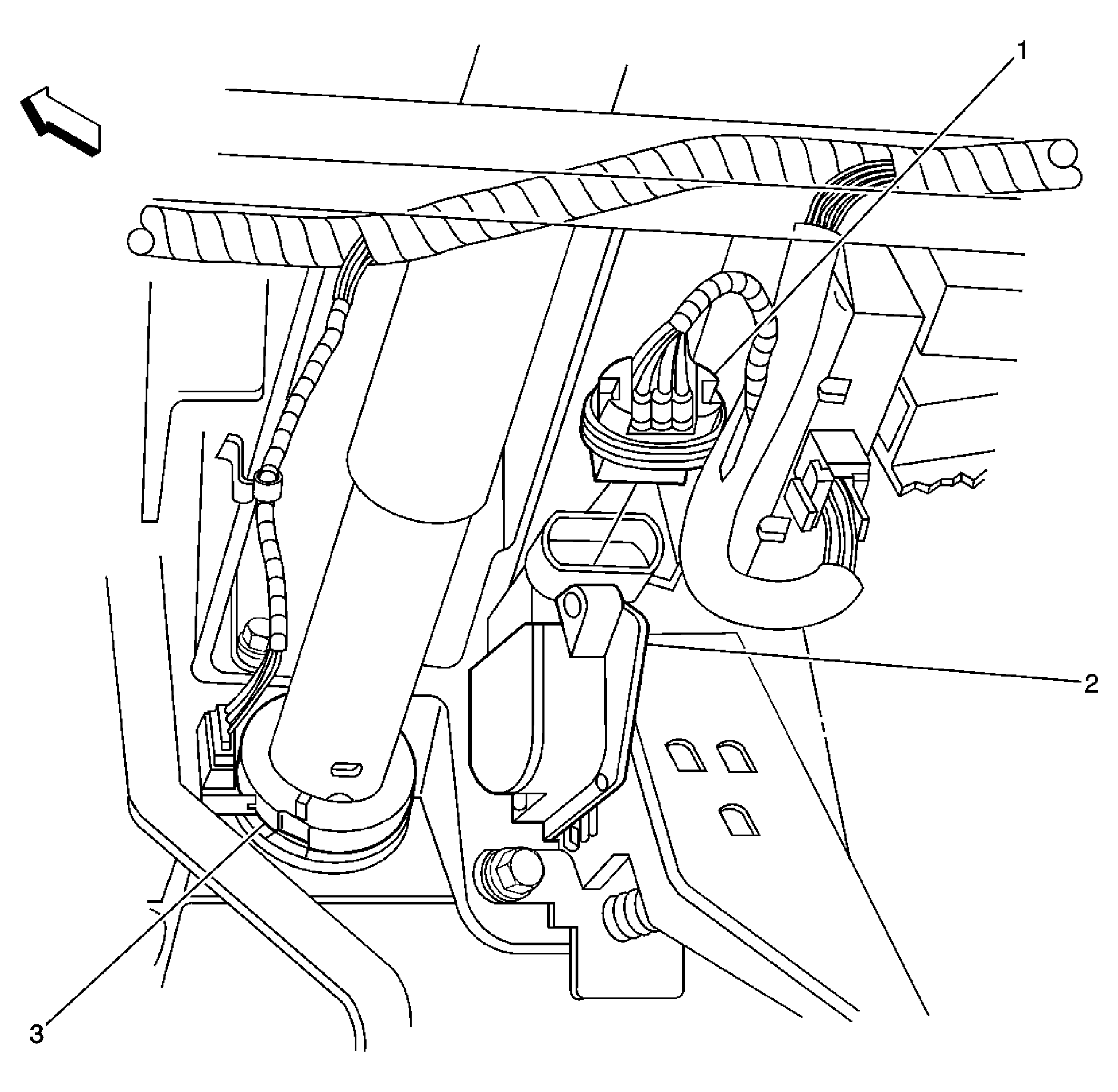

Fig 3: Steering Wheel Position Sensor (JL4)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Accelerator Pedal Position (APP) Sensor Connector
2	Accelerator Pedal Position (APP) Sensor
3	Steering Wheel Position Sensor

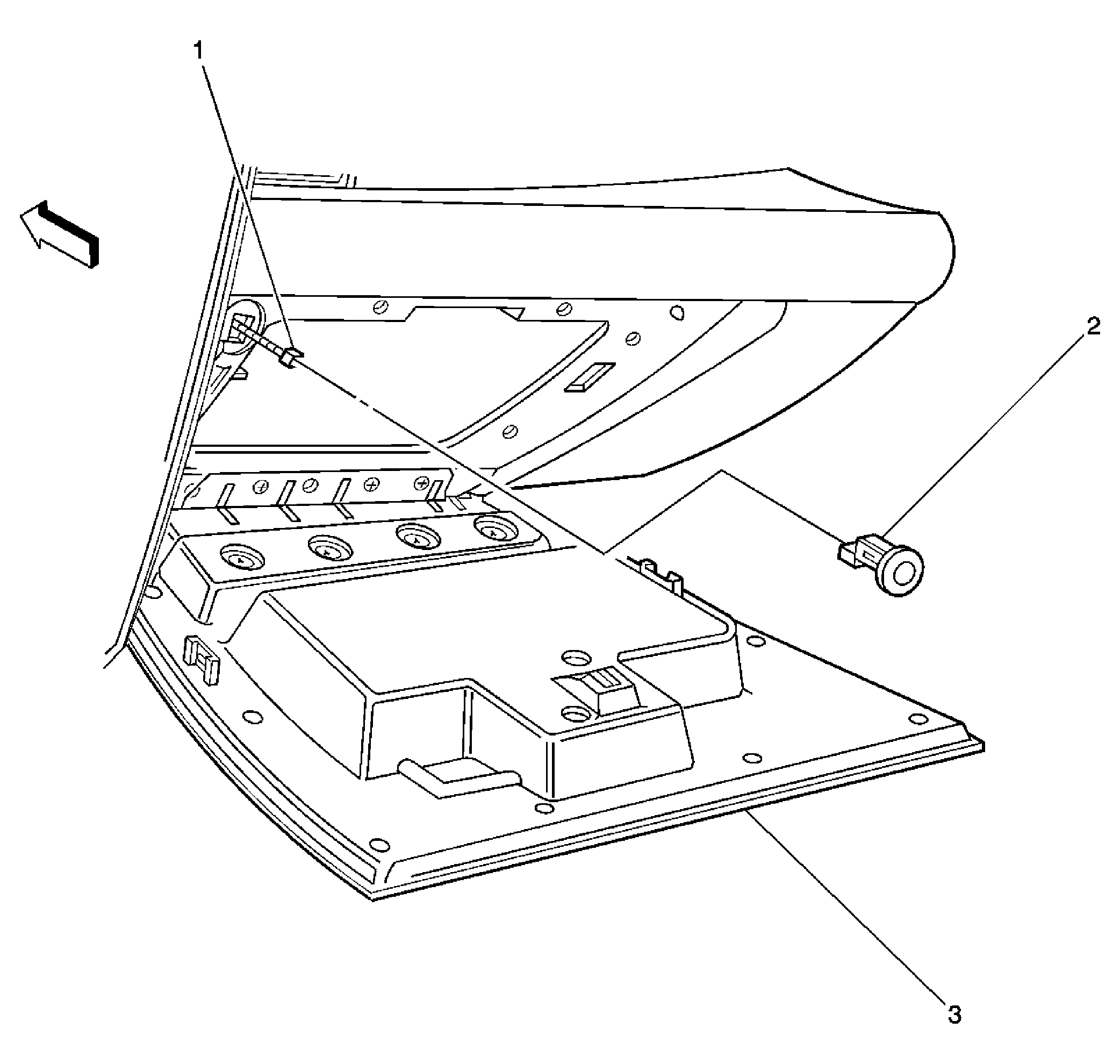

Fig 4: Traction Control Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Traction Control Switch Connector
2	Traction Control Switch
3	Glove Box

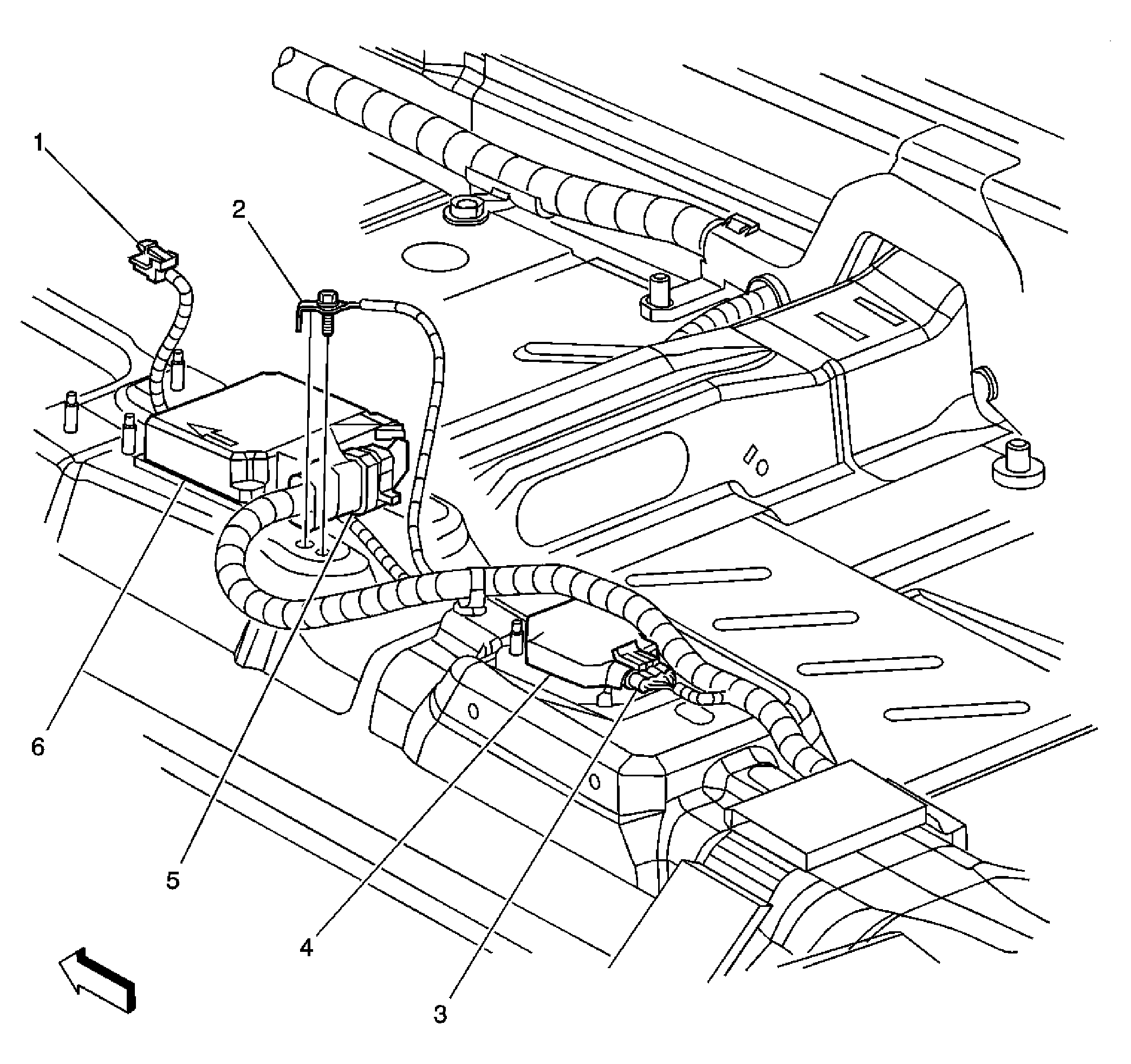

Fig 5: Passenger Compartment - Under Center Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Shift Control Assembly Connector
2	Body Harness Ground G306
3	Yaw Rate and Lateral Acceleration Sensor Connector
4	Yaw Rate and Lateral Acceleration Sensor
5	Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
6	Inflatable Restraint Sensing and Diagnostic Module (SDM)
