ABS Connector End Views

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
Brake Pedal Position (BPP) Sensor Connector End Views

GM1243663Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15332132
  • 3-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit Number Function
A BN 5360 Low Reference
B YE 5361 Brake Pedal Position (BPP) Sensor Signal
C WH 5359 5-Volt Reference

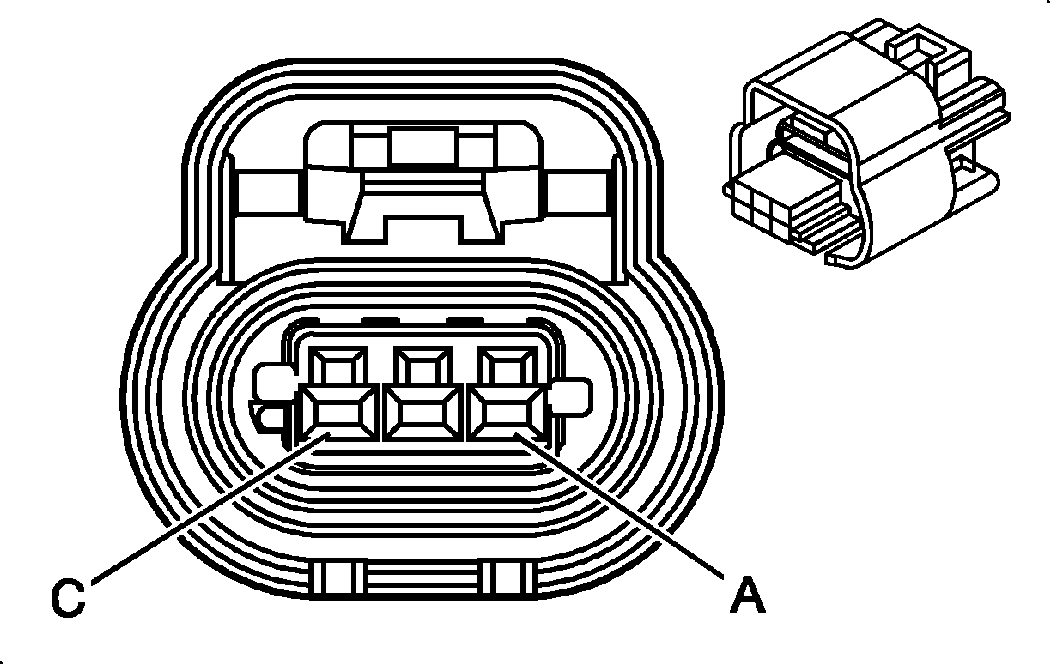

Brake Fluid Pressure Sensor Connector End Views (LA3/LY9/LY7)

GM1331456Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15393906
  • 3-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit Number Function
A GY/BK 1337 5-Volt Reference
B PU 5002 Brake Fluid Pressure Sensor Signal
C L-GN/BK 1338 Low Reference
Brake Fluid Pressure Sensor Connector End Views (LS6)

GM1243672Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 2-967642-1
  • 3-Way F Amp (BK)
Pin Wire Color Circuit Number Function
1 L-GN/BK 1338 Low Reference
2 PU 5002 Brake Fluid Pressure Sensor Signal
3 GY/BK 1337 5-Volt Reference
Electronic Brake Control Module Connector End Views (EBCM)

GM1283867Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15411019
  • 50-Way F Packard (BK)
Pin Wire Color Circuit Number Function
A RD/BK 342 Battery Positive Voltage
B RD/BK 342 Battery Positive Voltage
C PK 39 Ignition 1 Voltage
D - - Not Used
E BK 1150 Ground
F BK 1150 Ground
G GY 1787 Variable Effort Steering Actuator High Effort Control (FE3)
H WH 345 Variable Effort Steering Actuator Low Effort Control (FE3)
A1 L-BU 830 Left Front Wheel Speed Sensor Signal
A2 YE 873 Left Front Wheel Speed Sensor Low Reference
A3 D-GN 872 Right Front Wheel Speed Sensor Signal
A4 TN 833 Right Front Wheel Speed Sensor Low Reference
A5 TN 884 Left Rear Wheel Speed Sensor Signal
A6 OG 885 Left Rear Wheel Speed Sensor Low Reference
A7 BN 882 Right Rear Wheel Speed Sensor Signal
A8 WH 883 Right Rear Wheel Speed Sensor Low Reference
A9 - - Not Used
A10 D-BU 1537 ABS Indicator Signal
A11 - - Not Used
A12 YE/BK 5270 Traction Control Data Signal (LA3/LY9/LY7)
A13 PU 1807 Class 2 Serial Data
A14 PU 1807 Class 2 Serial Data
B1-B2 - - Not Used
B3 YE 5361 Brake Pedal Position (BPP) Sensor Signal
B4-B5 - - Not Used
B6 TN/BK 464 Delivered Torque Signal
B7 - - Not Used
B8 OG/BK 463 Requested Torque Signal
B9-B12 - - Not Used
B13 L-GN/BK 1338 Low Reference
B14 GY/BK 1337 5-Volt Reference
C1-C2 - - Not Used
C3 OG 5371 BAS Relay Coil Supply Voltage
C4 - - Not Used
C5 GY 847 Extended Travel Brake Switch Signal
C6 L-BU 1764 Steering Wheel Position Signal B (JL4)
C7 L-GN 1763 Steering Wheel Position Signal A (JL4)
C8 D-BU 716 Yaw Rate Sensor Signal (JL4)
C9 L-BU 715 Lateral Accelerometer Signal (JL4)
C10 PU 5002 Brake Fluid Pressure Sensor Signal
C11 - - Not Used
C12 BN 5360 Low Reference
C13 WH 5359 5-Volt Reference
C14 - - Not Used
Steering Wheel Position Sensor Connector End Views (JL4&J56)

GM40427Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064978
  • 6-Way F Micro-Pack 100 Series (GY)
Pin Wire Color Circuit Number Function
1 GY/BK 1337 5-Volt Reference
2 L-GN/BK 1338 Low Reference
3-4 - - Not Used
5 L-GN 1763 Steering Wheel Position Signal A
6 L-BU 1764 Steering Wheel Position Signal B
Traction Control Switch Connector End Views

GM280768Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052832
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit Number Function
A BN/WH 1571 Traction Control Switch Signal
B BK 350 Ground
Wheel Speed Sensor (WSS) Connector End Views - LF

GM537107Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052644
  • 2-Way F Metri-Pack 150 (L-GY)
Pin Wire Color Circuit Number Function
A L-BU 830 Left Front Wheel Speed Sensor Signal
B YE 873 Left Front Wheel Speed Sensor Low Reference
Wheel Speed Sensor (WSS) Connector End Views - LR

GM537107Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052644
  • 2-Way F Metri-Pack 150 Series (L-GY)
Pin Wire Color Circuit Number Function
A TN 884 Left Rear Wheel Speed Sensor Signal
B OG 885 Left Rear Wheel Speed Sensor Low Reference
Wheel Speed Sensor (WSS) Connector End Views - RF

GM537107Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052644
  • 2-Way F Metri-Pack 150 (L-GY)
Pin Wire Color Circuit Number Function
A D-GN 872 Right Front Wheel Speed Sensor Signal
B TN 833 Right Front Wheel Speed Sensor Low Reference
Wheel Speed Sensor (WSS) Connector End Views - RR

GM537107Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052644
  • 2-Way F Metri-Pack 150 Series (L-GY)
Pin Wire Color Circuit Number Function
A BN 882 Right Rear Wheel Speed Sensor Signal
B WH 883 Right Rear Wheel Speed Sensor Low Reference
Yaw Rate and Lateral Acceleration Sensor Connector End Views (JL4)

GM647974Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326822
  • 5-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit Number Function
A - - Not Used
B GY/BK 1337 5-Volt Reference
C D-BU 716 Yaw Rate Sensor Signal
D L-GN/BK 1338 Low Reference
E L-BU 715 Lateral Accelerometer Signal
