Cooling System Component Views

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

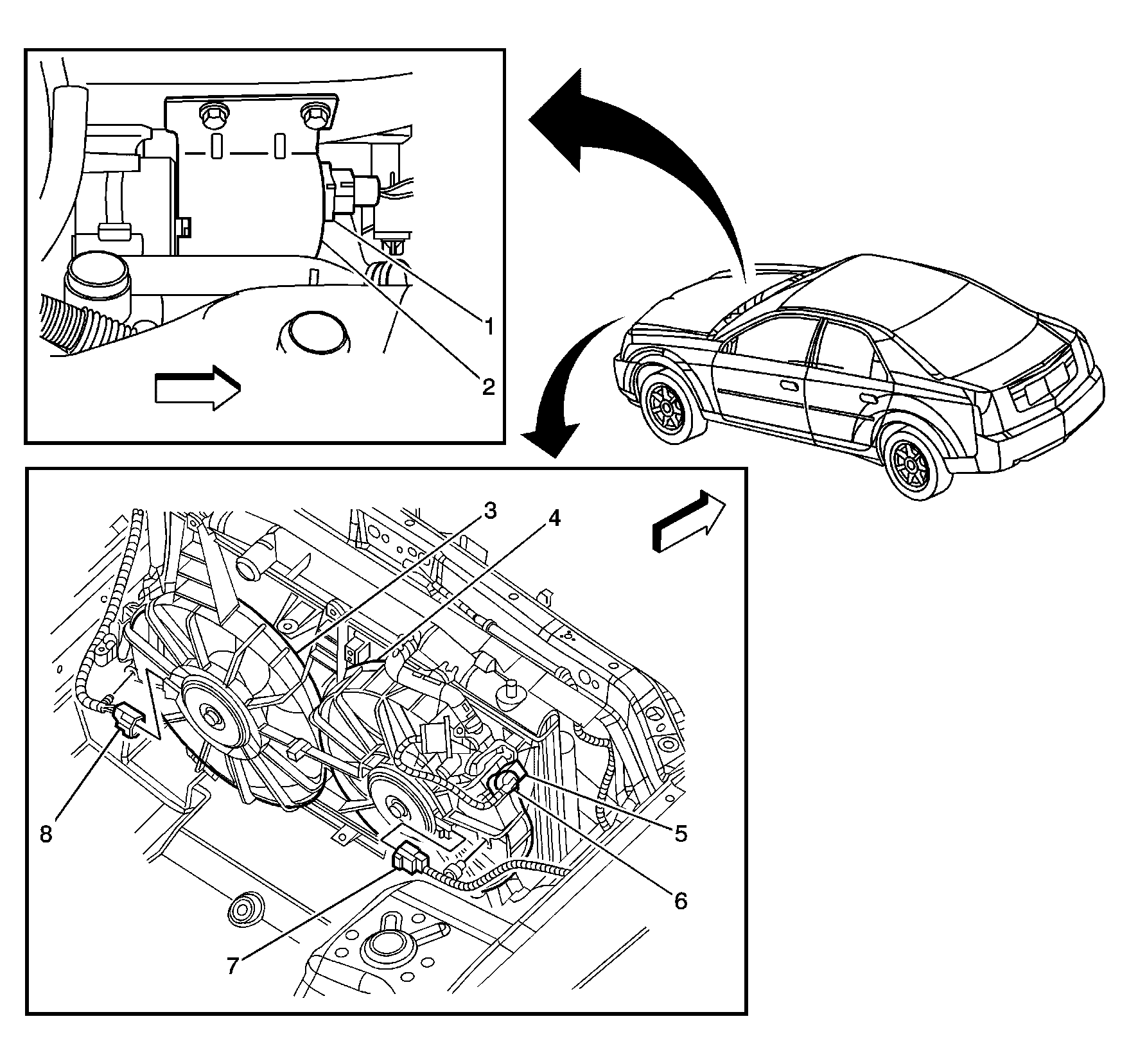

Fig 1: Cooling Fans, Coolant Bypass Valve and Afterboil Coolant Pump Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	After Boil Coolant Pump Connector (LY9/LA3)
2	After Boil Coolant Pump (LY9/LA3)
3	Cooling Fan - Left
4	Cooling Fan - Right
5	Coolant Bypass Valve (LY9/LA3) (Connector for Right Fan LS6)
6	Coolant Bypass Valve Connector (LY9/LA3) (Connector for Right Fan LS6)
7	Cooling Fan - Right Connector
8	Cooling Fan - Left Connector

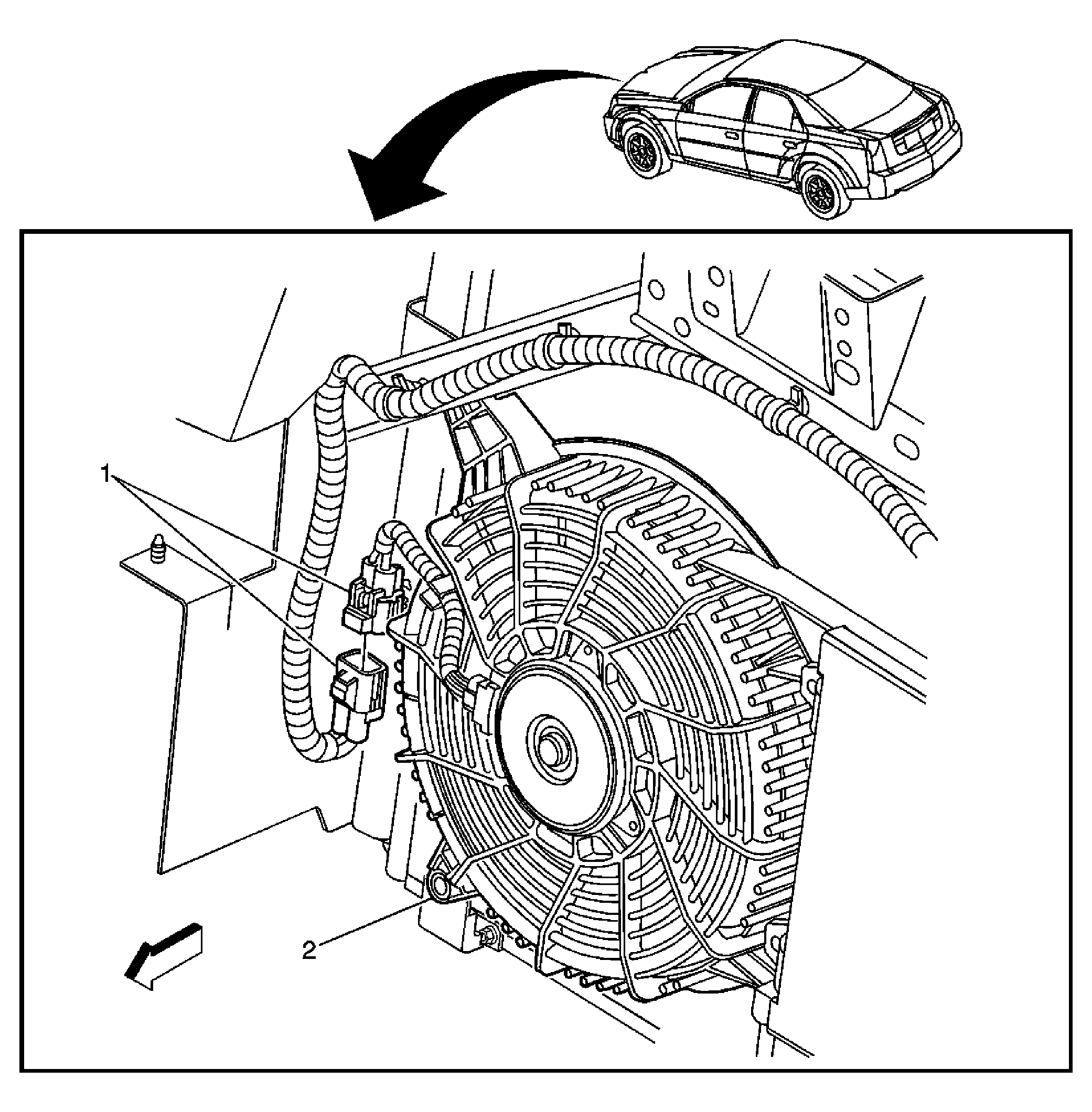

Fig 2: Cooling Fan Component View - Auxiliary (Export w/V92)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cooling Fan - Auxiliary Connector
2	Cooling Fan - Auxiliary

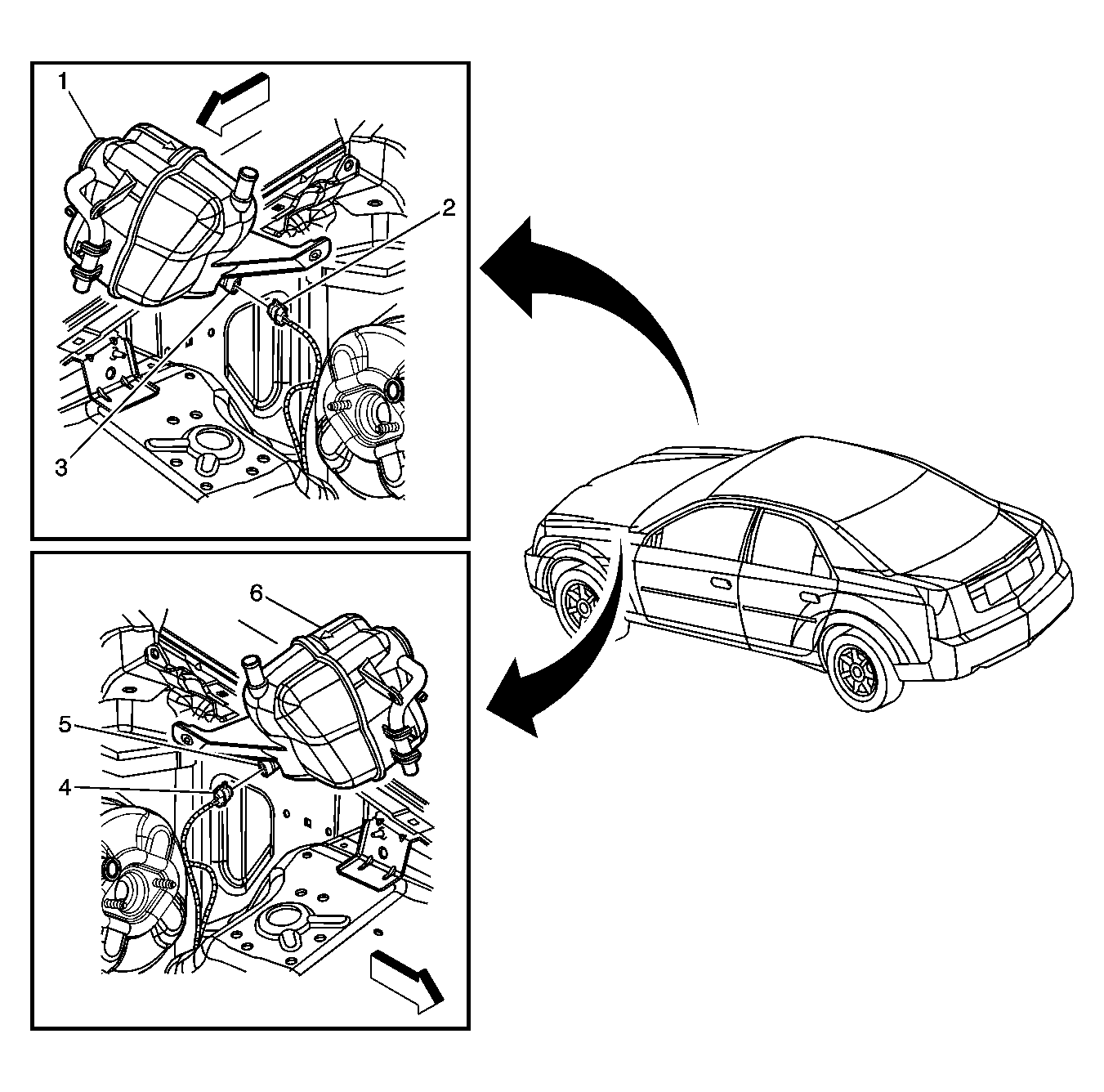

Fig 3: Coolant Surge Tank Components View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Coolant Surge Tank (RHD)
2	Coolant Level Switch Connector (RHD)
3	Coolant Level Switch (RHD)
4	Coolant Level Switch Connector (LHD)
5	Coolant Level Switch (LHD)
6	Coolant Surge Tank (LHD)
