Power Roof Systems Component Views
WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

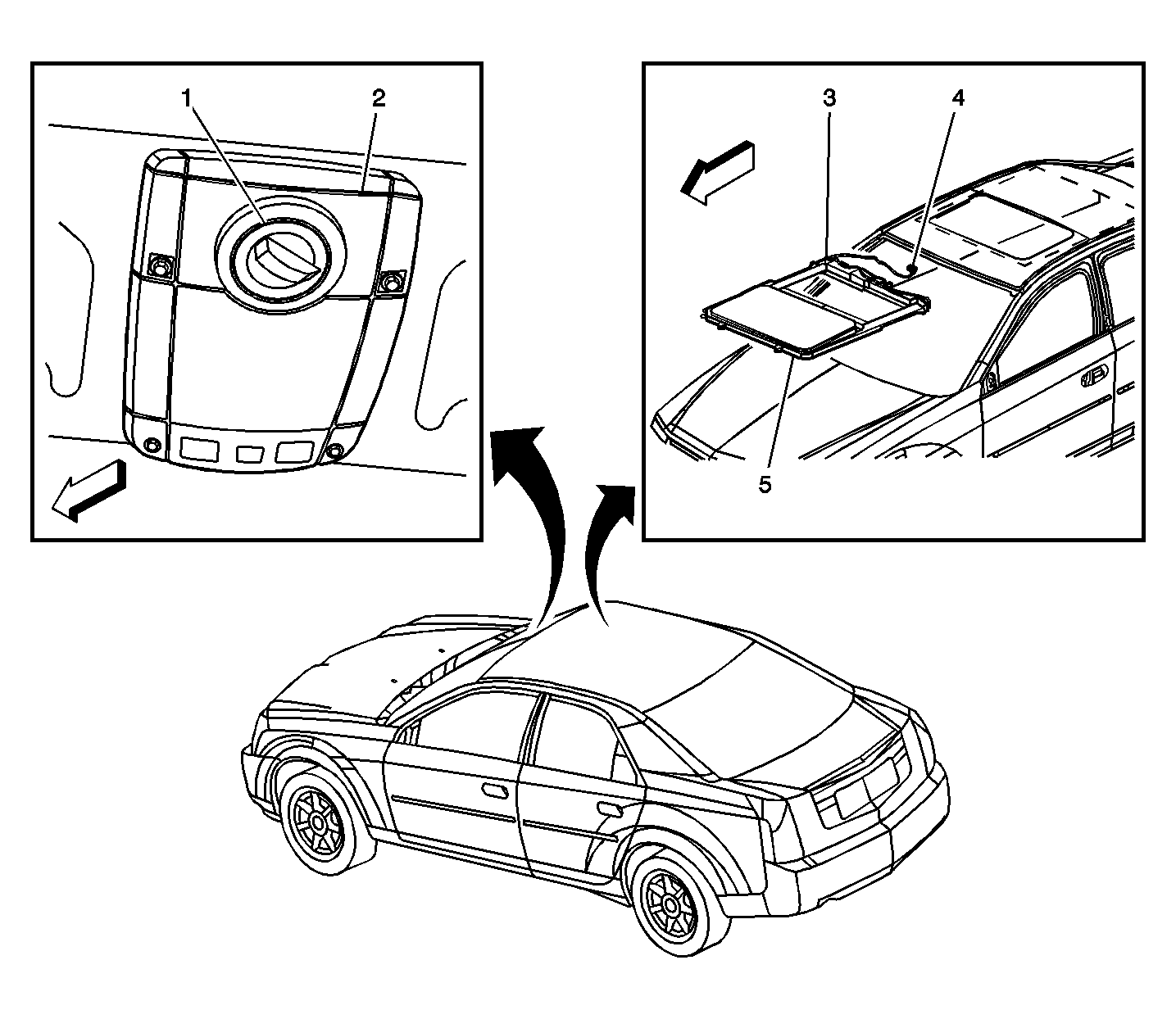

| Callout |
Component Name |
| 1 |
Sunroof Control Switch |
| 2 |
Overhead Console |
| 3 |
Sunroof Motor and Sunroof Module |
| 4 |
Sunroof Module Connector |
| 5 |
Sunroof Control Module |
Courtesy of GENERAL MOTORS CORP.

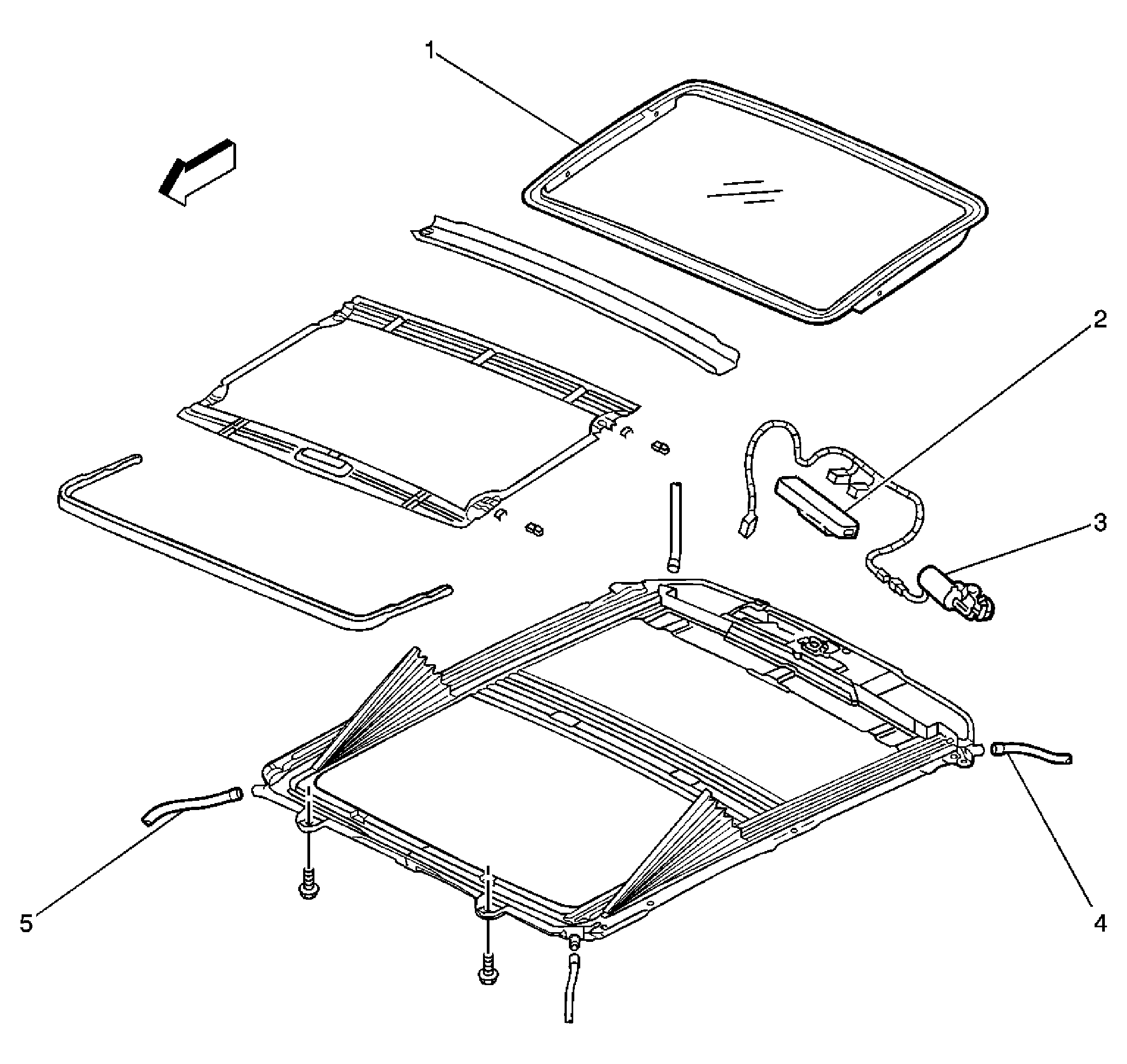

| Callout |
Component Name |
| 1 |
Sunroof Glass Panel |
| 2 |
Sunroof Module |
| 3 |
Sunroof Motor (w/Limit Switch and Obstruction Sensors) |
| 4 |
Sunroof Rear Drain Hose |
| 5 |
Sunroof Front Drain Hose |
