Air Temperature Sensor Connector End View - Upper Left

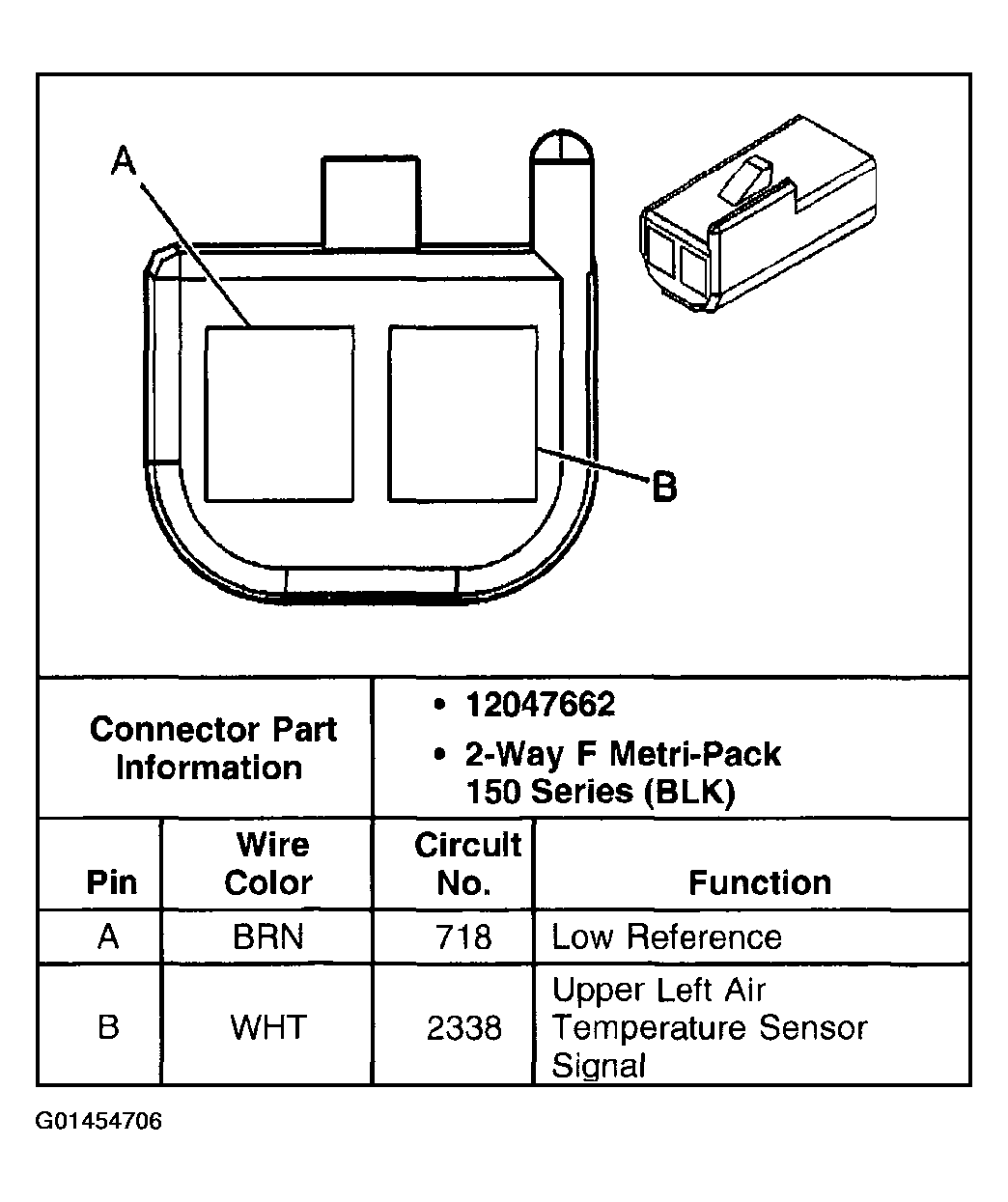

Fig 1: Air Temperature Sensor Connector End View - Upper Left
G01454706Courtesy of GENERAL MOTORS CORP.
