Installation Procedure

Lubricate the tie rod threads with chassis lubricant.
Install the tie rod end (4) to the shaft (6).
Install the outer tie rod ball stud (3) to the steering knuckle (1).

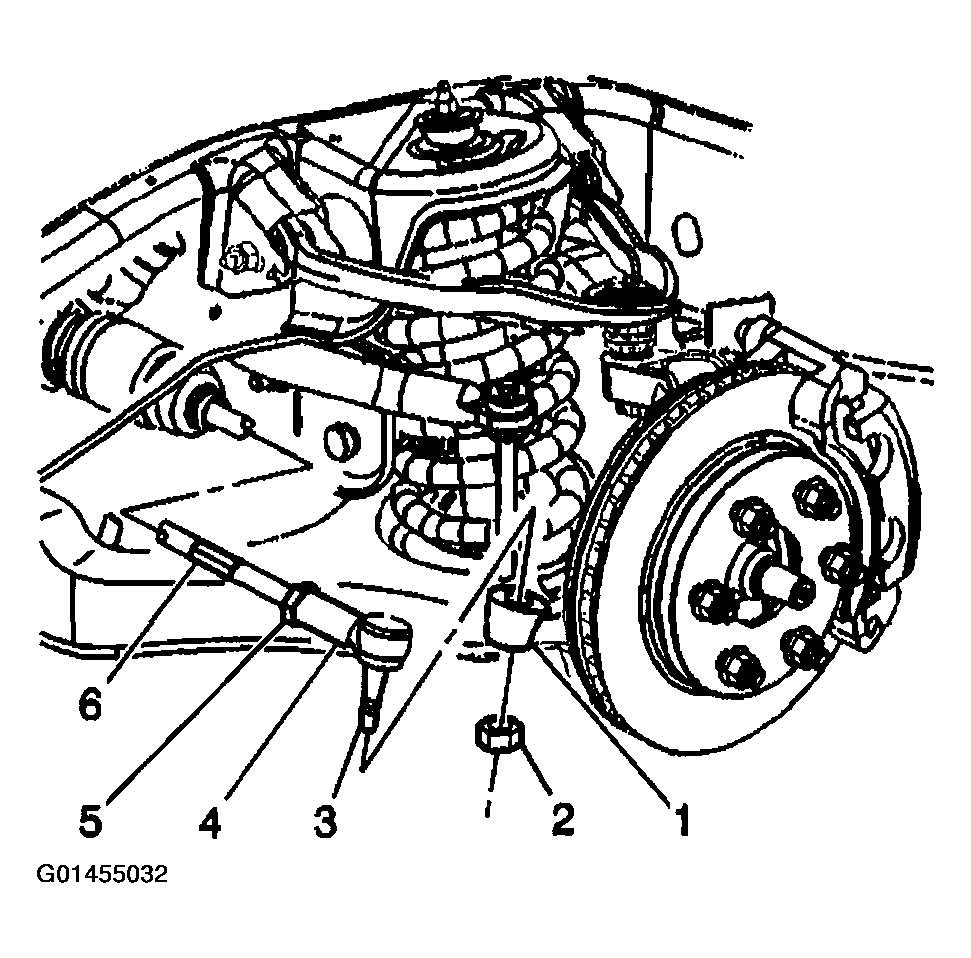

Fig 1: Installing Tie Rod End To Shaft
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Use the J 29194 in order to install the outer tie rod ball stud.
Tighten

Tighten the J 29194 to 54 N.m (40 lb ft) in order to seat the tapers.

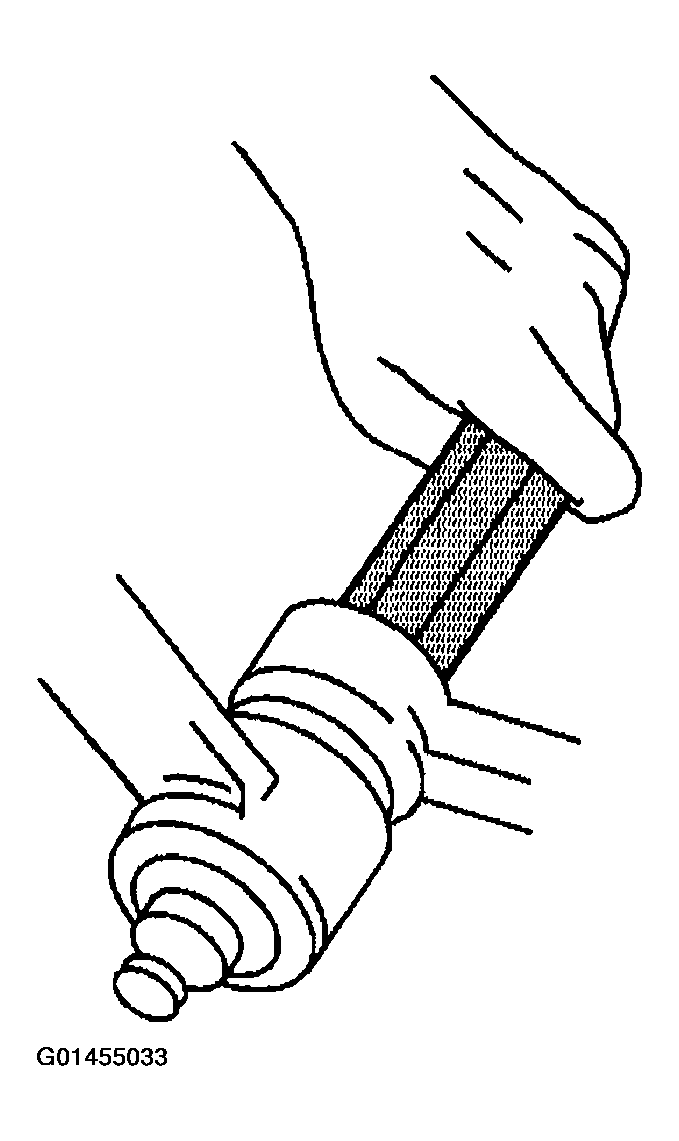

Fig 2: Installing Outer Tie Rod Ball Stud Using J 29194
Courtesy of GENERAL MOTORS CORP.
Install the new prevailing torque nut (2) to the outer rod ball stud (3).
Tighten

Tighten the nut to 65 N.m (48 lb ft).
Adjust the front toe. Refer to MEASURING WHEEL ALIGNMENT (WITH REAR WHEEL STEERING) or MEASURING WHEEL ALIGNMENT (WITHOUT REAR WHEEL STEERING) in Wheel Alignment.

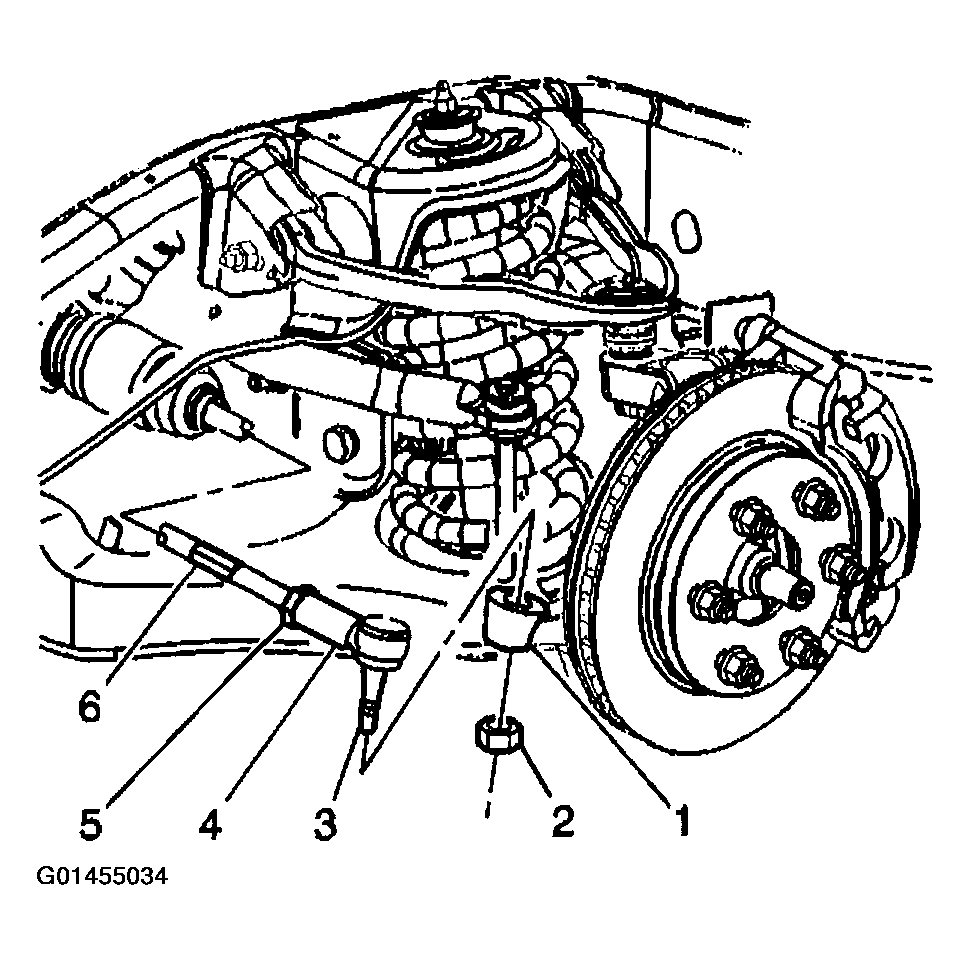

Fig 3: Installing Prevailing Torque Nut To Outer Rod Ball Stud
Courtesy of GENERAL MOTORS CORP.
