Transfer Case - NVG 149-NP (Unit Repair)
>>
Visual Identification
>>
Transfer Case Disassembled View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Transfer Case Disassembled View

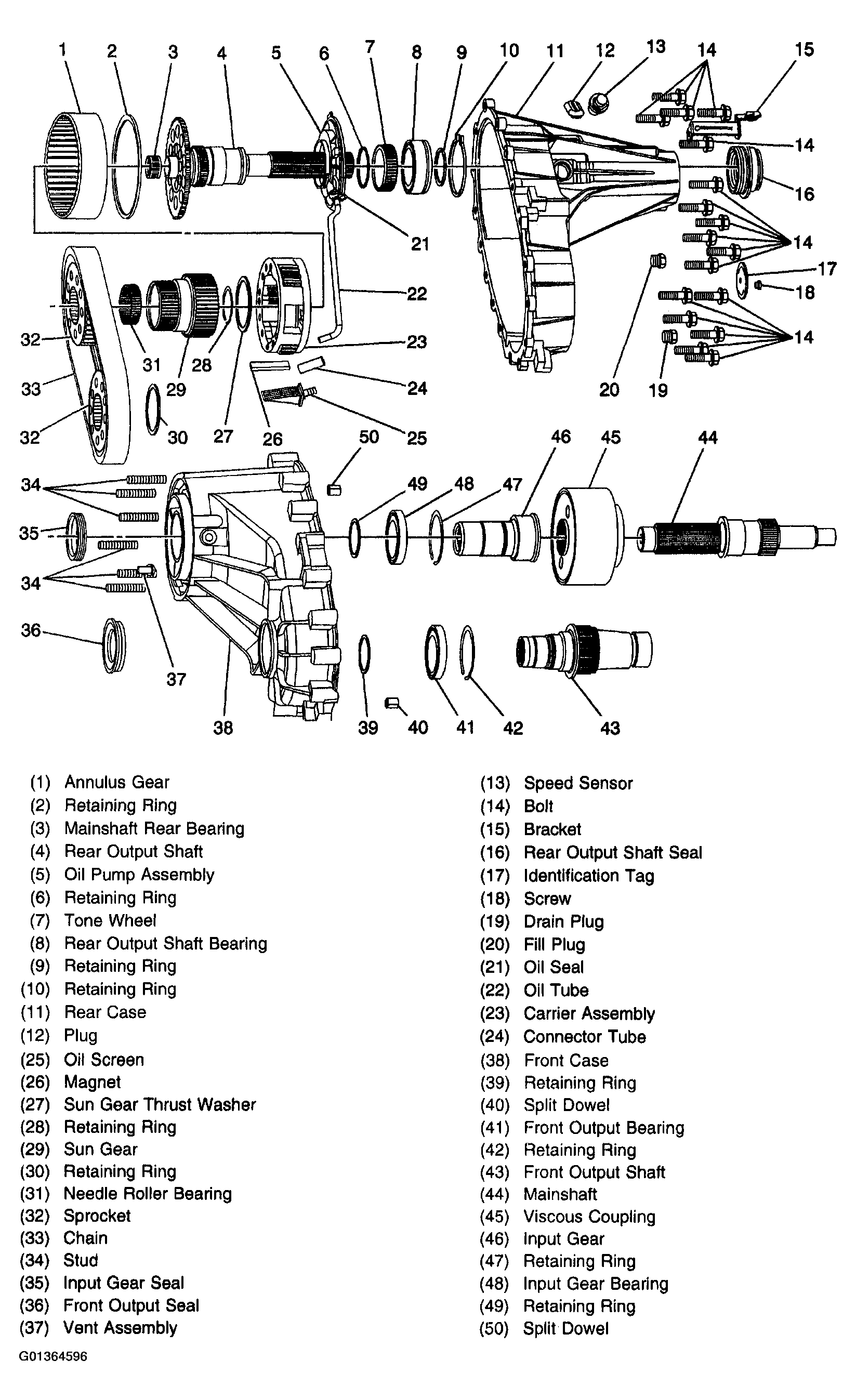

Fig 1: Exploded View Of Transfer Case Assembly
Courtesy of GENERAL MOTORS CORP.
