Electronic Brake Control Module - W/JL4
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Electronic Brake Control Module - W/JL4

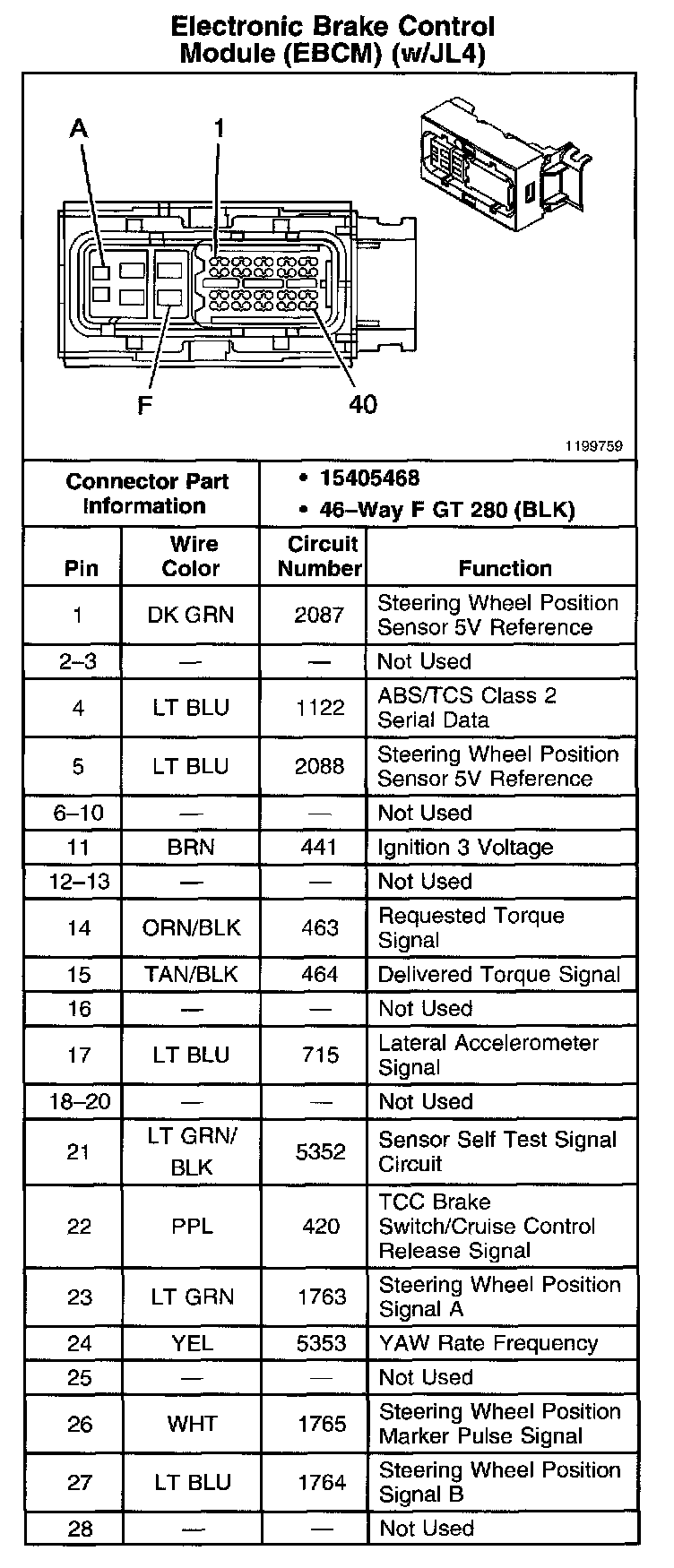

Electronic Brake Control Module (EBCM) (w/JL4) Pins 1 - 28:

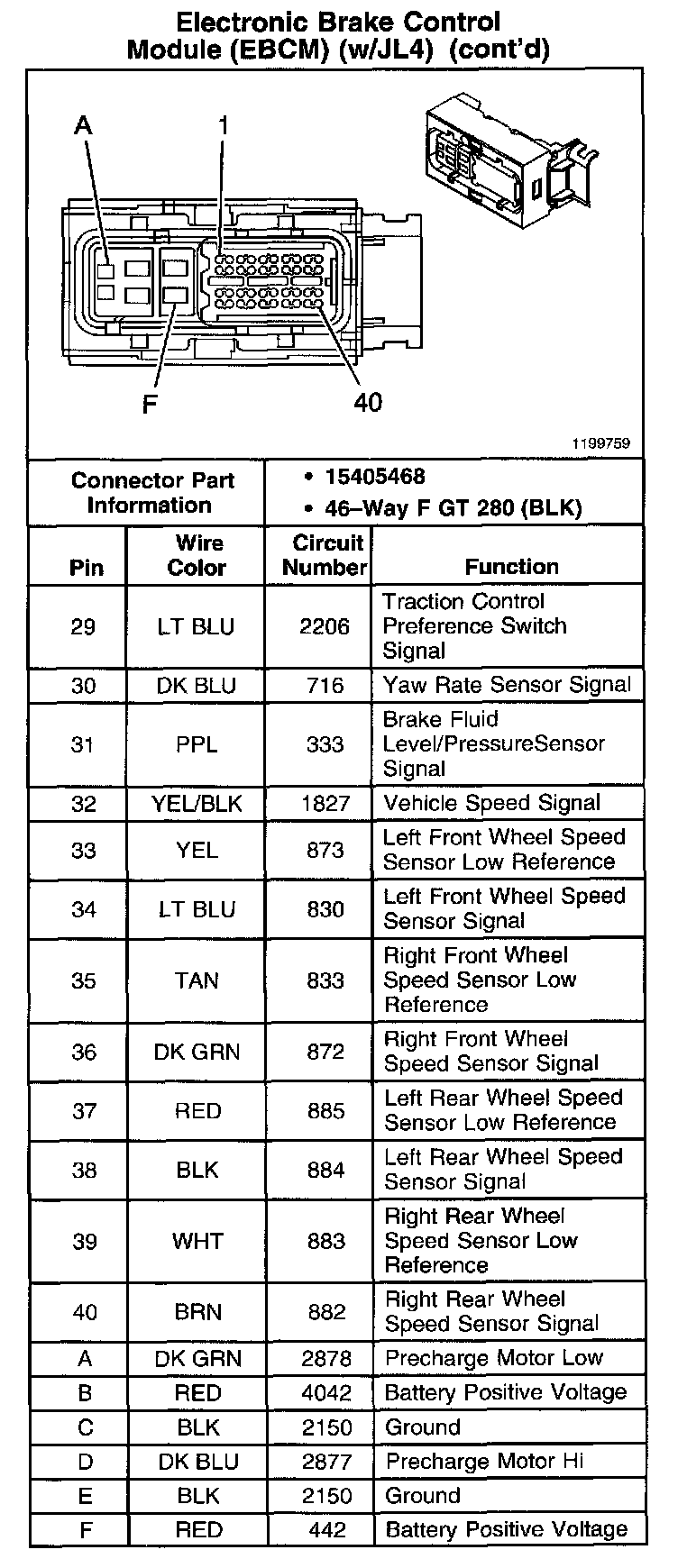

Electronic Brake Control Module (EBCM) (w/JL4) Continued Pins 29 - 40 & A - F:
