Throttle Position Sensor: Locations

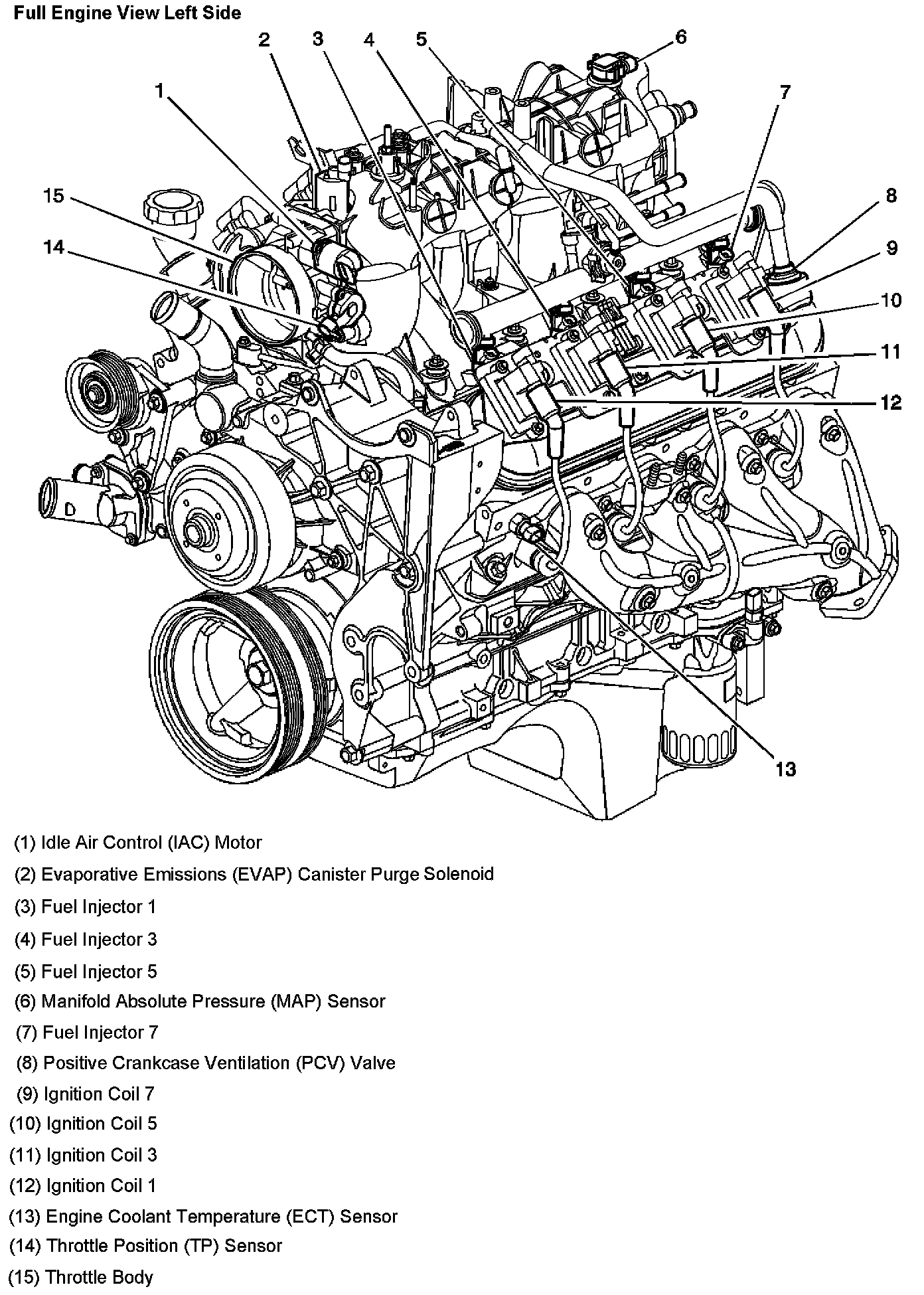

Full Engine View Left Side:

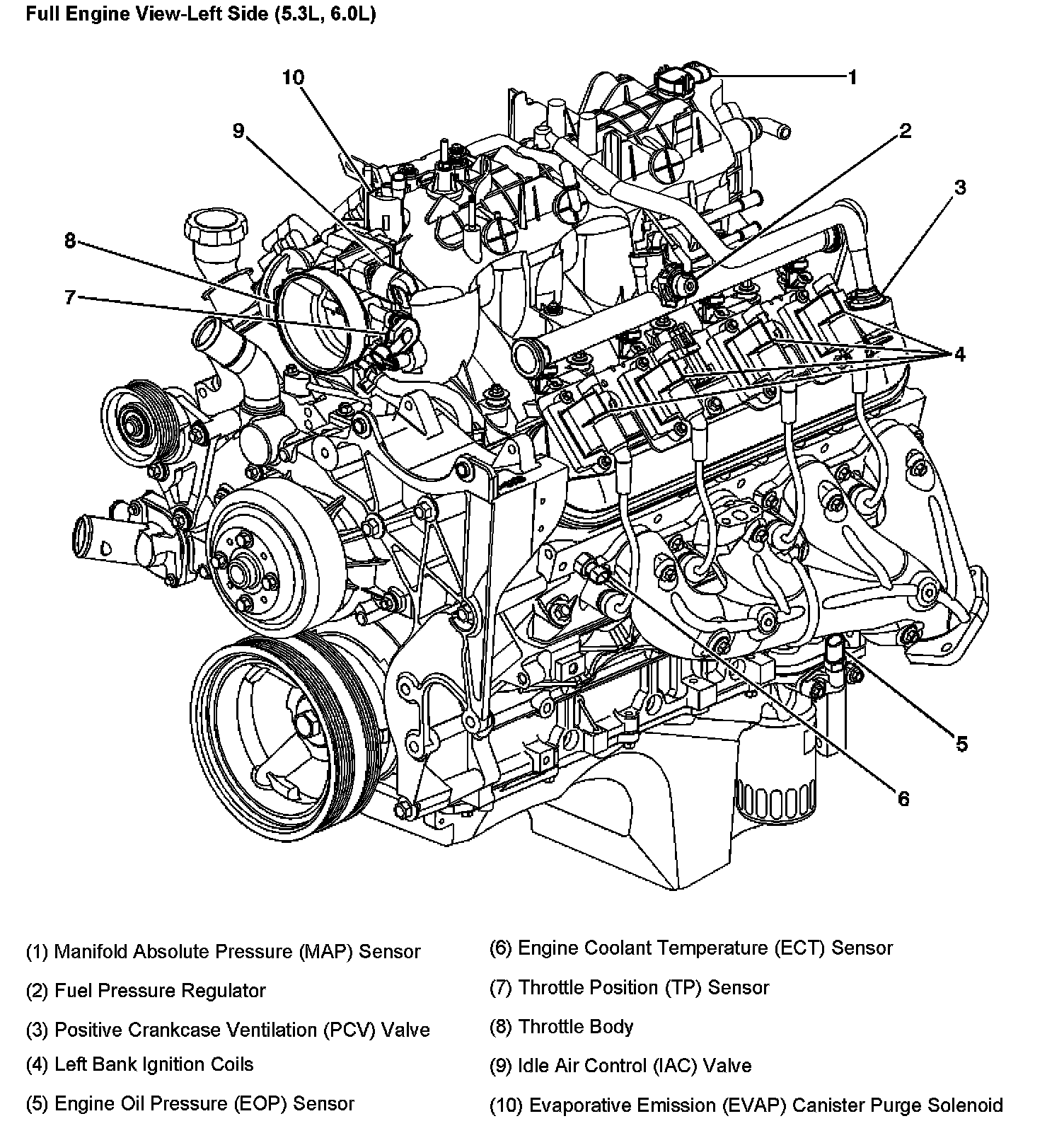

Full Engine View-Left Side:

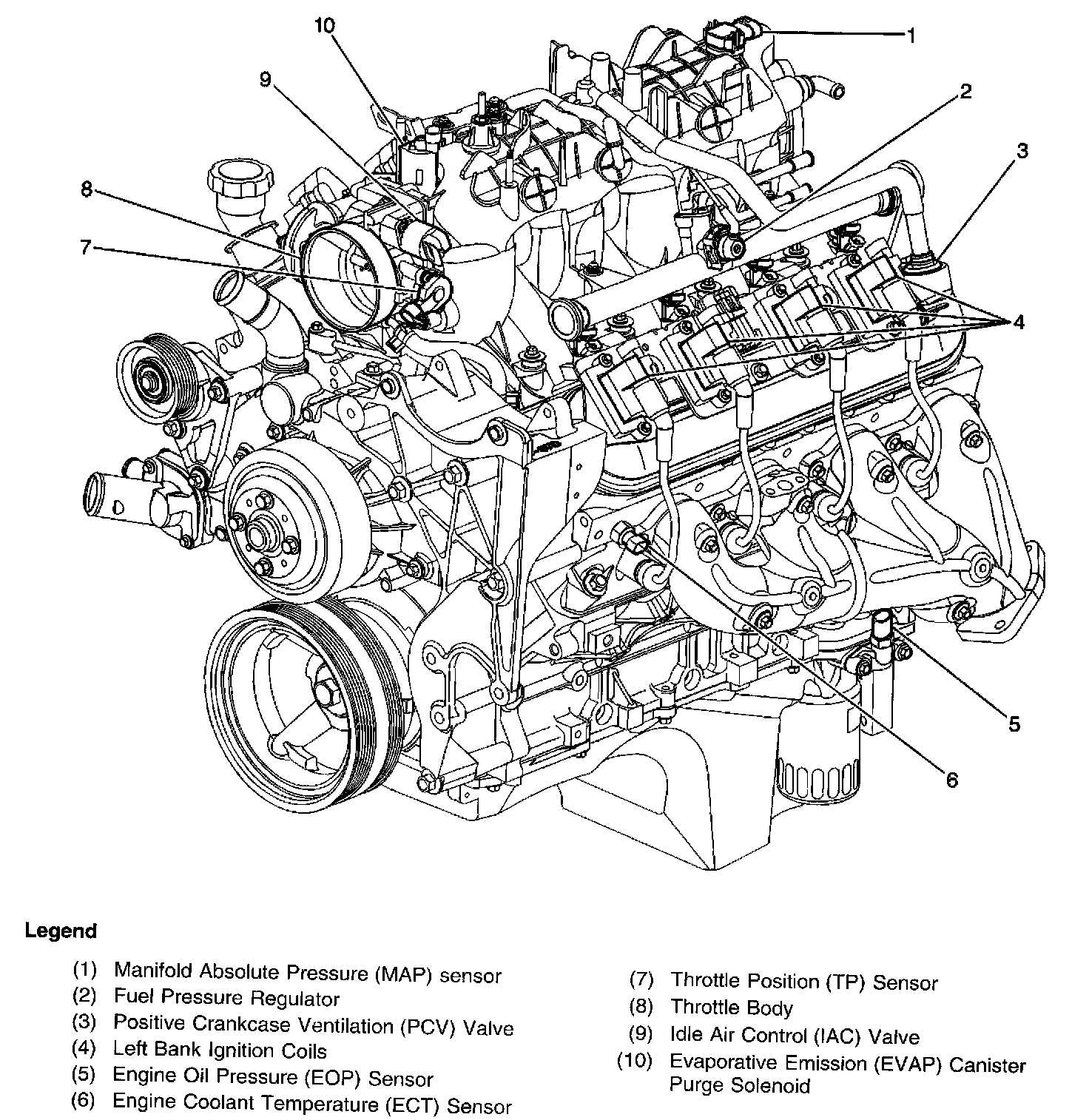

Left Side of the Engine Components:
