Memory Positioning Module: Diagrams

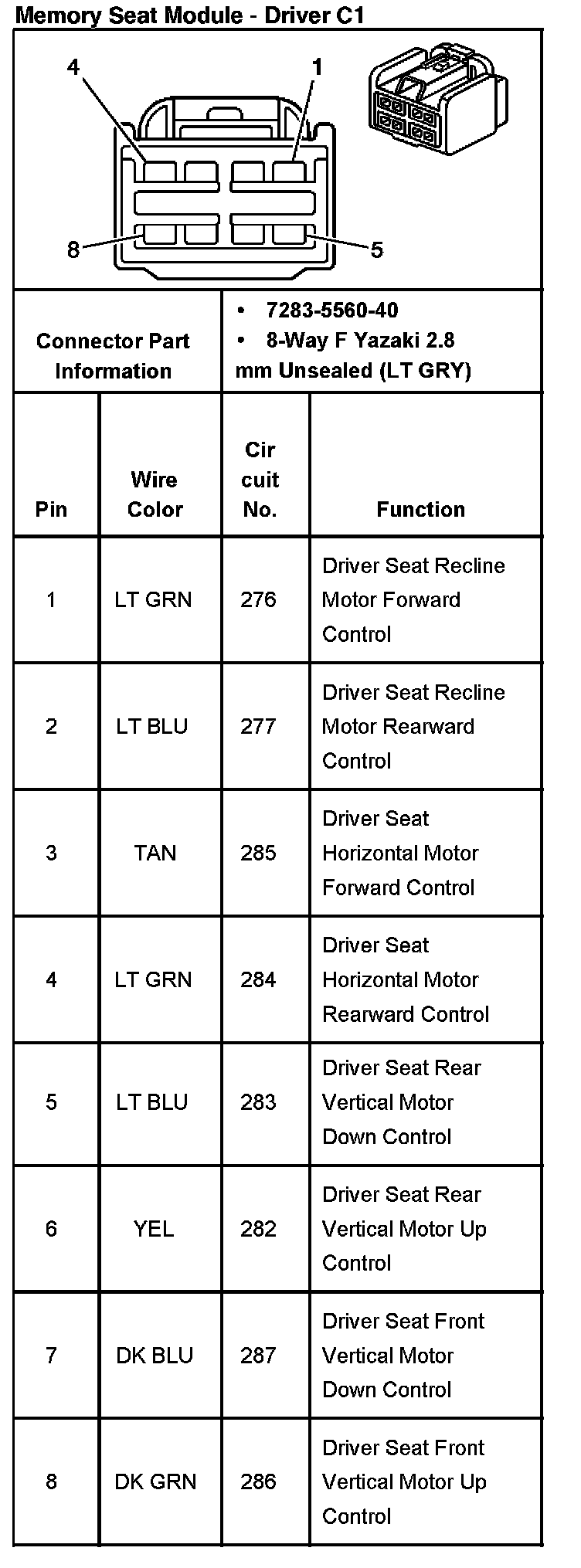

Memory Seat Module - Driver C1:

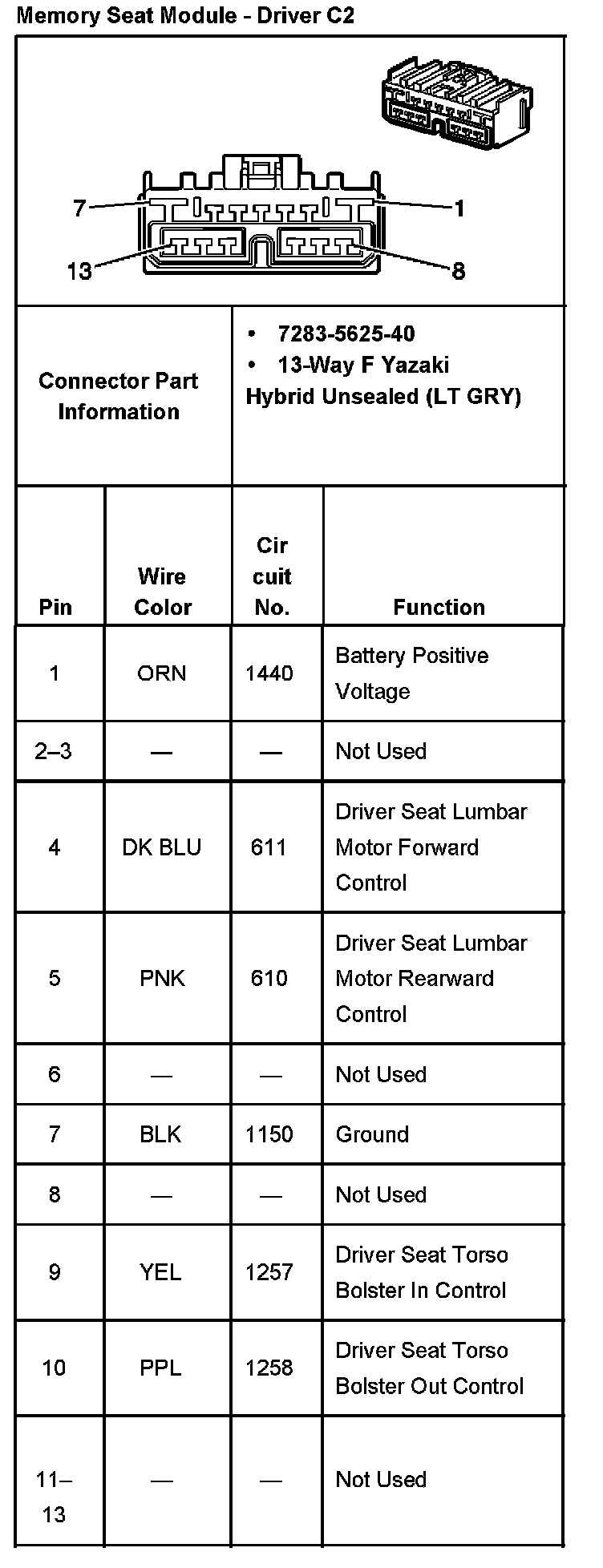

Memory Seat Module - Driver C2:

Memory Seat Module - Driver C3 Part 1:

Memory Seat Module - Driver C3 Part 2:

Memory Seat Module - Driver C3 Part 3:

Memory Seat Module - Driver C4 Part 1:

Memory Seat Module - Driver C4 Part 2:

Memory Seat Module - Driver C4 Part 3:
