Door Control Module Schematics (DDM Power, Grounds, Inputs, and Outputs)

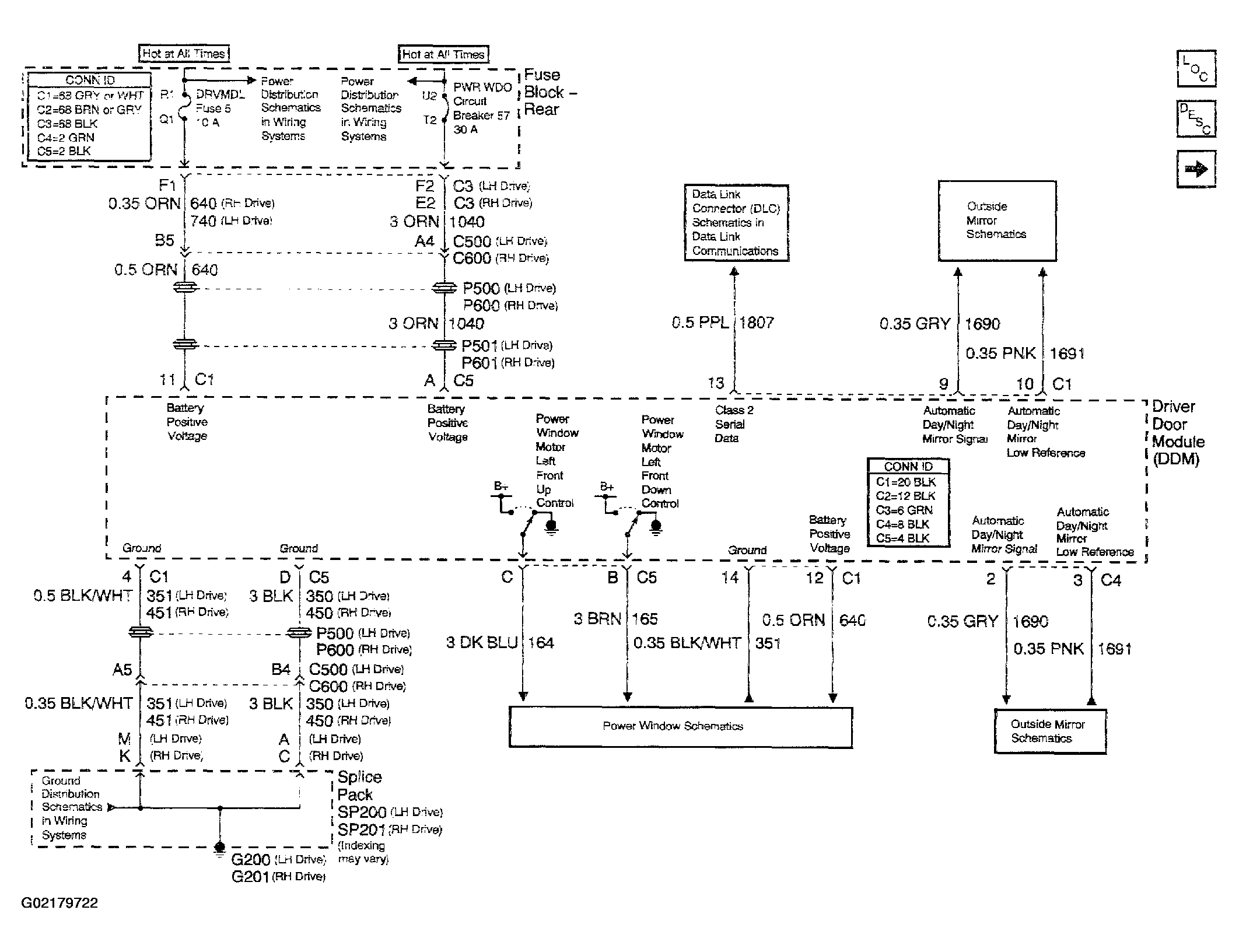

Fig 1: Door Control Module Schematics (DDM Power, Grounds, Inputs, And Outputs)
G02179722Courtesy of GENERAL MOTORS CORP.
