Installation Procedure

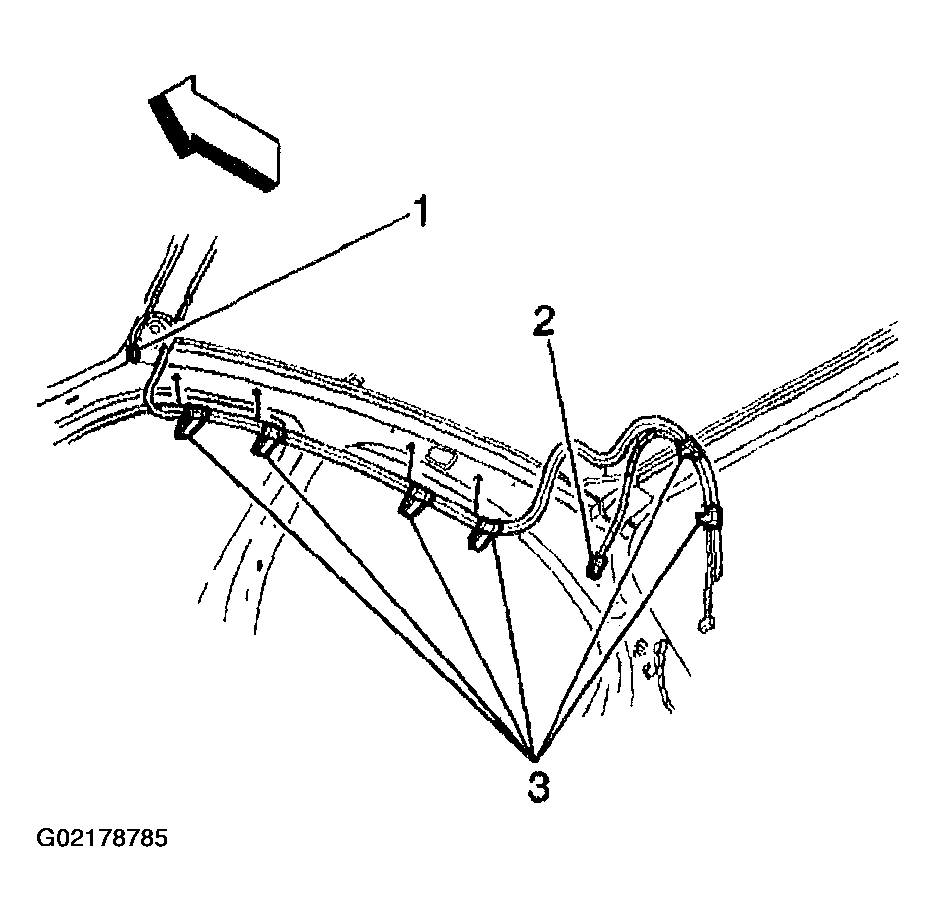

- If the antenna cable is to being replaced, install the antenna cable clips (3) from the antenna cable being removed from the vehicle to the new antenna cable.
- Install the antenna cable to the roof beams with the clips (3).
Courtesy of GENERAL MOTORS CORP.
- Install the antenna connection (1) at the front of the vehicle.
Courtesy of GENERAL MOTORS CORP.
- Connect the antenna cable (2) to the antenna module, at the rear of the vehicle.
Courtesy of GENERAL MOTORS CORP.
- Install the headliner. Refer to HEADLINER REPLACEMENT (W/O CF5)
or HEADLINER REPLACEMENT (W/ CF5)
in Interior Trim.
- Install the sail panel. Refer to SAIL PANEL REPLACEMENT
in Interior Trim.
- Install the center pillar trim panel. Refer to INTERIOR TRIM
in Interior Trim.
- Install the windshield garnish molding. Refer to INTERIOR TRIM
in Interior Trim.
