Installation Procedure

  1. Install the heated seat module to the seat back.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

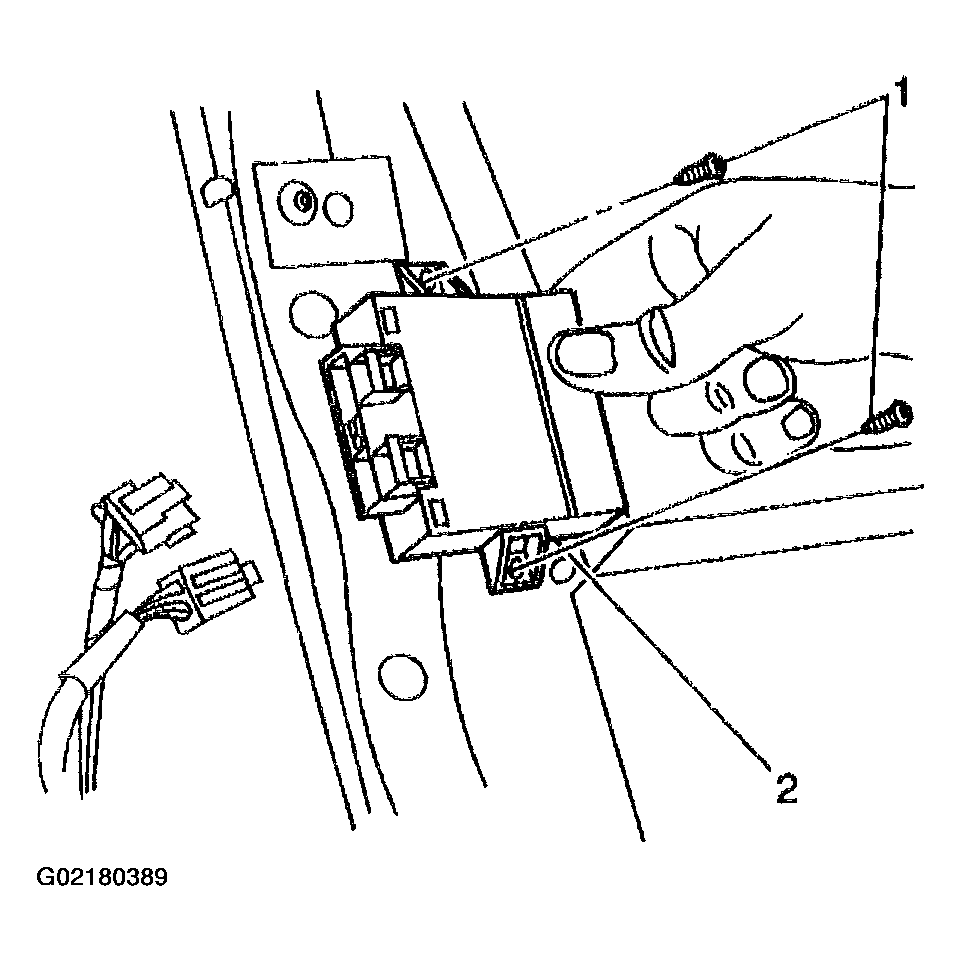

    Fig 1: Installing Heated Seat Control Module, Fasteners & Electrical Connectors
    G02180389Courtesy of GENERAL MOTORS CORP.
  2. Install the heated seat module fasteners (1).
  3. Connect the heated seat module electrical connections.
  4. Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR   .
