Removal Procedure

CAUTION: Refer to SIR CAUTION in Cautions and Notices.
  1. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR   .
  2. Disconnect the electrical connectors to the heated seat module.

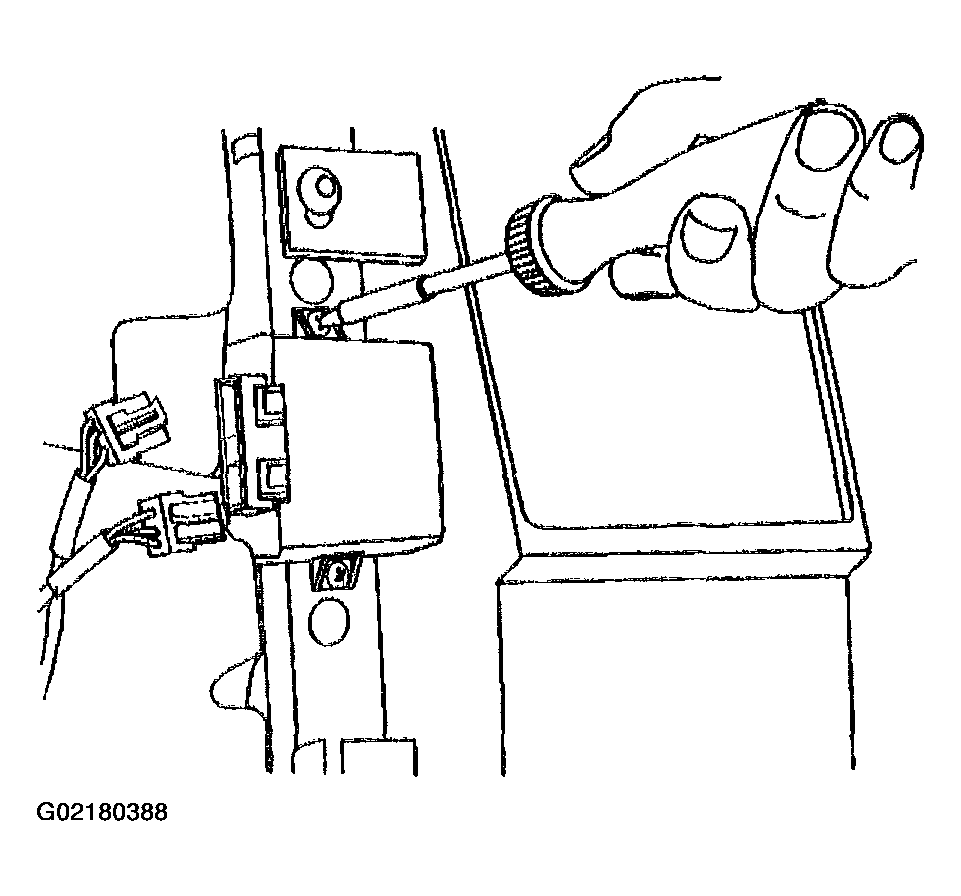

    Fig 1: Removing Heated Seat Control Module, Fasteners & Electrical Connectors
    G02180388Courtesy of GENERAL MOTORS CORP.
  3. Remove the fasteners from the heated seat control module.
  4. Remove the rear heated seat module from the seat back.
