Installation Procedure

  1. Connect the electrical connectors to the switches.
  2. Install the lumbar switch to the seat switch mounting bracket.

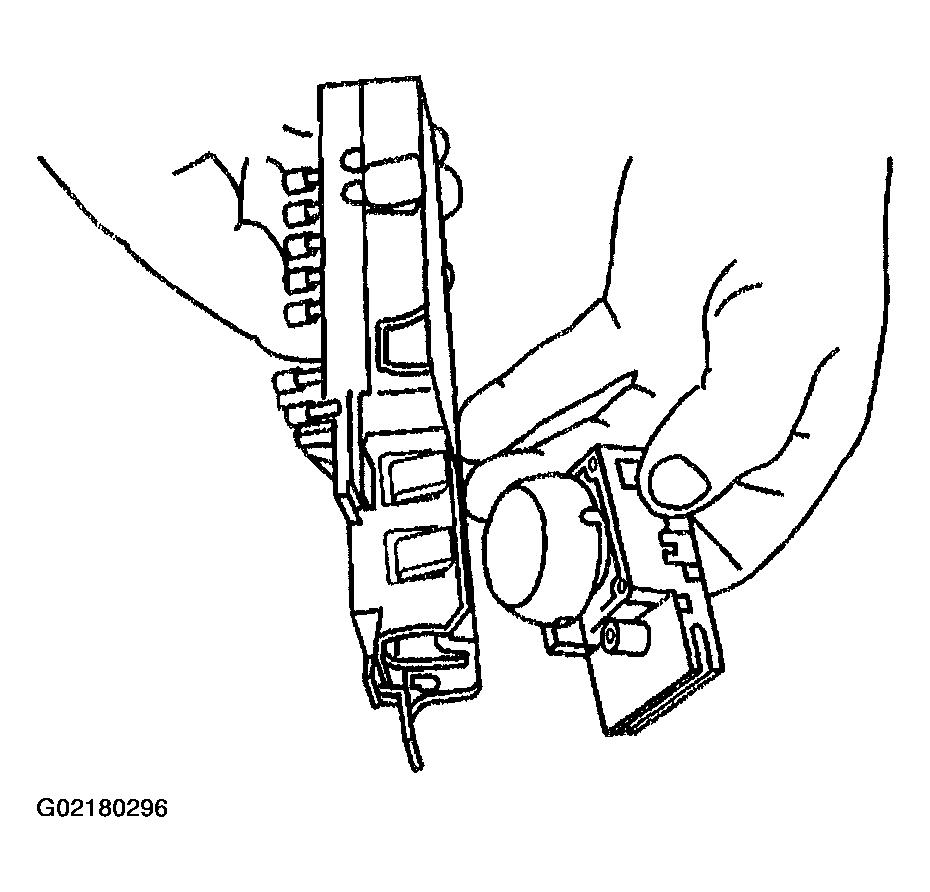

    Fig 1: Installing Lumbar Switch To Seat Switch Mounting Bracket
    G02180296Courtesy of GENERAL MOTORS CORP.
  3. Install the seat switches to the seat bottom frame.

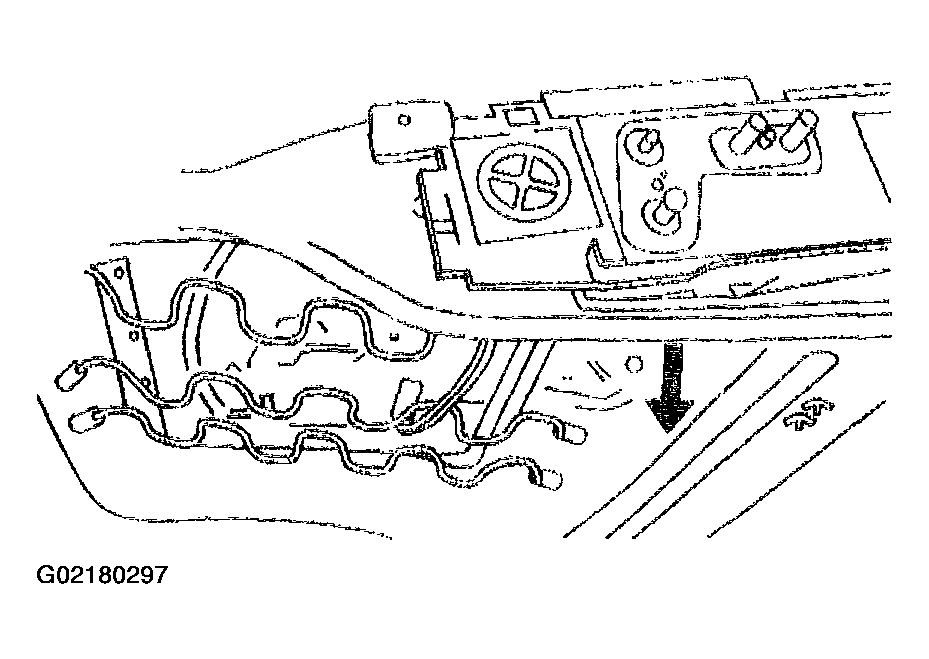

    Fig 2: Installing Seat Switches To Seat Bottom Frame
    G02180297Courtesy of GENERAL MOTORS CORP.
  4. Install the switch bracket retainers into the seat bottom frame.

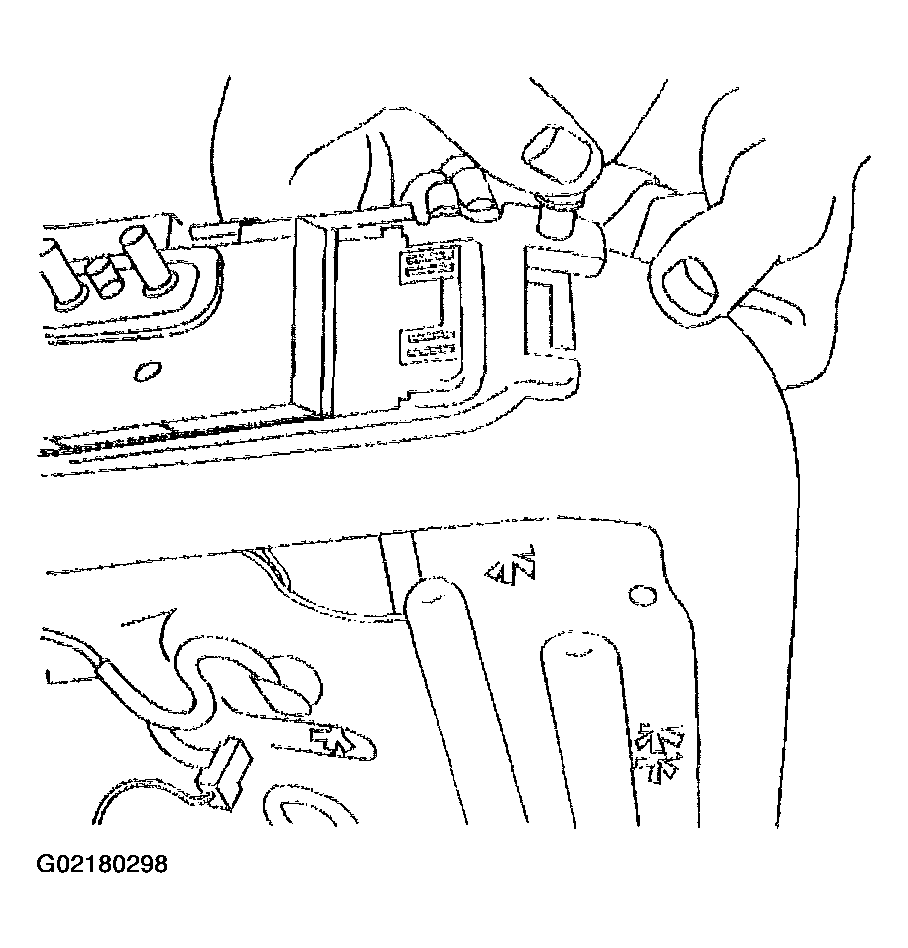

    Fig 3: Installing Switch Bracket Retainers Into Seat Bottom Frame
    G02180298Courtesy of GENERAL MOTORS CORP.
  5. Pull the seat cover back down over the switch and align holes in the cover to the switch assembly.

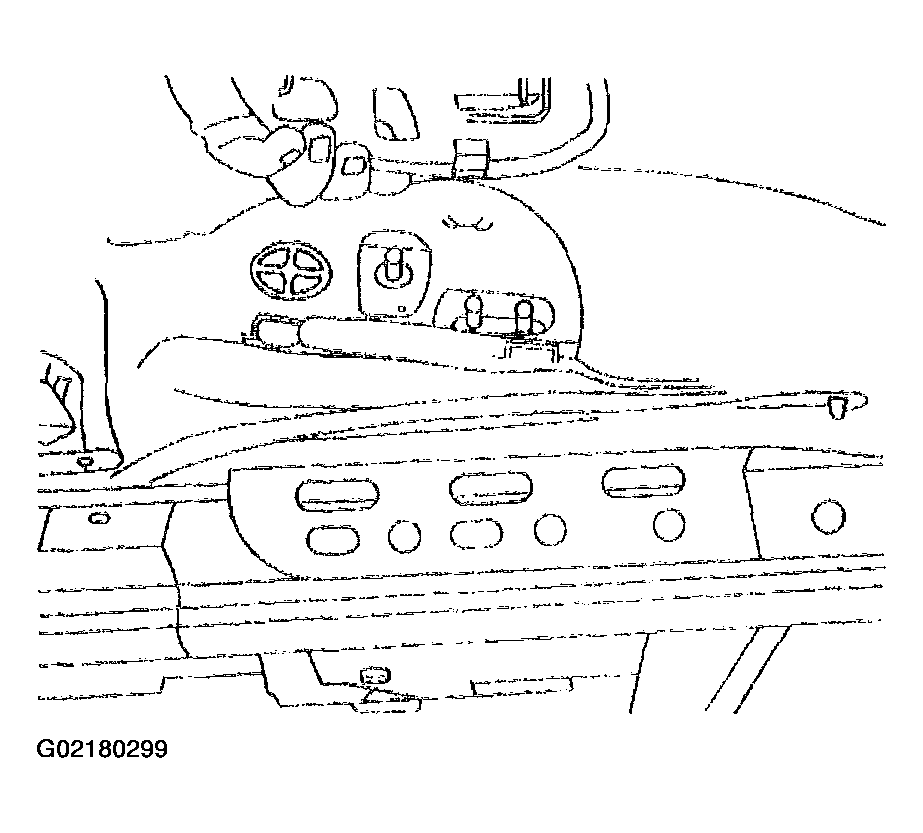

    Fig 4: Aligning Holes In Cover To Switch Assembly
    G02180299Courtesy of GENERAL MOTORS CORP.
  6. Install the seat cushion assembly (1) to the seat riser.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  7. Install the front fasteners (2) to the seat cushion assembly (1).

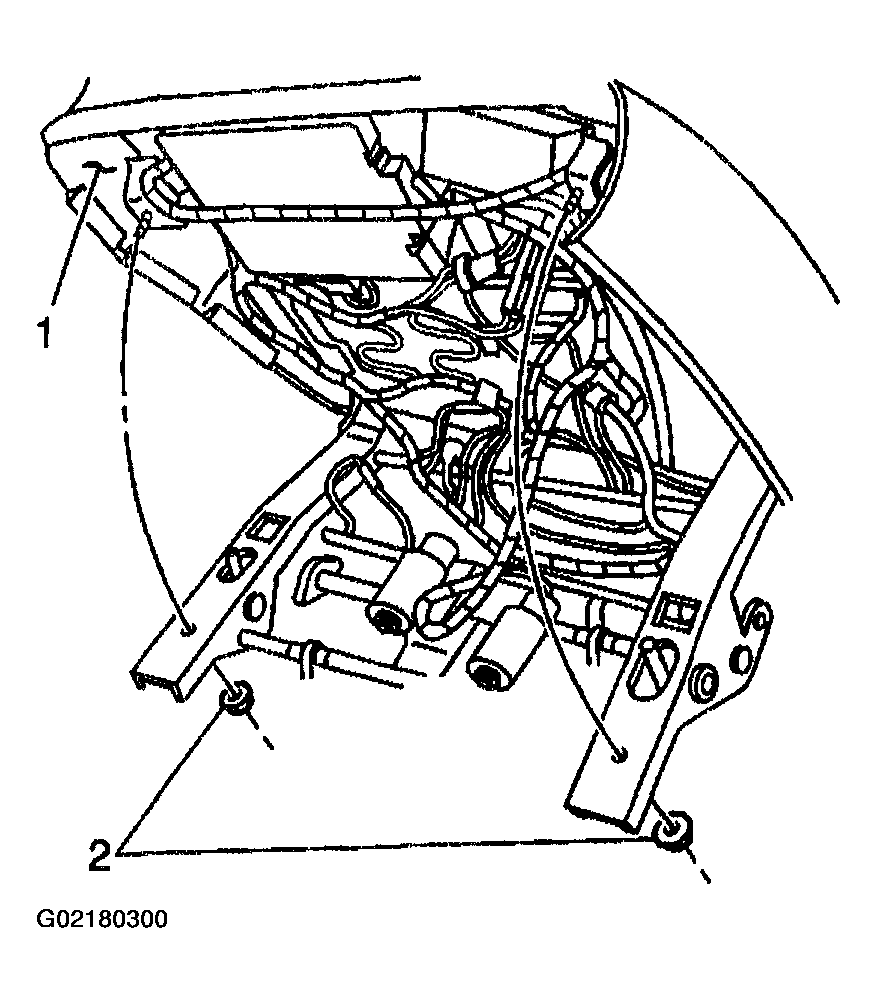

    Fig 5: Installing Front Fasteners To Seat Cushion Assembly
    G02180300Courtesy of GENERAL MOTORS CORP.
  8. Adjust the front seat assembly up and forward in order to access the fasteners (1) at the rear of the front seat cushion assembly
  9. Install the seat cushion assembly rear fasteners (1) to the seat cushion assembly.

    Tighten

    Tighten the rear seat cushion assembly fasteners to 9 N.m (80 lb in).

  10. Angle the front of the front seat cushion up, in order to access the front seat cushion assembly fasteners.

    Tighten

    Tighten the seat cushion assembly fasteners, on the front of the cushion assembly to 9 N.m (80 lb in).

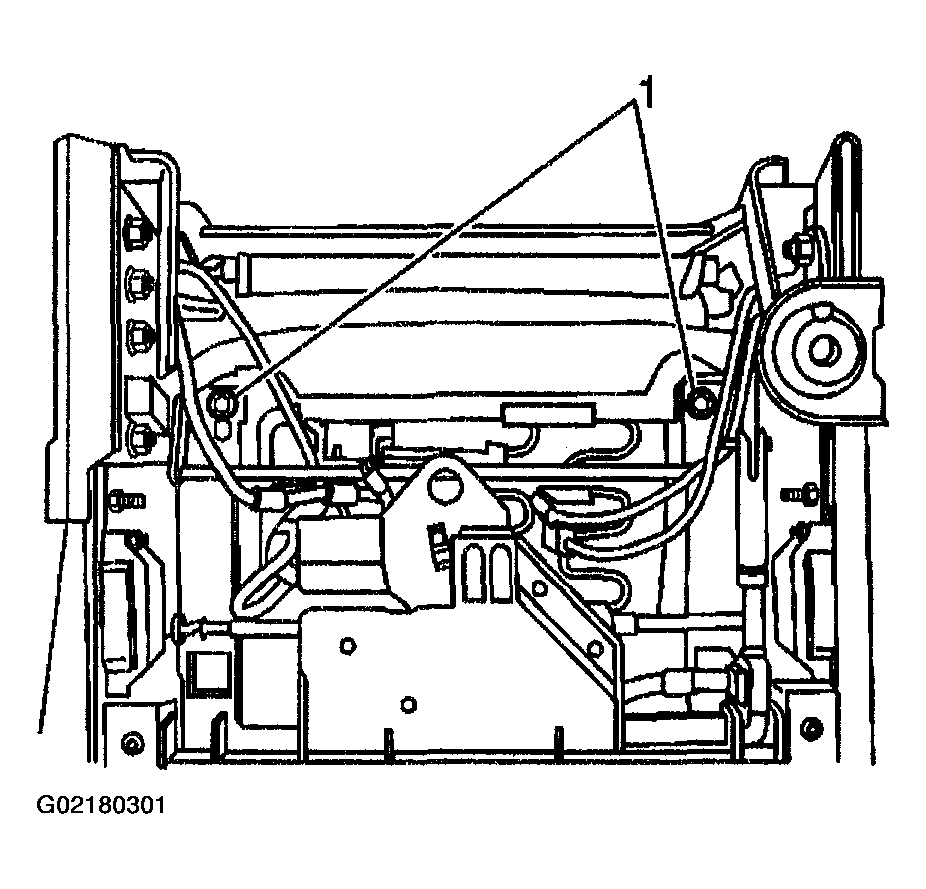

    Fig 6: Locating Seat Cushion Assembly Rear Fasteners
    G02180301Courtesy of GENERAL MOTORS CORP.
  11. Install the switch trim plate bezel.
  12. Install the knobs (5, 6) to the switches.

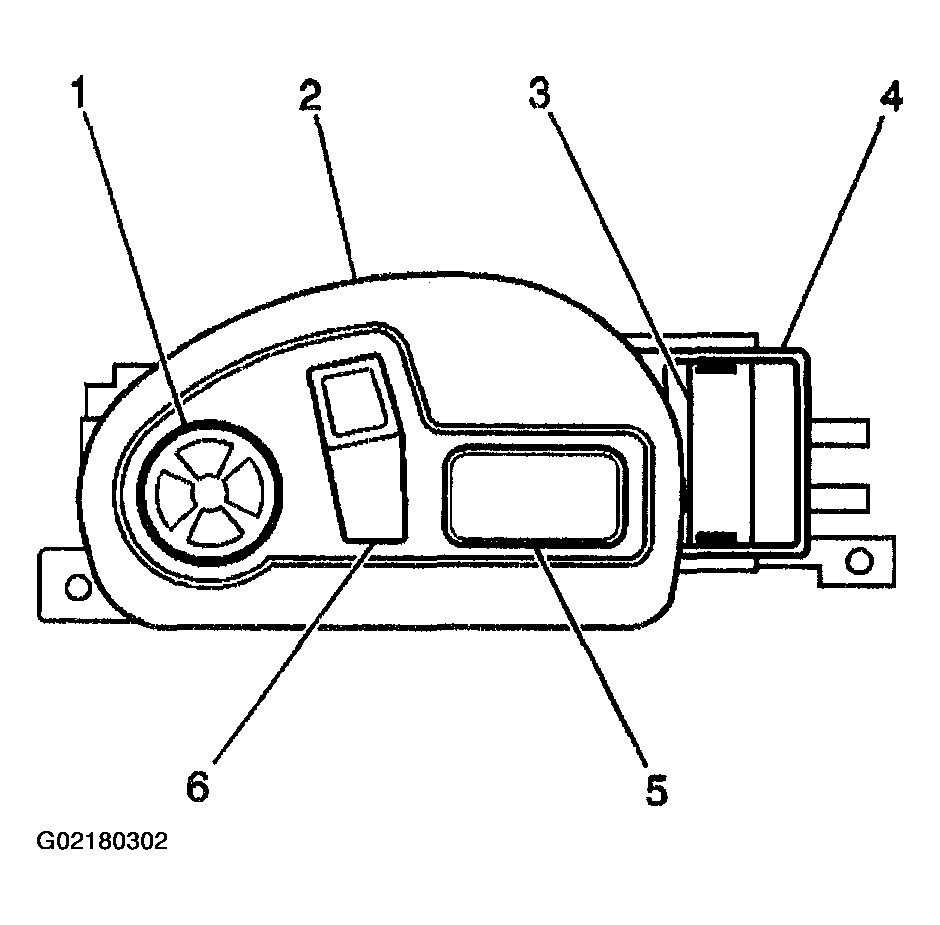

    Fig 7: Identifying Lumbar Switch Assembly
    G02180302Courtesy of GENERAL MOTORS CORP.
  13. Enable the SIR System. Refer to ZONE 7 or ZONE 9 in Air Bag Restraint Systems.
