Installation Procedure

Install the recliner sensor to the recliner motor. The recliner sensor snaps onto the recliner motor.

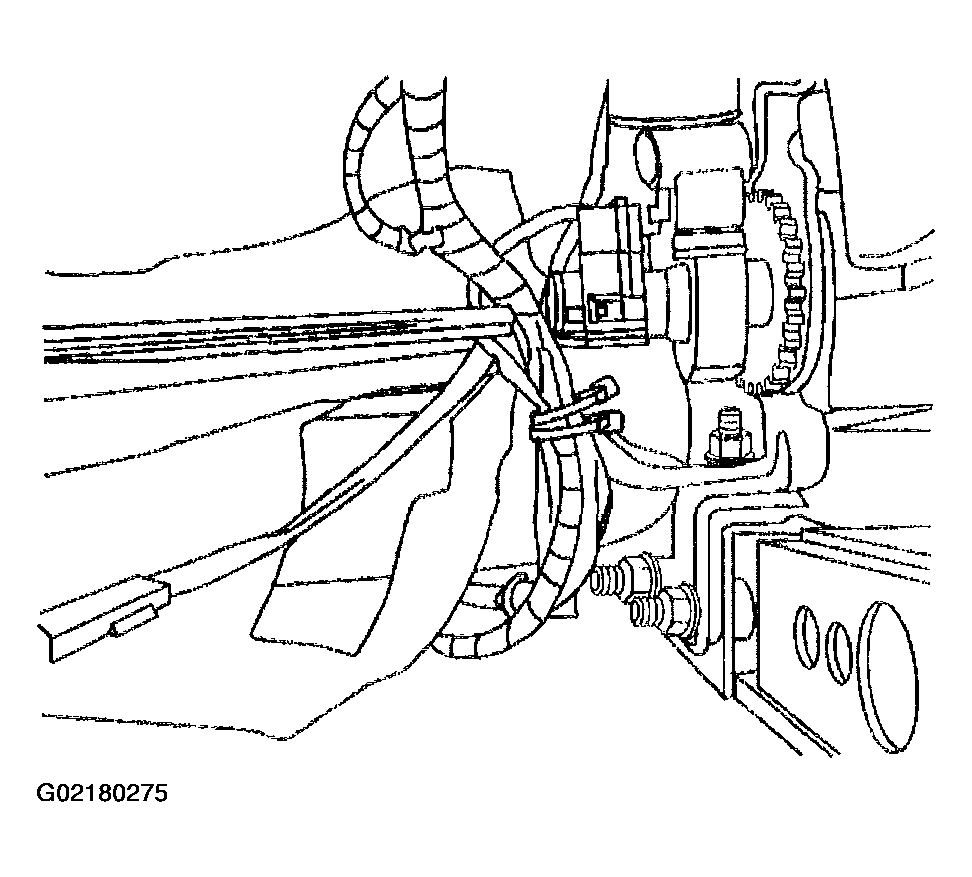

Fig 1: Identifying Recliner Motor Electrical Connector & Sensor

Courtesy of GENERAL MOTORS CORP.

Slide recliner shaft back through the recliner sensor and recliner motor.
Install the retaining clip to the recliner shaft.

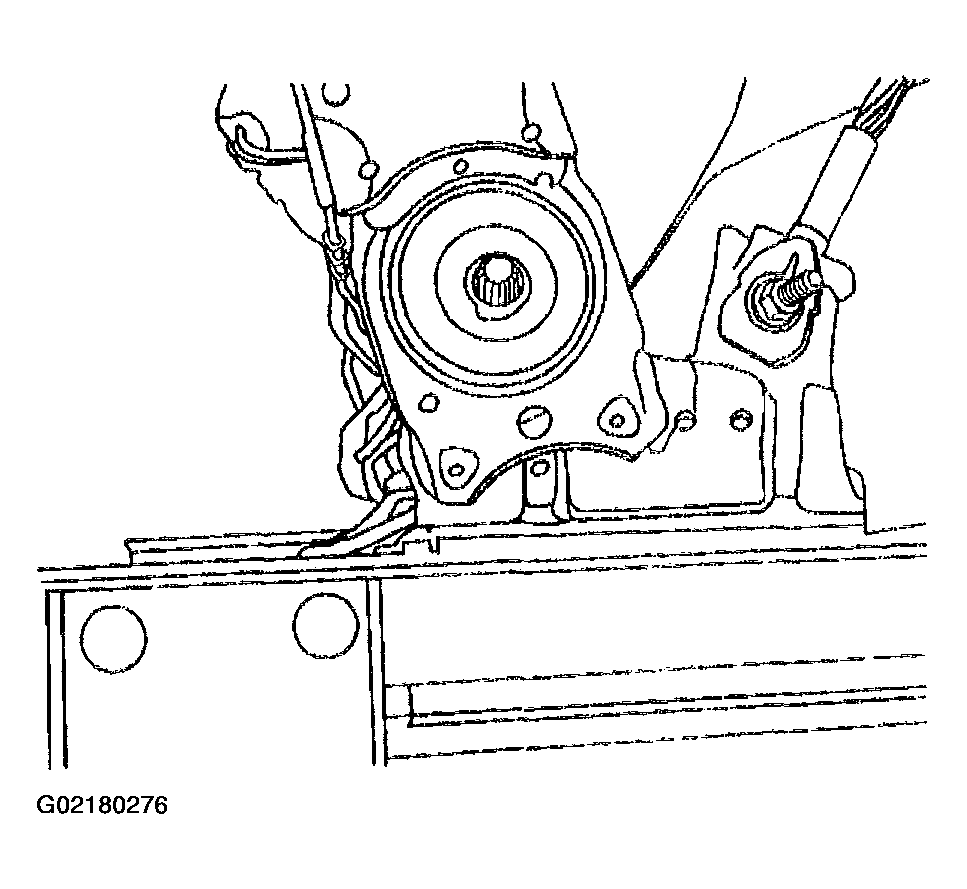

Fig 2: Locating Retaining Clip To Recliner Shaft
Courtesy of GENERAL MOTORS CORP.
Connect the recliner motor electrical connector.
Install the seat back trim cover. Refer to SEAT BACK COVER AND PAD REPLACEMENT - FRONT .
Install the front bucket seat. Refer to SEAT REPLACEMENT - FRONT BUCKET .
Enable the SIR System. Refer to ZONE 7 or ZONE 9 in Air Bag Restraint Systems.
