Yaw Rate Sensor

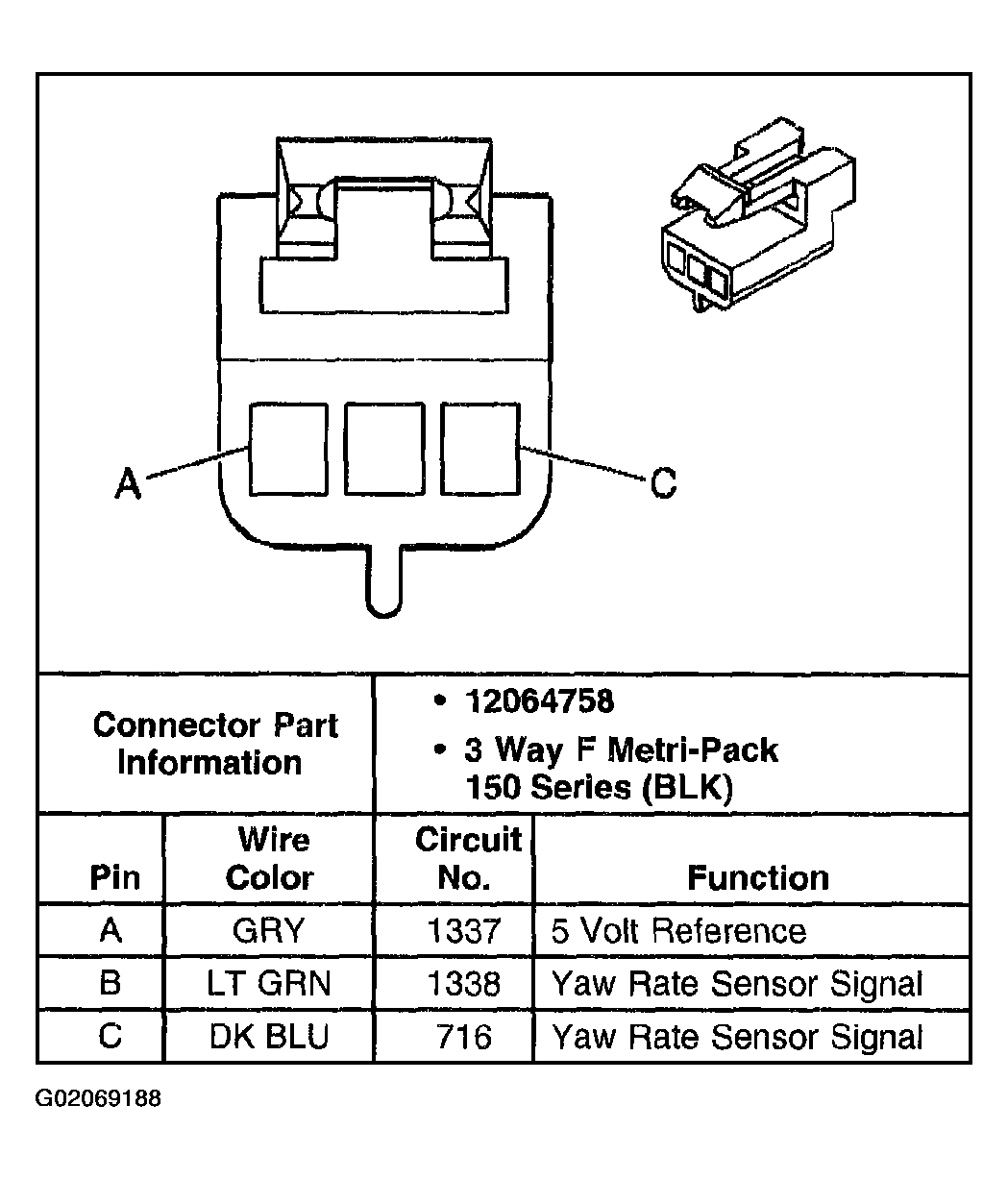

Fig 1: Identifying Yaw Rate Sensor Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
